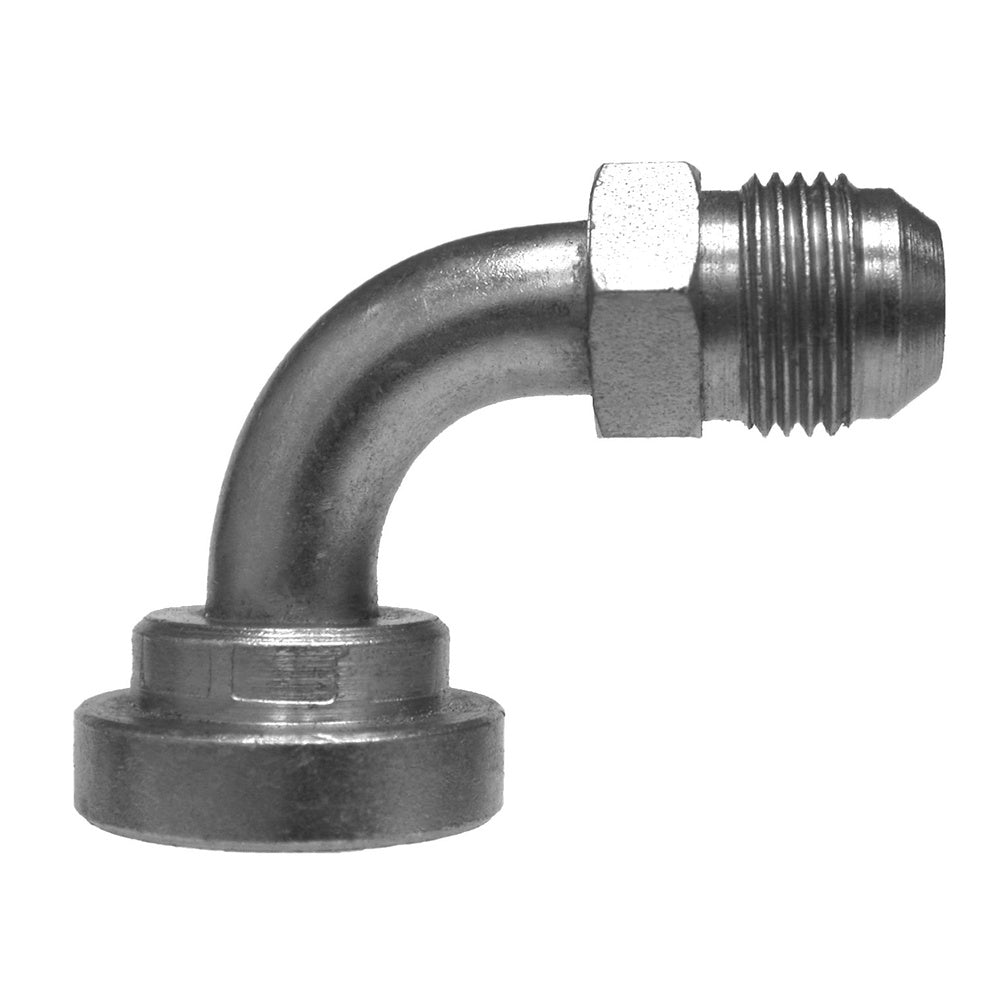

1804 Series – MJIC to C.62 Flange Elbow in steel. 14 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 90-deg Elbow
Connection Type: MJIC|C62 Flange
Series: 1804
Configuration: 1804 Series – MJIC to C.62 Flange Elbow
Product line: Steel Flange Fittings
Stocked part numbers: 14
Part numbers & options
Part #
Size
Pack quantities
18041212
3/4" Male JIC × 3/4" Code 62 Flange
Case 40
18041216
1-1/16" Male JIC × 1" Code 62 Flange
—
18041220
3/4" Male JIC × 1-1/4" Code 62 Flange
Case 32
18041612
1" Male JIC × 3/4" Code 62 Flange
—
18041616
1" Male JIC × 1" Code 62 Flange
Case 26
18041620
1" Male JIC × 1-1/4" Code 62 Flange
Case 22
18041624
1" Male JIC × 1-1/2" Code 62 Flange
—
18042016
1-1/4" Male JIC × 1" Code 62 Flange
—
18042020
1-1/4" Male JIC × 1-1/4" Code 62 Flange
—
18042024
1-1/4" Male JIC × 1-1/2" Code 62 Flange
—
18042420
1-1/2" Male JIC × 1-1/4" Code 62 Flange
—
18042424
1-1/2" Male JIC × 1-1/2" Code 62 Flange
—
18043232
2" Male JIC × 2" Code 62 Flange
—
180488
1/2" Male JIC × 1/2" Code 62 Flange
Case 90
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
