D6500 Series – DIN to Female DIN Swivel Elbow in steel. 19 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 90-deg Elbow
Connection Type: MBT|FMS
Dimension Standards: DIN 2353, ISO 8434-1
Series: D6500
Finish: Trivalent Chromium Zinc-Plated
Configuration: D6500 Series – DIN to Female DIN Swivel Elbow
Product line: Steel Metric Compression Fittings
Stocked part numbers: 19
Part numbers & options
Part #
Size
Pack quantities

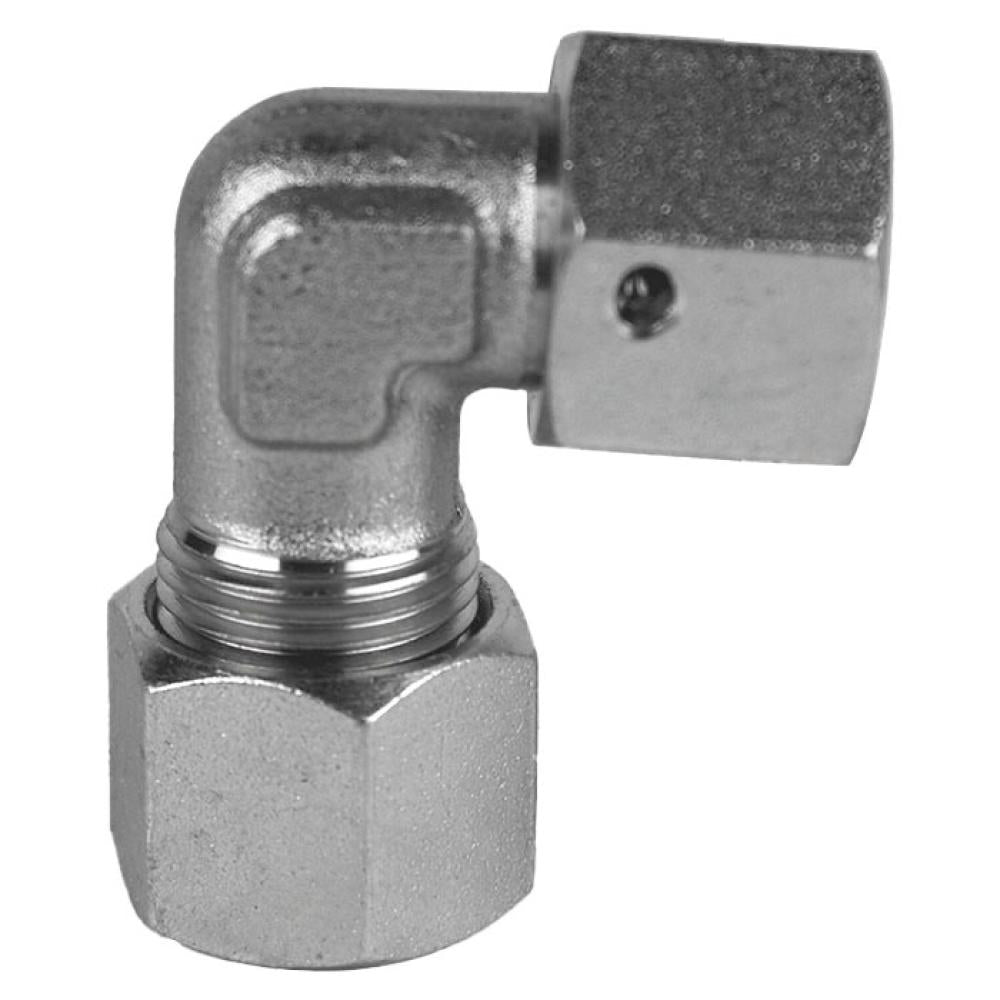

D6500-L08-L08
L08 Metric Bite Type × L08 Female Metric Swivel
Case 350
D6500-L10-L10
L10 Metric Bite Type × L10 Female Metric Swivel
Case 250
D6500-L12-L12
L12 Metric Bite Type × L12 Female Metric Swivel
Case 200
D6500-L15-L15
L15 Metric Bite Type × L15 Female Metric Swivel
—
D6500-L18-L18
L18 Metric Bite Type × L18 Female Metric Swivel
Case 80
D6500-L22-L22
L22 Metric Bite Type × L22 Female Metric Swivel
Case 48
D6500-L28-L28
L28 Metric Bite Type × L28 Female Metric Swivel
Case 42
D6500-L35-L35
L35 Metric Bite Type × L35 Female Metric Swivel
Case 24
D6500-L42-L42
L42 Metric Bite Type × L42 Female Metric Swivel
Case 14
D6500-S06-S06
S06 Metric Bite Type × S06 Female Metric Swivel
Case 330
D6500-S08-S08
S08 Metric Bite Type × S08 Female Metric Swivel
—
D6500-S10-S10
S10 Metric Bite Type × S10 Female Metric Swivel
Case 200
D6500-S12-S12
S12 Metric Bite Type × S12 Female Metric Swivel
Case 150
D6500-S14-S14
S14 Metric Bite Type × S14 Female Metric Swivel
Case 100
D6500-S16-S16
S16 Metric Bite Type × S16 Female Metric Swivel
Case 75
D6500-S20-S20
S20 Metric Bite Type × S20 Female Metric Swivel
Case 50
D6500-S25-S25
S25 Metric Bite Type × S25 Female Metric Swivel
Case 24
D6500-S30-S30
S30 Metric Bite Type × S30 Female Metric Swivel
Case 21
D6500-S38-S38
S38 Metric Bite Type × S38 Female Metric Swivel
Case 12
