FS6801-NWO Series – MORFS to Male Adjustable O-Ring Elbow in steel. 17 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Material Construction: Steel
Fitting Type: 90 deg Elbow
Operating Temperature: 375 deg F
Configuration: FS6801-NWO Series – MORFS to Male Adjustable O-Ring Elbow
Product line: Steel O-Ring Face Seal Adapters
Stocked part numbers: 17
Part numbers & options
Part #
Size
Pack quantities
FS68011010
1" Male ORFS × 7/8" Male ORB
Case 100
FS68011012
1" Male ORFS × 1-1/16" Male ORB
Case 55
FS68011210
3/4" Male ORFS × 5/8" Male ORB
Box 60, Case 60
FS68011212
1-3/16" Male ORFS × 1-1/16" Male ORB
Case 55
FS68011216
3/4" Male ORFS × 1" Male ORB
Case 30
FS68011612
1-7/16" Male ORFS × 1-1/16" Male ORB
—
FS68011616
1" Male ORFS × 1" Male ORB
—
FS68012016
1-1/4" Face Seal × 1" Male ORB
Box 32, Case 32
FS68012020
1-1/4" Face Seal × 1-1/4" Male ORB
Case 25
FS68012424
1-1/2" Face Seal × 1-1/2" Male ORB
Case 20
FS680144
9/16" Male ORFS × 7/16" Male ORB
Case 450
FS680146
9/16" Male ORFS × 9/16" Male ORB
Case 300

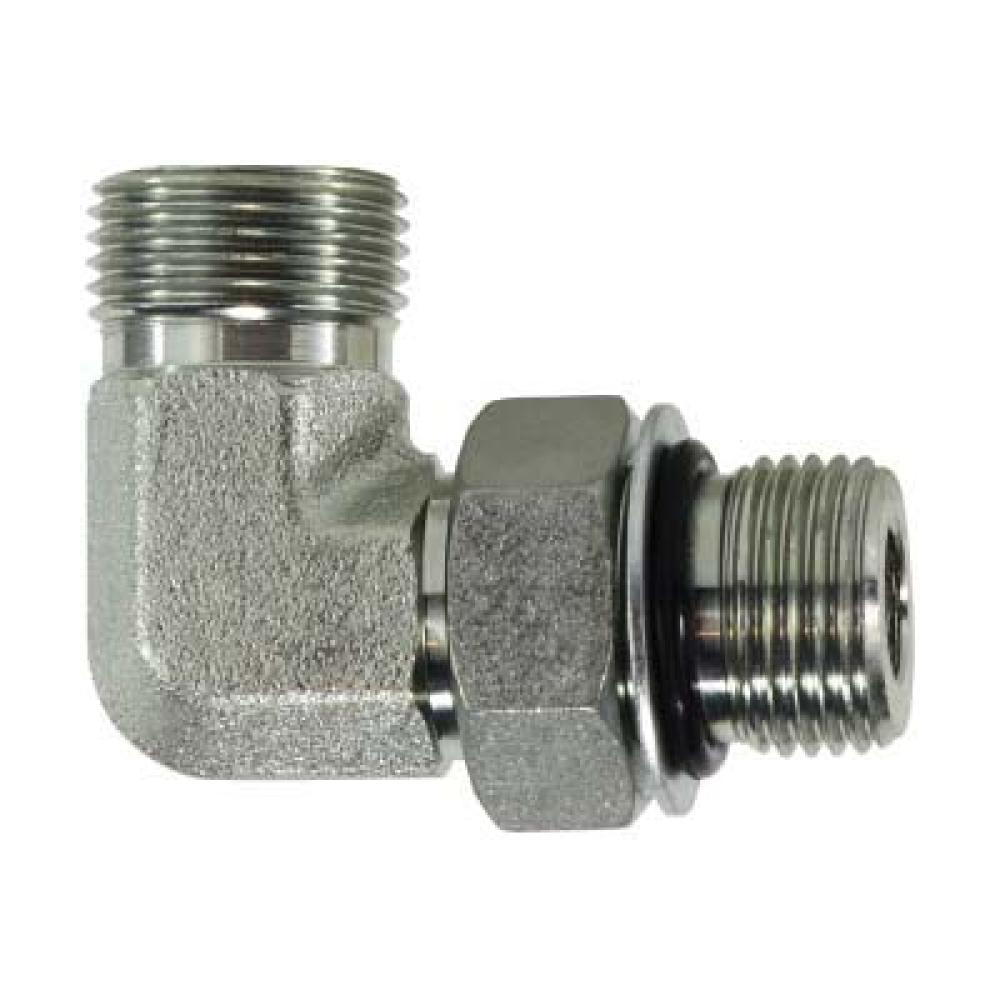

FS680166
11/16" Male ORFS × 9/16" Male ORB
Case 200
FS680168
3/8" Male ORFS × 1/2" Male ORB
—

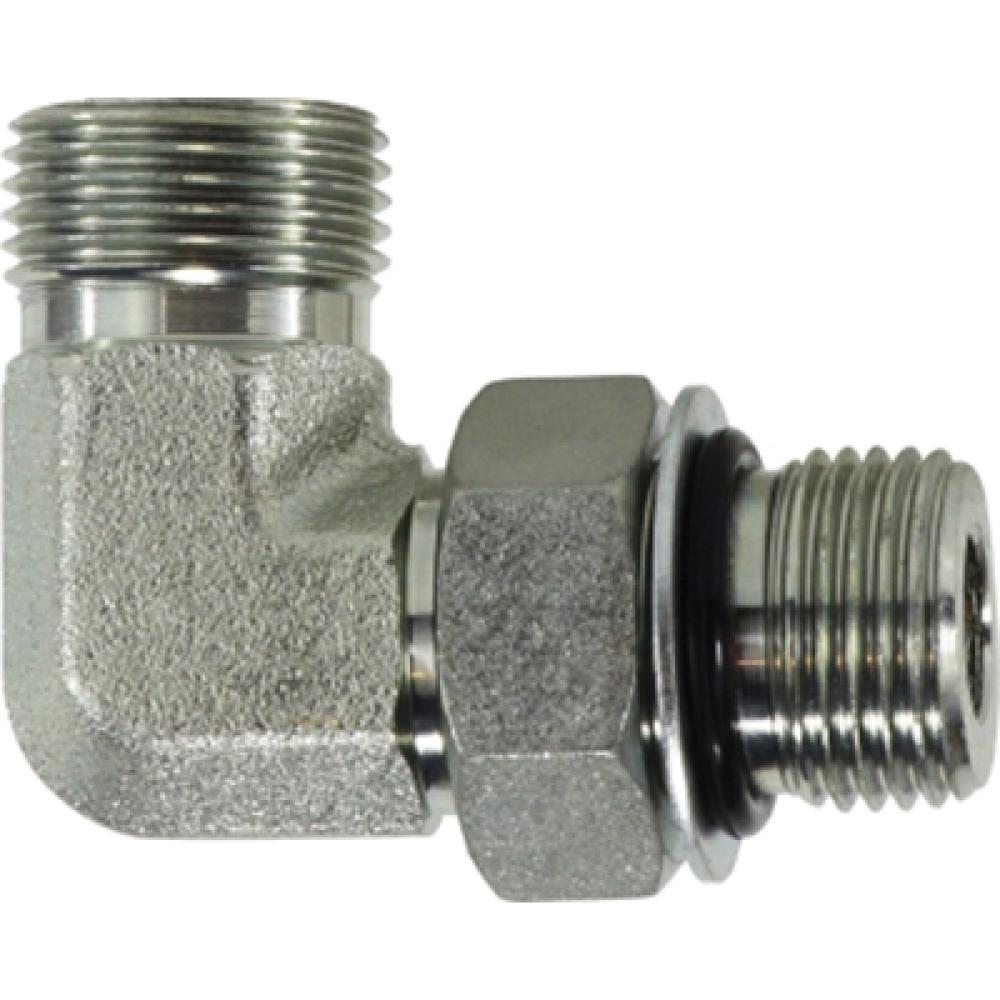

FS6801812
13/16" Male ORFS × 1-1/16" Male ORB
—
FS680186
13/16" Male ORFS × 9/16" Male ORB
Case 200
FS680188
1/2" Male ORFS × 1/2" Male ORB
Case 150
