2404-LL Series – MJIC to Male Pipe - Extra Long in steel. 9 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Connection Type: MJIC|MPT
Operating Temperature: 375 °F
Series: 2404-LL
Configuration: 2404-LL Series – MJIC to Male Pipe - Extra Long
Product line: Steel JIC Adapters
Stocked part numbers: 9
Part numbers & options
Part #
Size
Pack quantities

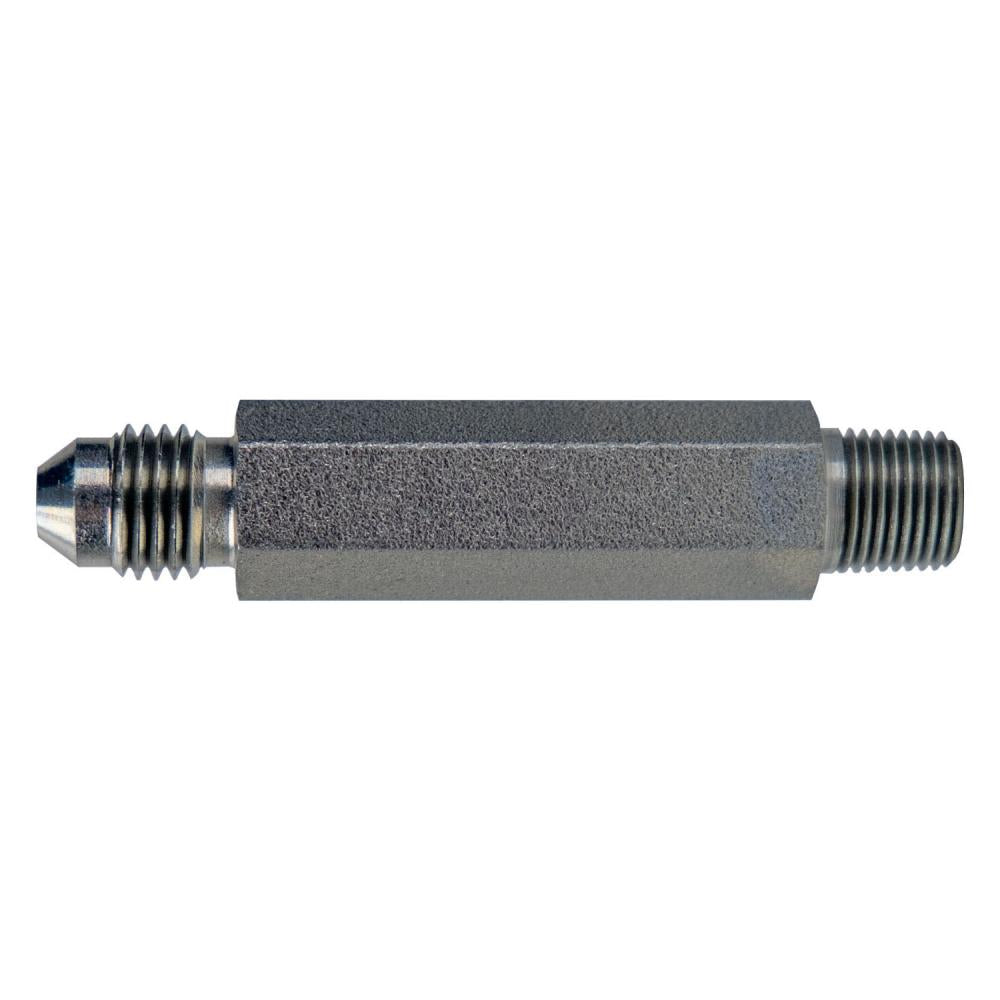

2404-LL-04-02
1/4" Male JIC × 1/8" Male NPT
—
2404-LL-04-04
1/4" Male JIC × 1/4" Male NPT
Case 265
2404-LL-06-04
3/8" Male JIC × 1/4" Male NPT
—
2404-LL-06-06
3/8" Male JIC × 3/8" Male NPT
Box 150, Case 150
2404-LL-08-06
1/2" Male JIC × 3/8" Male NPT
Box 105, Case 105
2404-LL-08-08
1/2" Male JIC × 1/2" Male NPT
Box 105, Case 105
2404-LL-10-08
5/8" Male JIC × 1/2" Male NPT
Box 70, Case 70
2404-LL-12-12
3/4" Male JIC × 3/4" Male NPT
Box 56, Case 56
2404-LL-16-16
1" Male JIC × 1" Male NPT
Box 25, Case 25
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
