1800 Series – MJIC to C.62 Flange in steel. 13 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Configuration: 1800 Series – MJIC to C.62 Flange
Product line: Steel Flange Fittings
Stocked part numbers: 13
Part numbers & options
Part #
Size
Pack quantities
18001212
3/4" Male JIC × 3/4" Code 62 Flange
Case 78

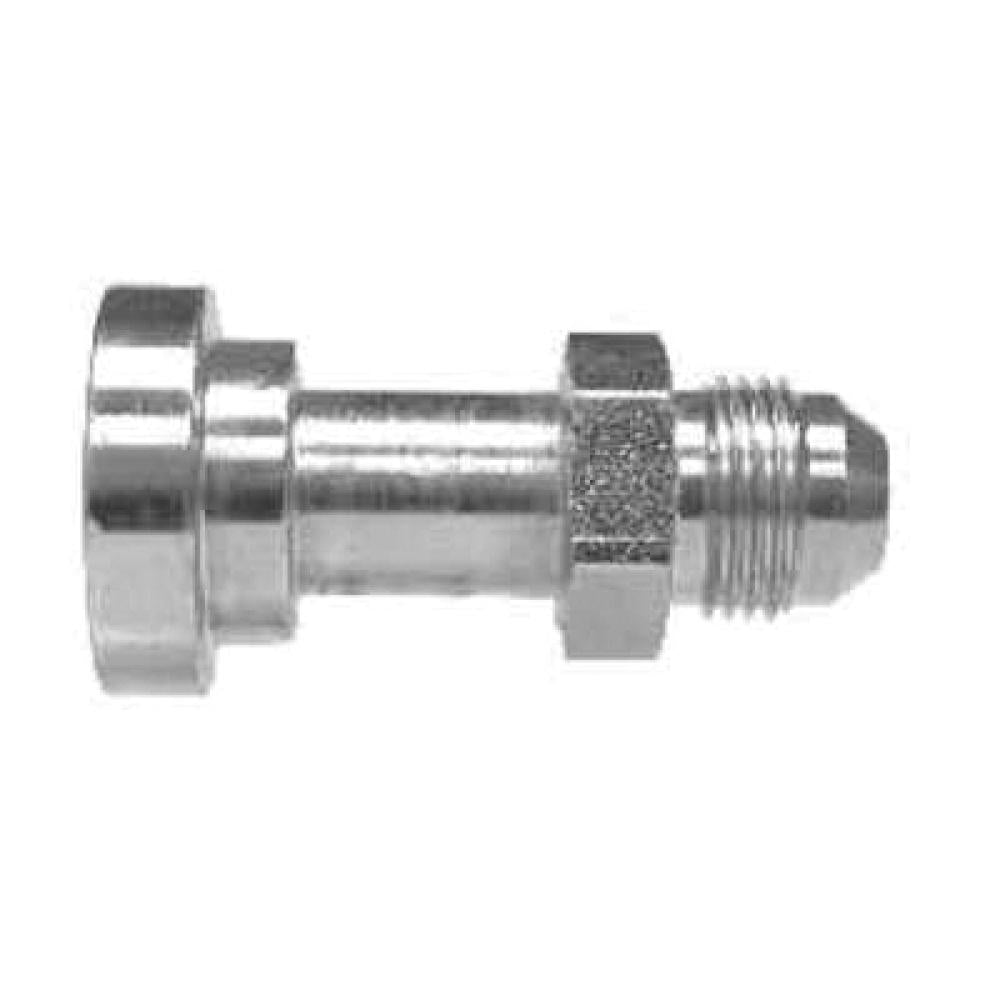

18001216
3/4" Male JIC × 1" Code 62 Flange
Case 55
18001612
1" Male JIC × 3/4" Code 62 Flange
Case 75
18001616
1" Male JIC × 1" Code 62 Flange
Case 45
18001620
1" Male JIC × 1-1/4" Code 62 Flange
Case 45
18001624
1" Male JIC × 1-1/2" Code 62 Flange
—
18002016
1-1/4" Male JIC × 1" Code 62 Flange
Case 33

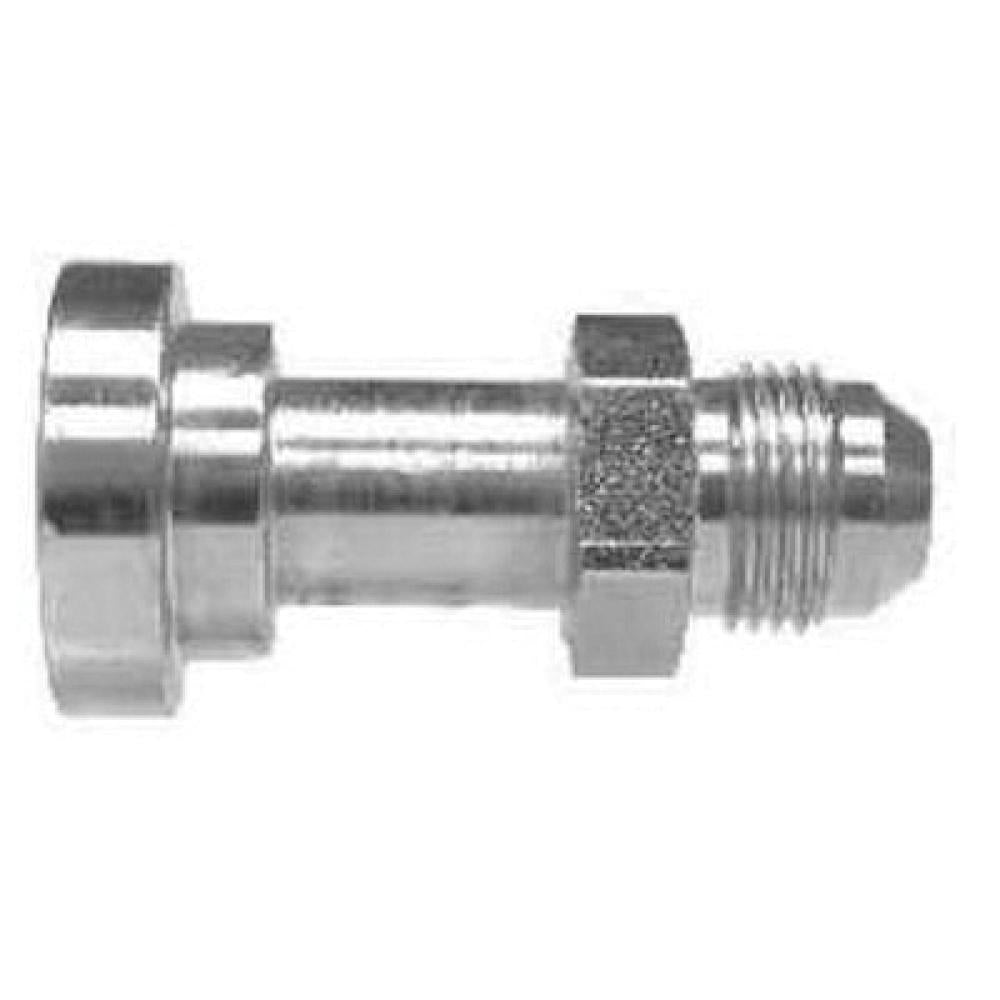

18002020
1-5/8" Male JIC × 1-1/4" Code 62 Flange
Case 40
18002024
1-1/4" Male JIC × 1-1/2" Code 62 Flange
Case 16
18002420
1-1/2" Male JIC × 1-1/4" Code 62 Flange
—
18002424
1-1/2" Male JIC × 1-1/2" Code 62 Flange
Case 16
18003232
2" Male JIC × 2" Code 62 Flange
—

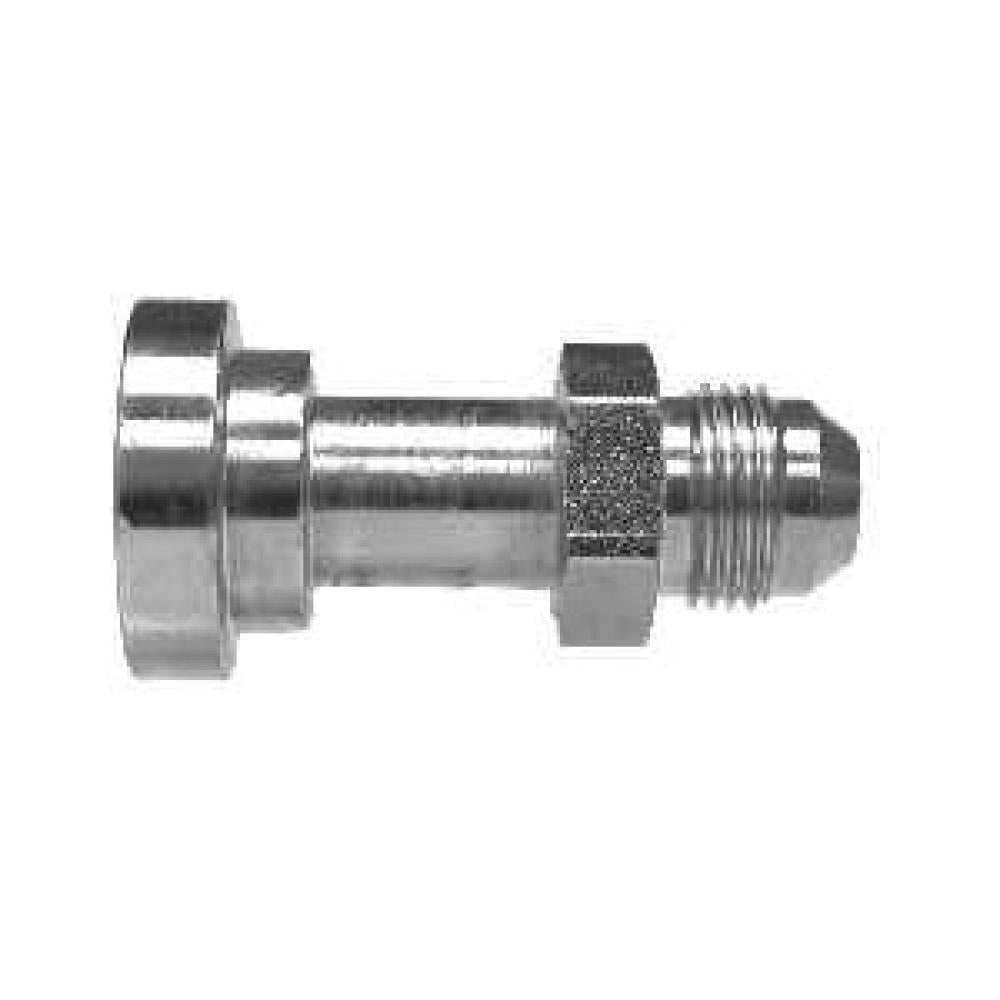

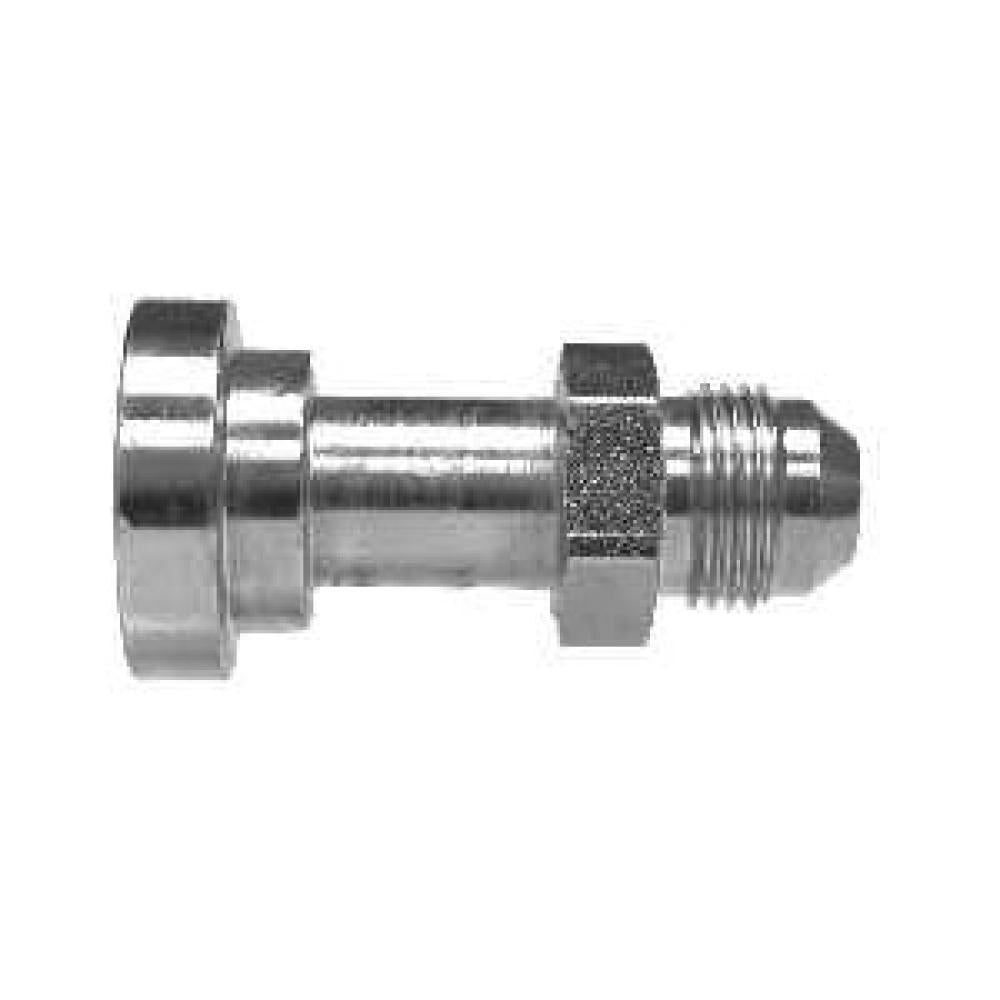

180088
1/2" MJIC × 1/2" Code 62 Flanged
Case 140
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
