Our 316 stainless JIC 37° adapter line covers the full range of union, pipe, bulkhead and tee configurations used in hydraulic and instrumentation plumbing.

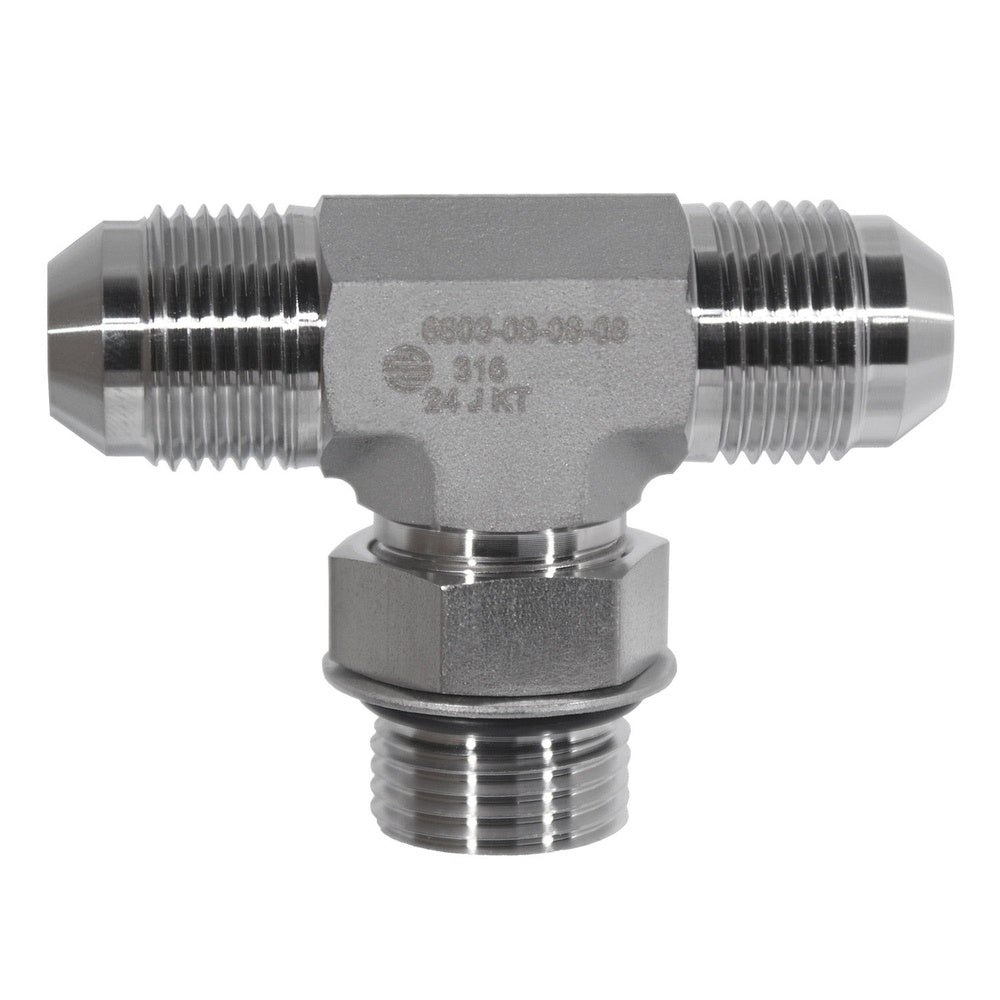

Male JIC 37° to Male SAE O-Ring Boss Branch Tee in 316 stainless steel, Our SS6803 series. 6 sizes stocked, 1/4" through 1-1/2". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° to Male SAE O-Ring Boss Branch Tee
Series: SS6803
Product line: SS JIC Adapters
Size range: 1/4" through 1-1/2"
Stocked part numbers: 6
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS6803-04-04-04
1/4"
—
SS6803-08-08-08
1/2"
—
SS6803-12-12-12
3/4"
—
SS6803-16-16-16
1"
—
SS6803-20-20-20
1-1/4"
—
SS6803-24-24-24
1-1/2"
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
