Our 316 stainless JIC 37° adapter line covers the full range of union, pipe, bulkhead and tee configurations used in hydraulic and instrumentation plumbing.

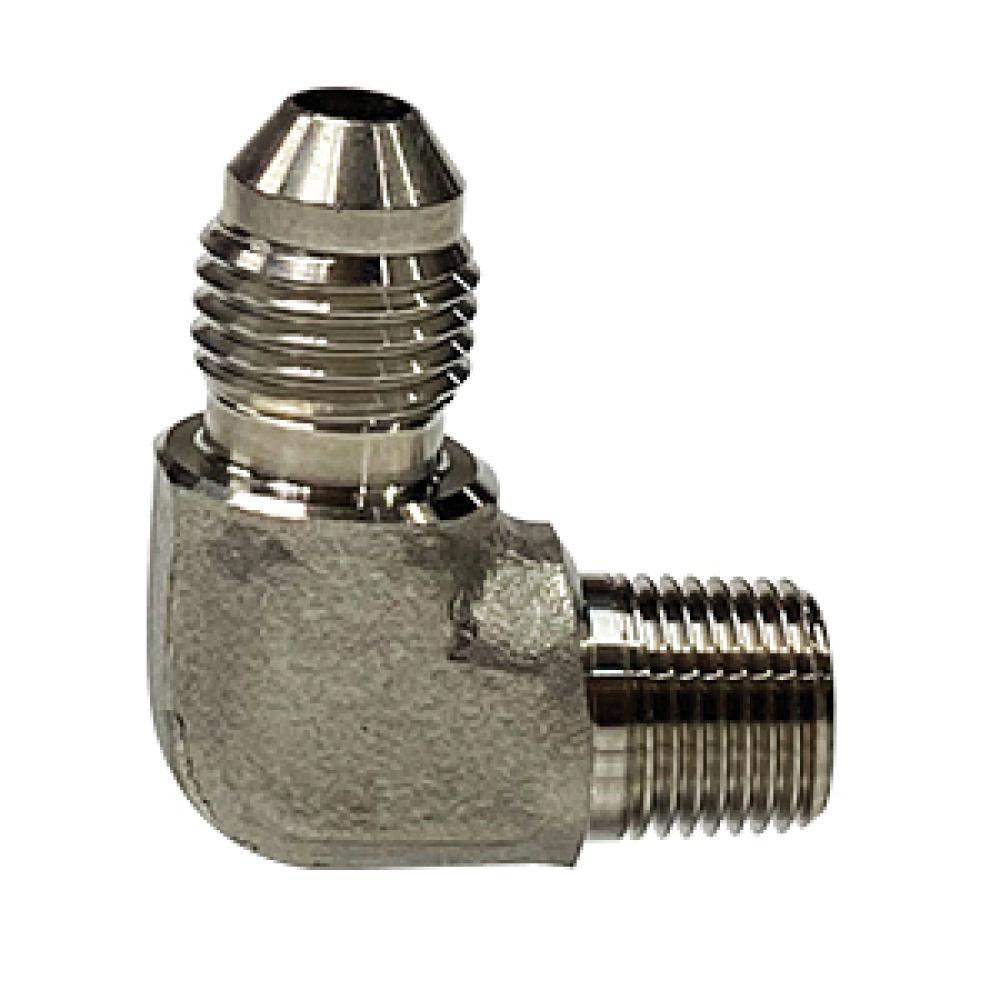

Male JIC 37° to Male Pipe Elbow in 316 stainless steel, Our SS2501 series. 11 sizes stocked, 1/8" through 2". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° to Male Pipe Elbow
Series: SS2501
Product line: SS JIC Adapters
Size range: 1/8" through 2"
Stocked part numbers: 11
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS2501-04-02
1/4" Male JIC × 1/8" Male NPT
Box 224; Case 448
SS2501-04-04
1/4" Male JIC × 1/4" Male NPT
Box 160; Case 320
SS2501-04-06
1/4" Male JIC × 3/8" Male NPT
—
SS2501-06-04
3/8" Male JIC × 1/4" Male NPT
Box 100; Case 200
SS2501-06-06
3/8" Male JIC × 3/8" Male NPT
Box 75; Case 150
SS2501-08-08
1/2" Male JIC × 1/2" Male NPT
—
SS2501-12-12
3/4" Male JIC × 3/4" Male NPT
—
SS2501-16-16
1" Male JIC × 1" Male NPT
—
SS2501-20-20
1-1/4" Male JIC × 1-1/4" Male NPT
—
SS2501-24-24
1-1/2" Male JIC × 1-1/2" Male NPT
—
SS2501-32-32
2" Male JIC × 2" Male NPT
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
