Mid-Lok flareless twin-ferrule instrumentation fittings in 316 stainless, for instrument, sample and small-bore process tube lines.

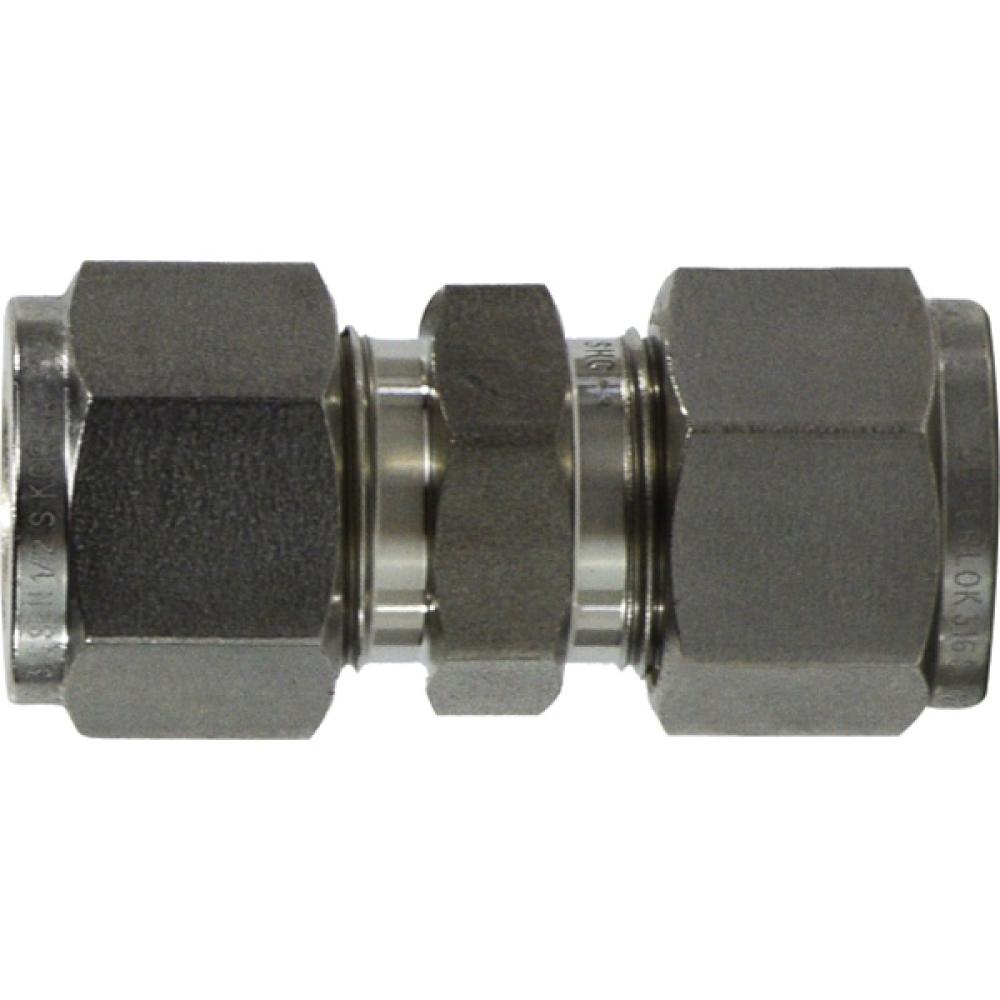

Tube Union in 316 stainless steel, N2403 series. 5 sizes stocked, 1/4" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Before you order
Twin-ferrule fittings are not cross-compatible between brands. Mid-Lok nuts and ferrules are designed to seal against Mid-Lok bodies. Mixing them with Swagelok, Parker A-LOK or other makes will compromise the seal even where the threads engage, so keep a single brand through any one joint.
Correct make-up matters: these need proper initial pull-up and, on remakes, a gap-inspection gauge. They also require tube of the correct wall thickness and hardness — they will not seal reliably on thin-wall or work-hardened tube.
Specifications
Material: 316 stainless steel
Configuration: Tube Union
Series: N2403
Product line: Mid-Lok SS Instrumentation Fittings
Size range: 1/4" through 1"
Stocked part numbers: 5
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SSC24031212
3/4" Tube
Box 42; Case 84
SSC24031616
1" Tube
Box 20; Case 40
SSC240344
1/4" Tube
Box 216; Case 432
SSC240366
3/8" Tube
Box 135; Case 270
SSC240388
1/2" Tube
Box 68; Case 136
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
