Mid-Lok flareless twin-ferrule instrumentation fittings in 316 stainless, for instrument, sample and small-bore process tube lines.
Tube to Male NPT Branch Tee in 316 stainless steel, N2601 series. 6 sizes stocked, 1/4" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Before you order
Twin-ferrule fittings are not cross-compatible between brands. Mid-Lok nuts and ferrules are designed to seal against Mid-Lok bodies. Mixing them with Swagelok, Parker A-LOK or other makes will compromise the seal even where the threads engage, so keep a single brand through any one joint.
Correct make-up matters: these need proper initial pull-up and, on remakes, a gap-inspection gauge. They also require tube of the correct wall thickness and hardness — they will not seal reliably on thin-wall or work-hardened tube.
Specifications
Material: 316 stainless steel
Configuration: Tube to Male NPT Branch Tee
Series: N2601
Product line: Mid-Lok SS Instrumentation Fittings
Size range: 1/4" through 1"
Stocked part numbers: 6
Part numbers & sizes
Part #
Size / Configuration
Pack quantities

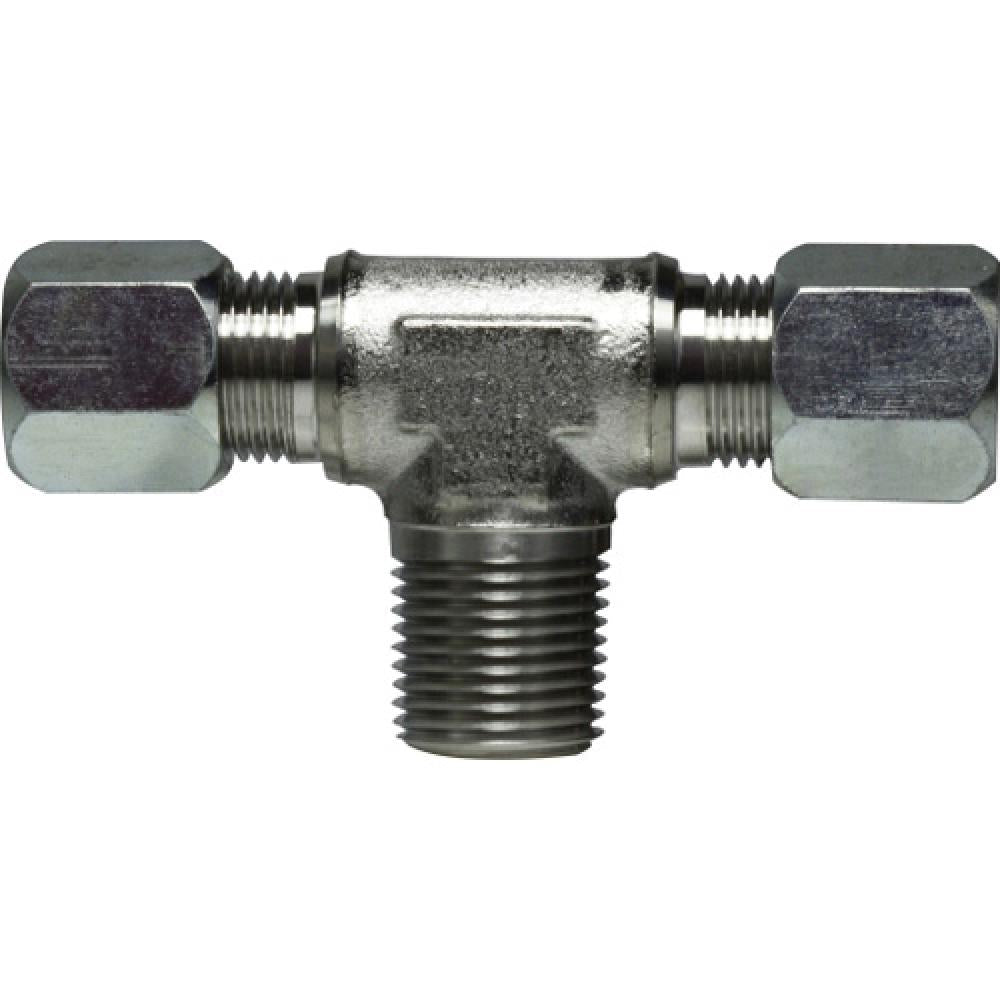

SSC26011212
3/4" Tube × 3/4" Male NPT
Box 20; Case 40
SSC26011616
1" Tube × 1" Male NPT
Box 8; Case 16
SSC260144
1/4" Tube × 1/4" Male NPT
Box 80; Case 160
SSC260164
3/8" Tube × 1/4" Male NPT
Box 64; Case 128
SSC260166
3/8" Tube × 3/8" Male NPT
Box 60; Case 120
SSC260188
1/2" Tube × 1/2" Male NPT
Box 36; Case 72
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
