SKU:SSC240542
Flareless twin-ferrule instrumentation fittings in 316 stainless, for instrument, sample and small-bore process tube lines.
Tube to Female NPT in 316 stainless steel, N2405 series. 11 sizes stocked, 1/8" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Before you order
Twin-ferrule fittings are not cross-compatible between brands. Nuts and ferrules from one manufacturer are designed to seal against that manufacturer’s bodies. Mixing them with Swagelok, Parker A-LOK or other makes will compromise the seal even where the threads engage, so keep a single brand through any one joint.
Correct make-up matters: these need proper initial pull-up and, on remakes, a gap-inspection gauge. They also require tube of the correct wall thickness and hardness — they will not seal reliably on thin-wall or work-hardened tube.
Specifications
Material: 316 stainless steel
Configuration: Tube to Female NPT
Series: N2405
Size range: 1/8" through 1"
Stocked part numbers: 11
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SSC24051212
3/4" Tube × 3/4" Female NPT
Box 32; Case 64
SSC24051616
1" Tube × 1" Female NPT
Box 18; Case 36
SSC240542
1/4" Tube × 1/8" Female NPT
Box 210; Case 420

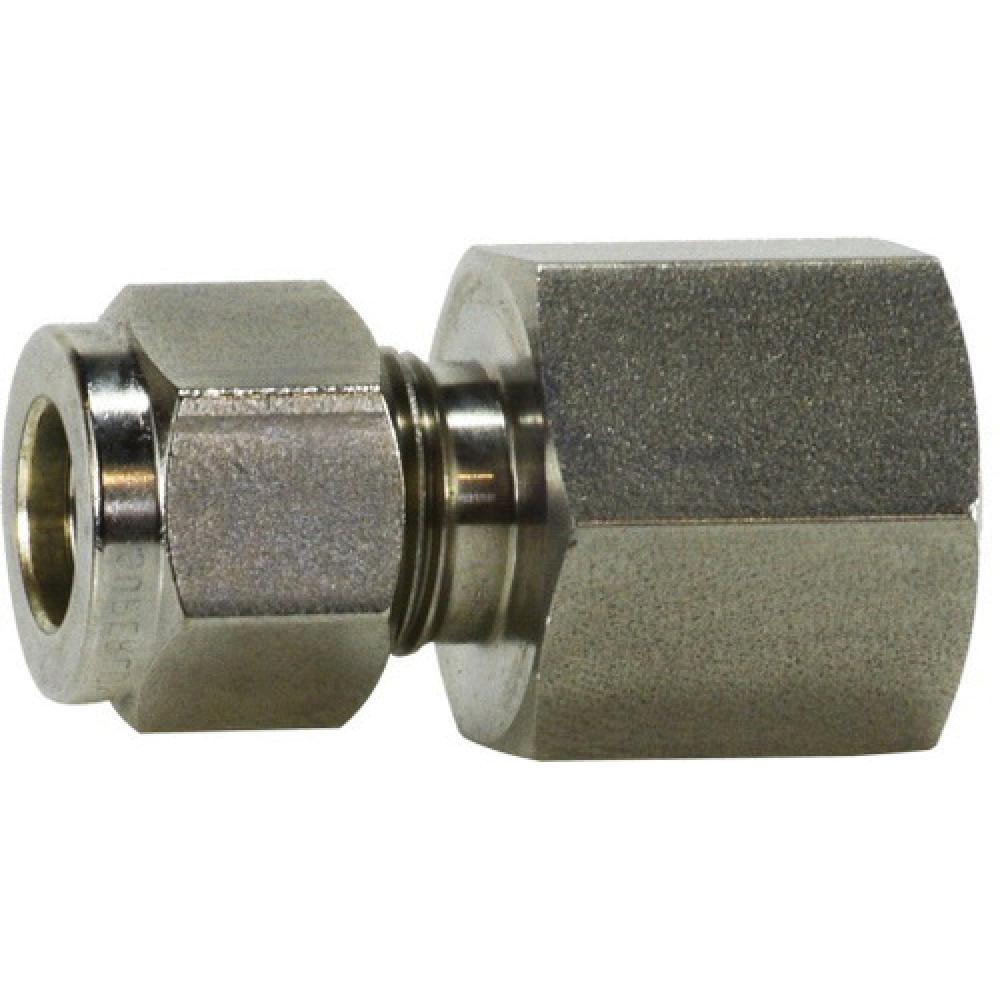

SSC240544
1/4" Tube × 1/4" Female NPT
Box 108; Case 216
SSC240562
3/8" Tube × 1/8" Female NPT
Box 170; Case 340

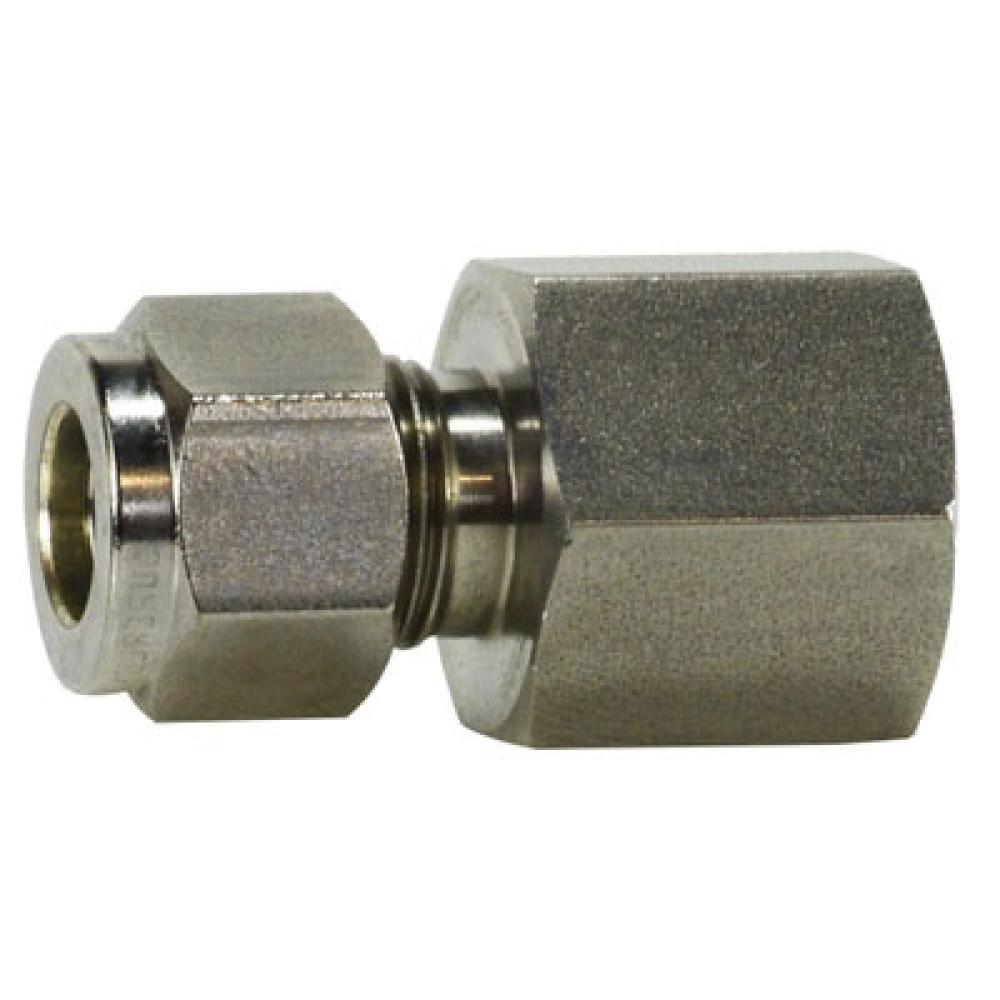

SSC240564
3/8" Tube × 1/4" Female NPT
Box 108; Case 216
SSC240566
3/8" Tube × 3/8" Female NPT
Box 84; Case 168
SSC240568
3/8" Tube × 1/2" Female NPT
Box 50; Case 100
SSC240584
1/2" Tube × 1/4" Female NPT
Box 84; Case 168
SSC240586
1/2" Tube × 3/8" Female NPT
Box 68; Case 136
SSC240588
1/2" Tube × 1/2" Female NPT
Box 50; Case 100
