Mid-Lok flareless twin-ferrule instrumentation fittings in 316 stainless, for instrument, sample and small-bore process tube lines.

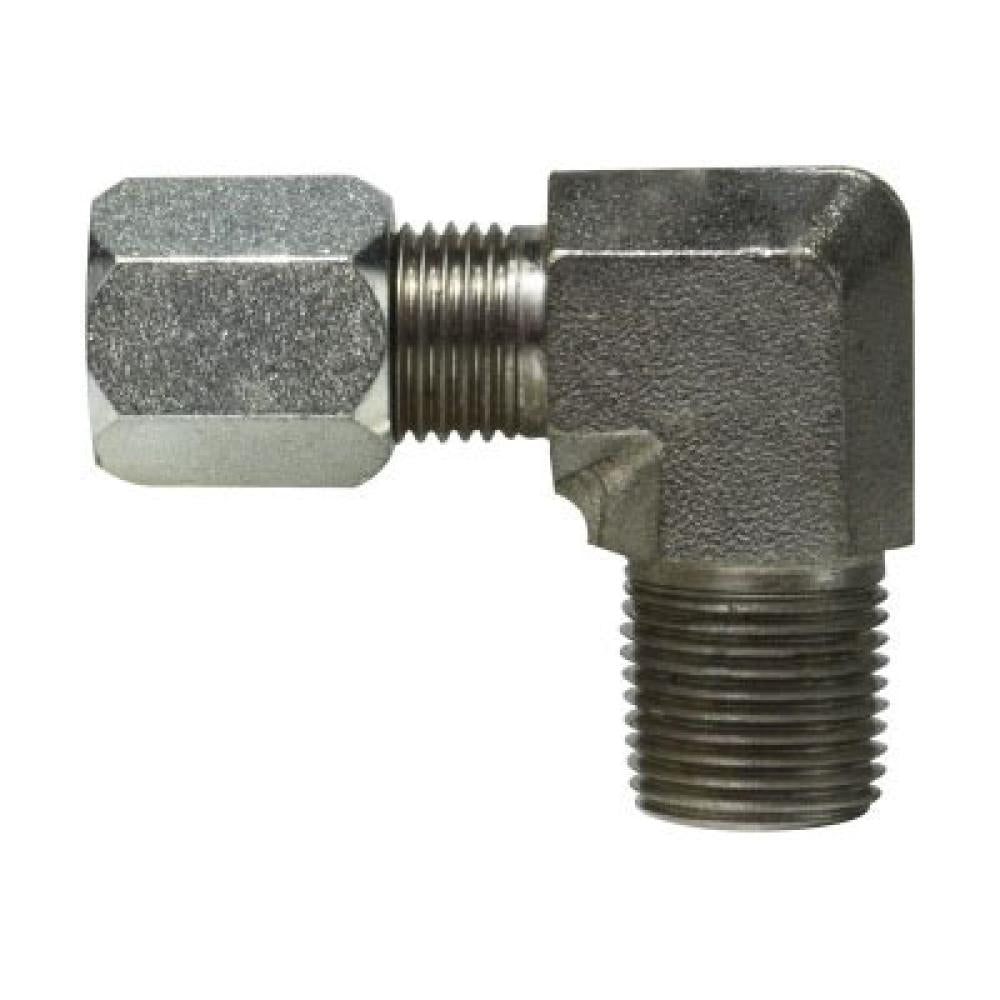

Tube to Male NPT Elbow in 316 stainless steel, N2501 series. 11 sizes stocked, 1/8" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Before you order
Twin-ferrule fittings are not cross-compatible between brands. Mid-Lok nuts and ferrules are designed to seal against Mid-Lok bodies. Mixing them with Swagelok, Parker A-LOK or other makes will compromise the seal even where the threads engage, so keep a single brand through any one joint.
Correct make-up matters: these need proper initial pull-up and, on remakes, a gap-inspection gauge. They also require tube of the correct wall thickness and hardness — they will not seal reliably on thin-wall or work-hardened tube.
Specifications
Material: 316 stainless steel
Configuration: Tube to Male NPT Elbow
Series: N2501
Product line: Mid-Lok SS Instrumentation Fittings
Size range: 1/8" through 1"
Stocked part numbers: 11
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SSC25011212
3/4" Tube × 3/4" Male NPT
Box 26; Case 52
SSC25011616
1" Tube × 1" Male NPT
Box 16; Case 32
SSC250142
1/4" Tube × 1/8" Male NPT
Box 180; Case 360
SSC250144
1/4" Tube × 1/4" Male NPT
Box 156; Case 312
SSC250162
3/8" Tube × 1/8" Male NPT
Box 98; Case 196
SSC250164
3/8" Tube × 1/4" Male NPT
Box 100; Case 200
SSC250166
3/8" Tube × 3/8" Male NPT
Box 84; Case 168
SSC250168
3/8" Tube × 1/2" Male NPT
Box 54; Case 108
SSC250184
1/2" Tube × 1/4" Male NPT
Box 32; Case 64
SSC250186
1/2" Tube × 3/8" Male NPT
Box 64; Case 128
SSC250188
1/2" Tube × 1/2" Male NPT
Box 48; Case 96
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
