Hose Barb x Male in forged brass. 9 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Body Material: Forged Brass
Connection Type: Hose Barb x MPT
Pressure Rating: 200 psi WOG
Temperature Rating: -20 to 250 °F
Seal Material: PTFE
Operator Type: 1/2-Turn Handle
Lead-Free/Contains Lead: Contains Lead
Configuration: Hose Barb x Male
Product line: Mini Ball Valve
Stocked part numbers: 9
Part numbers & options
Part #
Type
Pack quantities

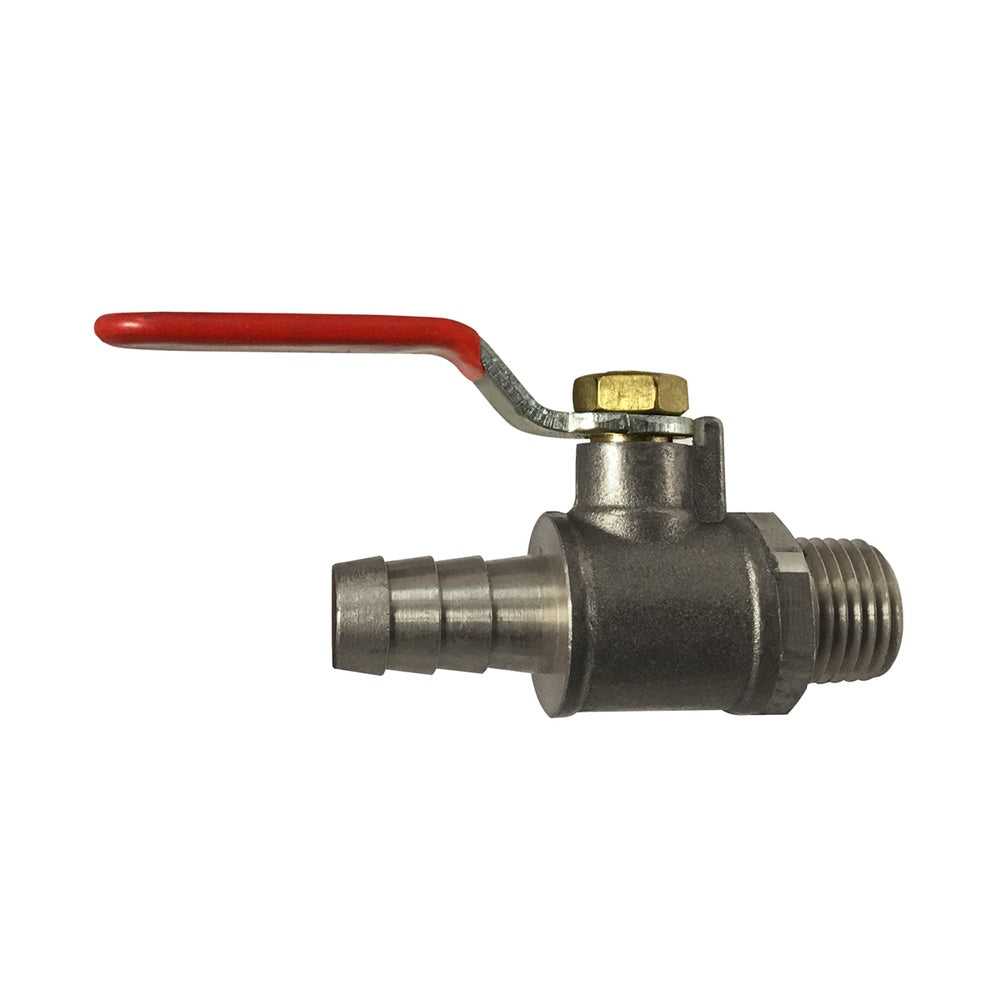

944012
1/4MIP x 3/8BARB Cp Ball Valve
Box 50, Case 500

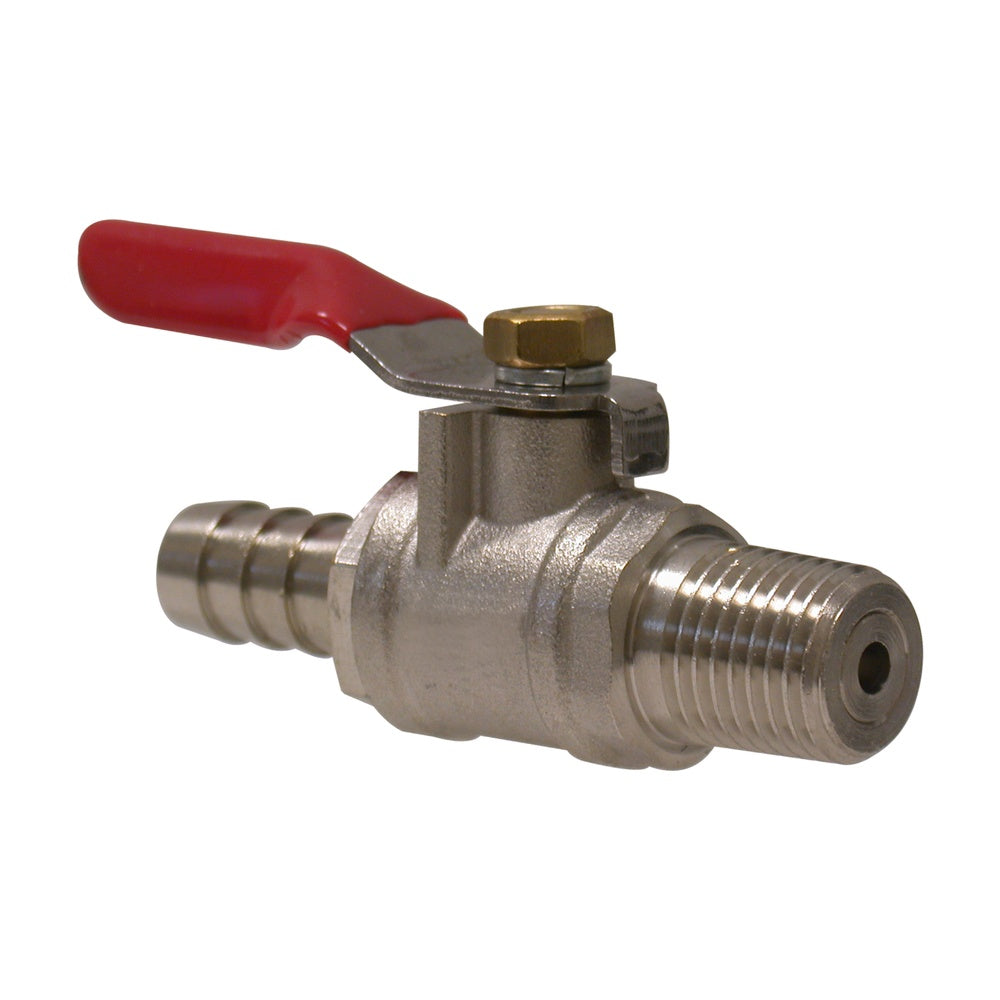

944051
1/4MIP x 1/4BARB Cp Ball Vavle with Check
Box 50, Case 500
944052
1/4MIP x 3/8BARB Cp Ball Valve with Check
Box 50, Case 500

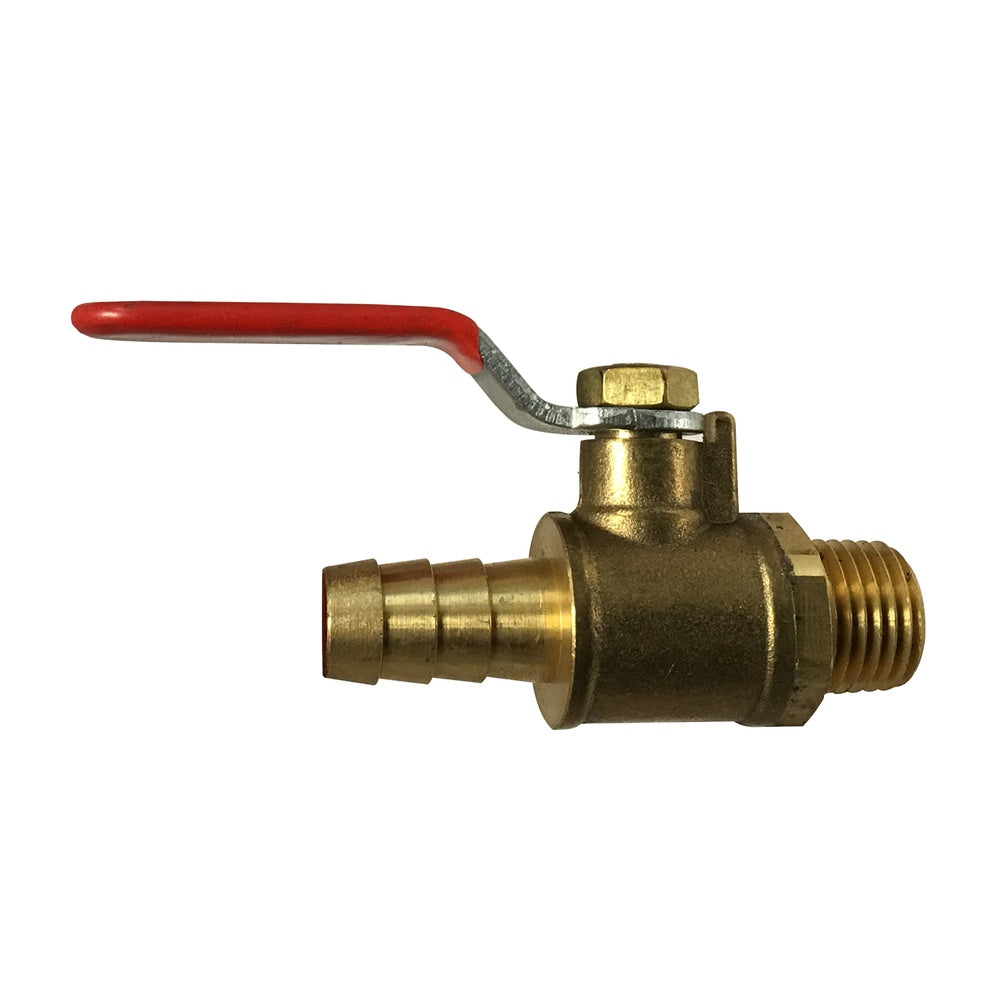

944128
1/4MIP x 3/8HB Frgd Mini B-valve
Box 50, Case 500
944128PE
1/4MIP x 3/8HB Frgd Mini B-valve -
—
944130
3/8HB x 3/8MIP Frgd Mini B-valve
Box 50, Case 200
944132
1/4HB x 1/8 Male Pipe Frgd Mini B-valve
Box 50, Case 200
944138
1/4MIP x 1/4HB Frgd Mini B-valve
Box 50, Case 500
944139
1/2 Hb x 1/2 Male Pipe Frgd Mini B-valve
Box 50, Case 200
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
