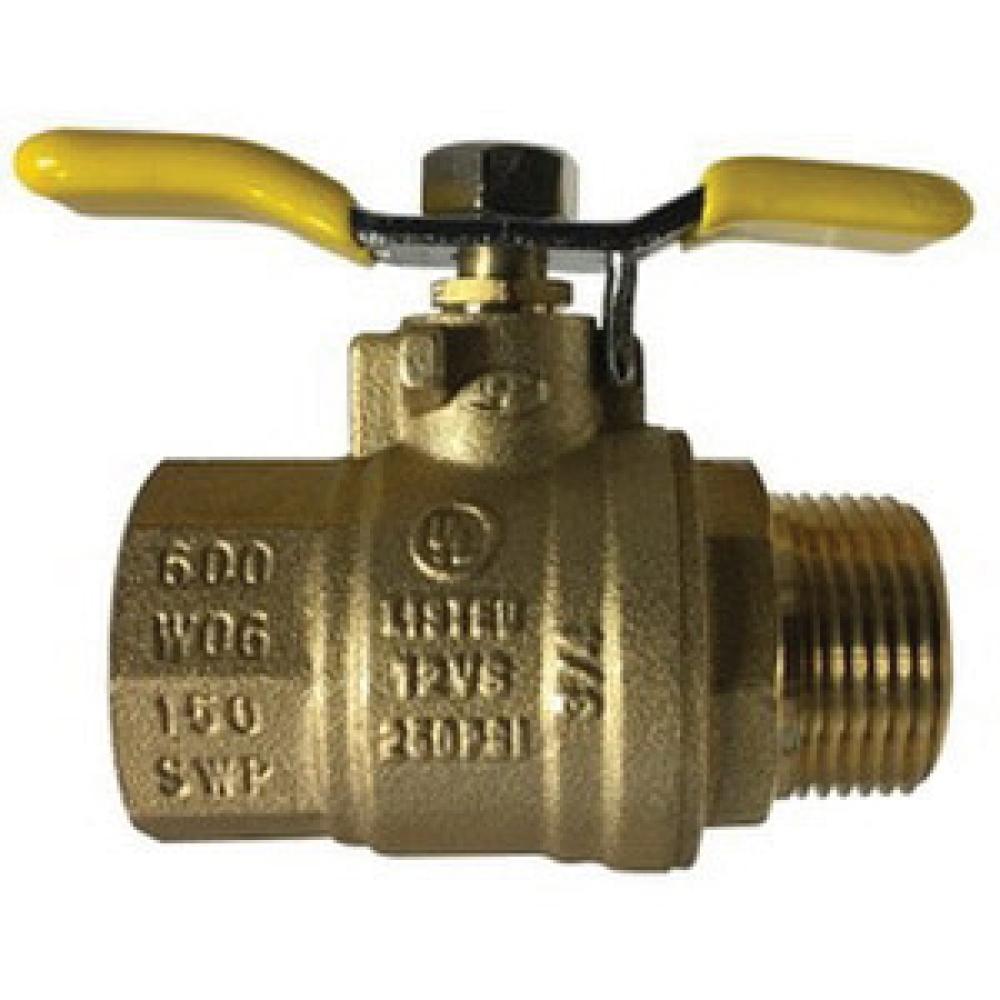

Male x Female Tee Handle Ball Valve in forged brass. 7 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Body Material: Forged Brass
Connection Type: MPT x FPT
Pressure Rating: 600 psi WOG
Temperature Rating: -20 to 300 °F
Seal Material: PTFE
Operator Type: 1/4-Turn Tee Handle
Lead-Free/Contains Lead: Contains Lead
Configuration: Male x Female Tee Handle Ball Valve
Product line: Male x Female Ball Valves
Stocked part numbers: 7
Part numbers & options
Part #
Type
Pack quantities
948170T
1/4 T-handle Male x Female Ball Valve
Box 70, Case 140
948171T
3/8 T-handle Male x Female Ball Valve
Box 70, Case 140
948171TVS
3/8 T-handle M x F Ball Valve with Sealant
Box 70, Case 140
948172T
1/2 T-handle Male x Female Ball Valve
Box 50, Case 100
948173T
3/4 T-handle Male x Female Ball Valve
Box 30, Case 60
948174T
1 T-handle Male x Female Ball Valve
Box 20, Case 40
948175T
1 1/4 T-handle Male x Female Ball Valve
Box 12, Case 24
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
