316 stainless NPT pipe adapters — bushings, nipples, couplings, bulkheads and reducers — for corrosive and washdown service where brass or plated steel won’t last.

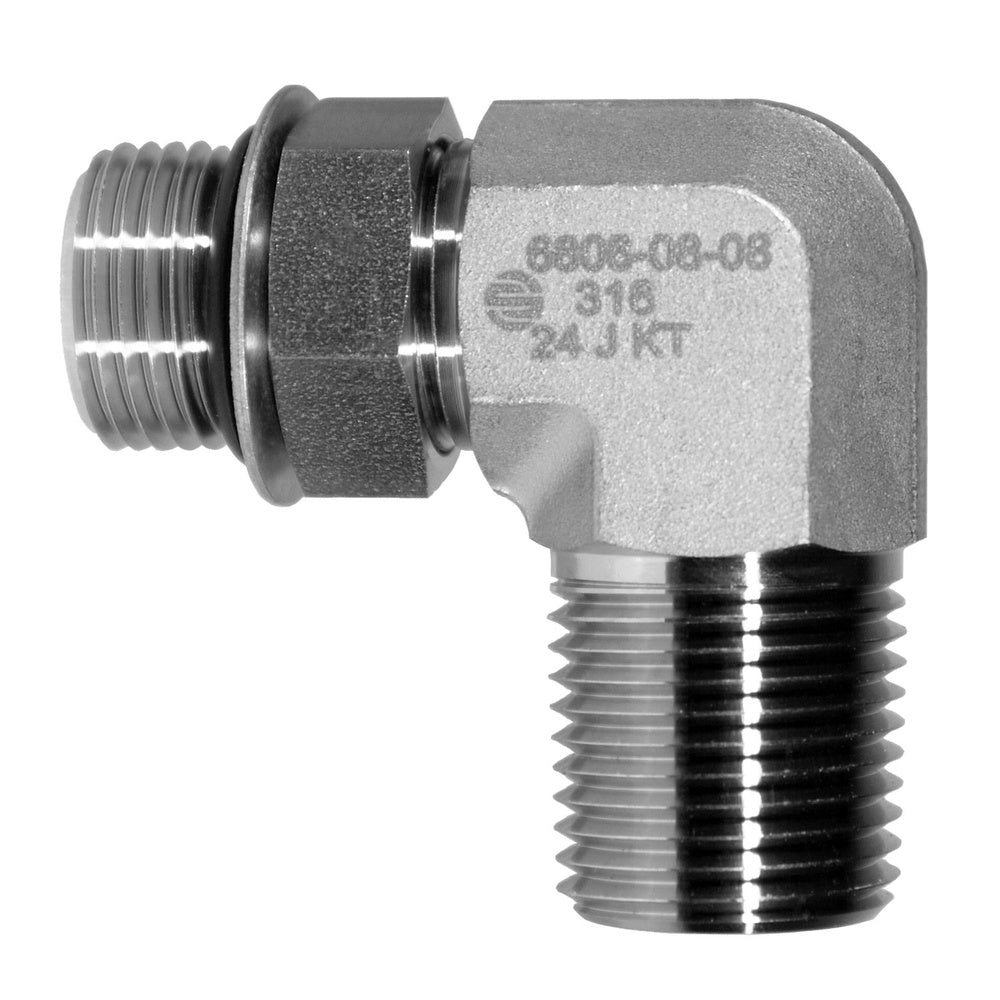

Male SAE O-Ring Boss to Male NPT Elbow in 316 stainless steel, Our SS6806-NWO series. 8 sizes stocked, 1/4" through 2". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male SAE O-Ring Boss to Male NPT Elbow
Series: SS6806-NWO
Product line: SS Pipe Adapters
Size range: 1/4" through 2"
Stocked part numbers: 8
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS6806-04-04
1/4" Male SAE O-Ring Boss × 1/4" Male NPT
—
SS6806-06-06
3/8" Male SAE O-Ring Boss × 3/8" Male NPT
—
SS6806-08-08
1/2" Male SAE O-Ring Boss × 1/2" Male NPT
—
SS6806-12-12
3/4" Male SAE O-Ring Boss × 3/4" Male NPT
—
SS6806-16-16
1" Male SAE O-Ring Boss × 1" Male NPT
—
SS6806-20-20
1-1/4" Male SAE O-Ring Boss × 1-1/4" Male NPT
—
SS6806-24-24
1-1/2" Male SAE O-Ring Boss × 1-1/2" Male NPT
—
SS6806-32-32
2" Male SAE O-Ring Boss × 2" Male NPT
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
