Our 316 stainless JIC 37° adapter line covers the full range of union, pipe, bulkhead and tee configurations used in hydraulic and instrumentation plumbing.

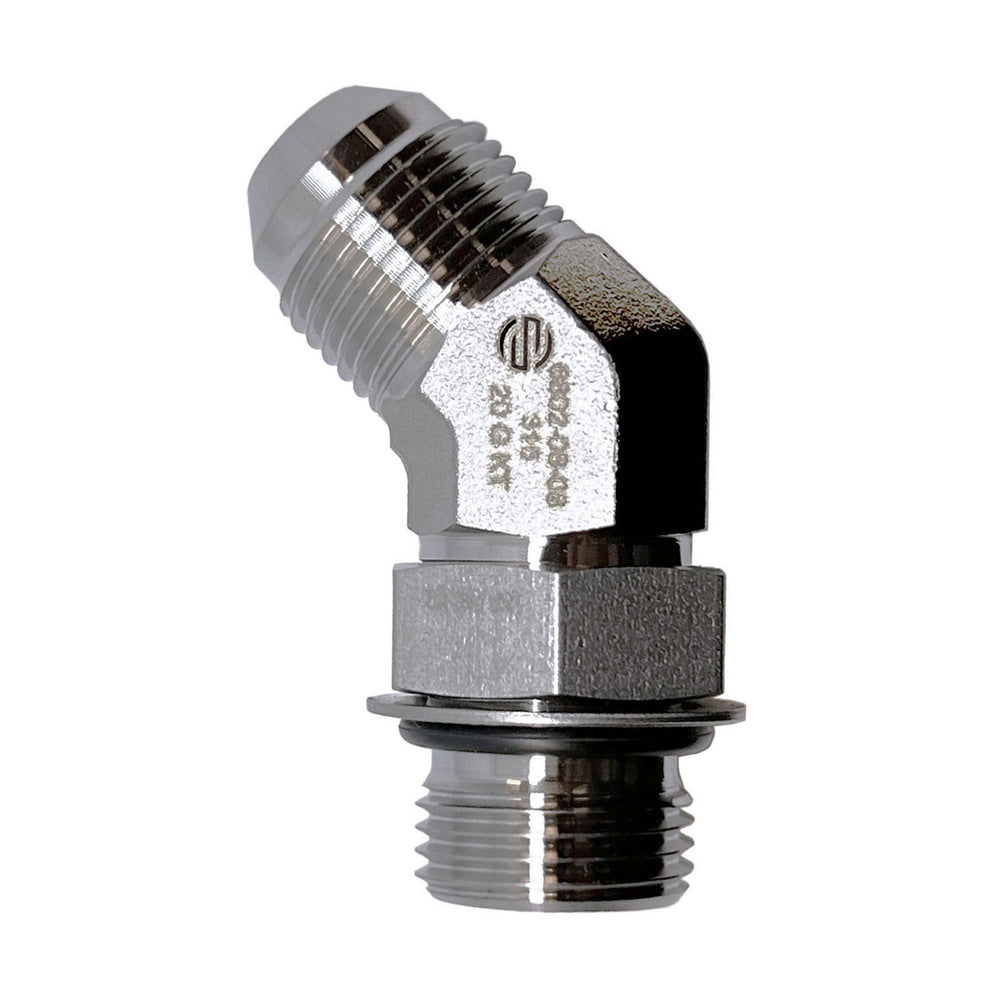

Male JIC 37° to Male SAE O-Ring Boss 45-Deg Elbow in 316 stainless steel, Our SS6802 series. 7 sizes stocked, 1/4" through 1-1/2". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° to Male SAE O-Ring Boss 45-Deg Elbow
Series: SS6802
Product line: SS JIC Adapters
Size range: 1/4" through 1-1/2"
Stocked part numbers: 7
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS6802-04-04
1/4" Male JIC × 1/4" Male SAE O-Ring Boss
—
SS6802-06-06
3/8" Male JIC × 3/8" Male SAE O-Ring Boss
—
SS6802-08-08
1/2" Male JIC × 1/2" Male SAE O-Ring Boss
—
SS6802-12-12
3/4" Male JIC × 3/4" Male SAE O-Ring Boss
—
SS6802-16-16
1" Male JIC × 1" Male SAE O-Ring Boss
—
SS6802-20-20
1-1/4" Male JIC × 1-1/4" Male SAE O-Ring Boss
—
SS6802-24-24
1-1/2" Male JIC × 1-1/2" Male SAE O-Ring Boss
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
