Male Connectors in brass. 16 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: Adapter
Pressure Rating: 150 psi
Temperature Rating: -40 to 150 deg F
Configuration: Male Connectors
Product line: Flareless
Stocked part numbers: 16
Part numbers & options
Part #
Size
Pack quantities

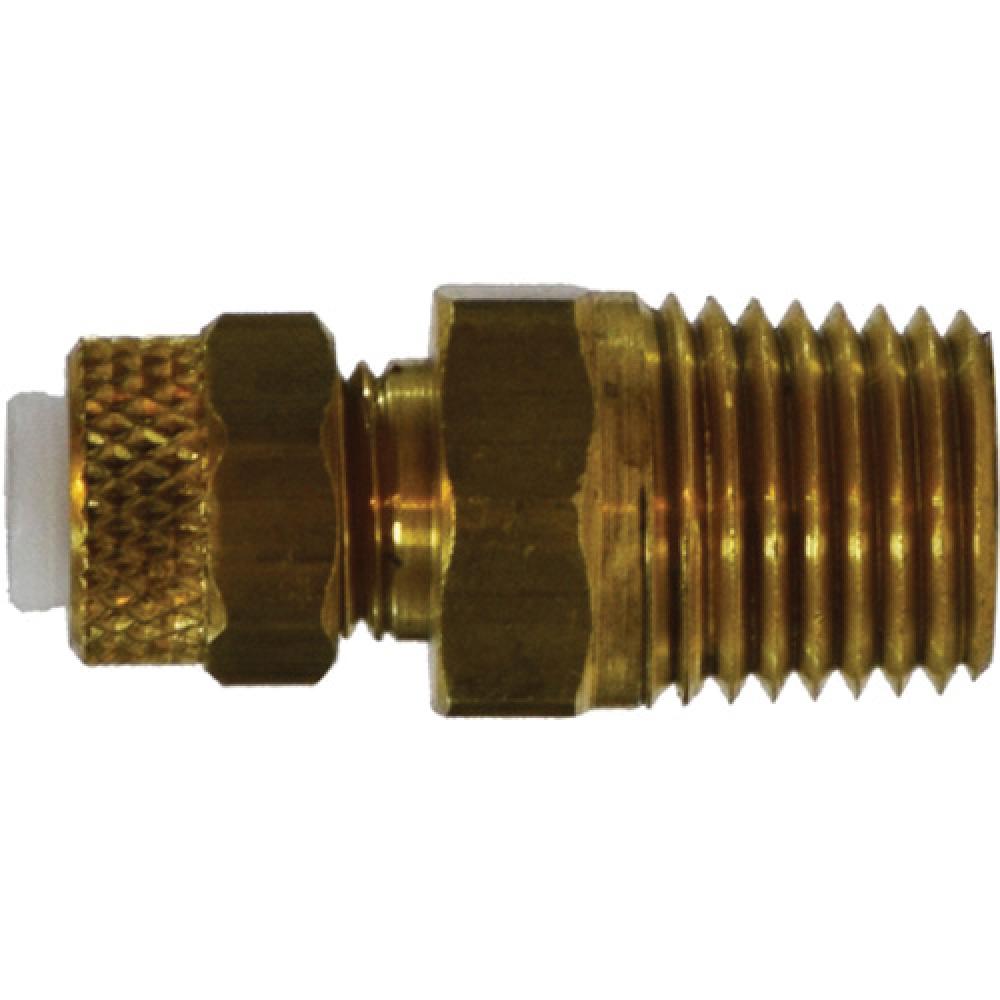

20267
1/8" Tube OD × #10-32 Male NPT
—
20268
1/8" Tube OD × 1/8" Male NPT
Bag 10
20269
3/16" Tube OD × 1/8" Male NPT
Bag 10
20270
1/4" Tube OD × #10-32 Male NPT
Bag 10
20271
1/4" Tube OD × 1/8" Male NPT
Bag 50, Case 1000
20272
1/4" Tube OD × 1/4" Male NPT
Bag 100, Case 1000
20273
1/4" Tube OD × 3/8" Male NPT
Bag 50, Case 500
20274
5/16" Tube OD × 1/8" Male NPT
Bag 10
20275
5/16" Tube OD × 1/4" Male NPT
Bag 10, Case 500
20276
3/8" Tube OD × 1/8" Male NPT
Bag 50, Case 800
20277
3/8" Tube OD × 1/4" Male NPT
Bag 10, Case 500
20278
3/8" Tube OD × 3/8" Male NPT
Bag 50, Case 250
20279
1/2" Tube OD × 3/8" Male NPT
Bag 10, Case 250
20280
1/4" Tube OD × 1/16" Male NPT
—
20282
1/2" Tube OD × 1/2" Male NPT
Bag 10, Case 150
268PF-4B
1/4" Tube OD × 1/4" MPT
Bag 50, Case 700
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
