SKU:SSC240444
Flareless twin-ferrule instrumentation fittings in 316 stainless, for instrument, sample and small-bore process tube lines.
Tube to Male NPT in 316 stainless steel, N2404 series. 11 sizes stocked, 1/8" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Before you order
Twin-ferrule fittings are not cross-compatible between brands. Nuts and ferrules from one manufacturer are designed to seal against that manufacturer’s bodies. Mixing them with Swagelok, Parker A-LOK or other makes will compromise the seal even where the threads engage, so keep a single brand through any one joint.
Correct make-up matters: these need proper initial pull-up and, on remakes, a gap-inspection gauge. They also require tube of the correct wall thickness and hardness — they will not seal reliably on thin-wall or work-hardened tube.
Specifications
Material: 316 stainless steel
Configuration: Tube to Male NPT
Series: N2404
Size range: 1/8" through 1"
Stocked part numbers: 11
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SSC24041212
3/4" Tube × 3/4" Male NPT
Box 39; Case 78
SSC24041616
1" Tube × 1" Male NPT
Box 20; Case 40
SSC240442

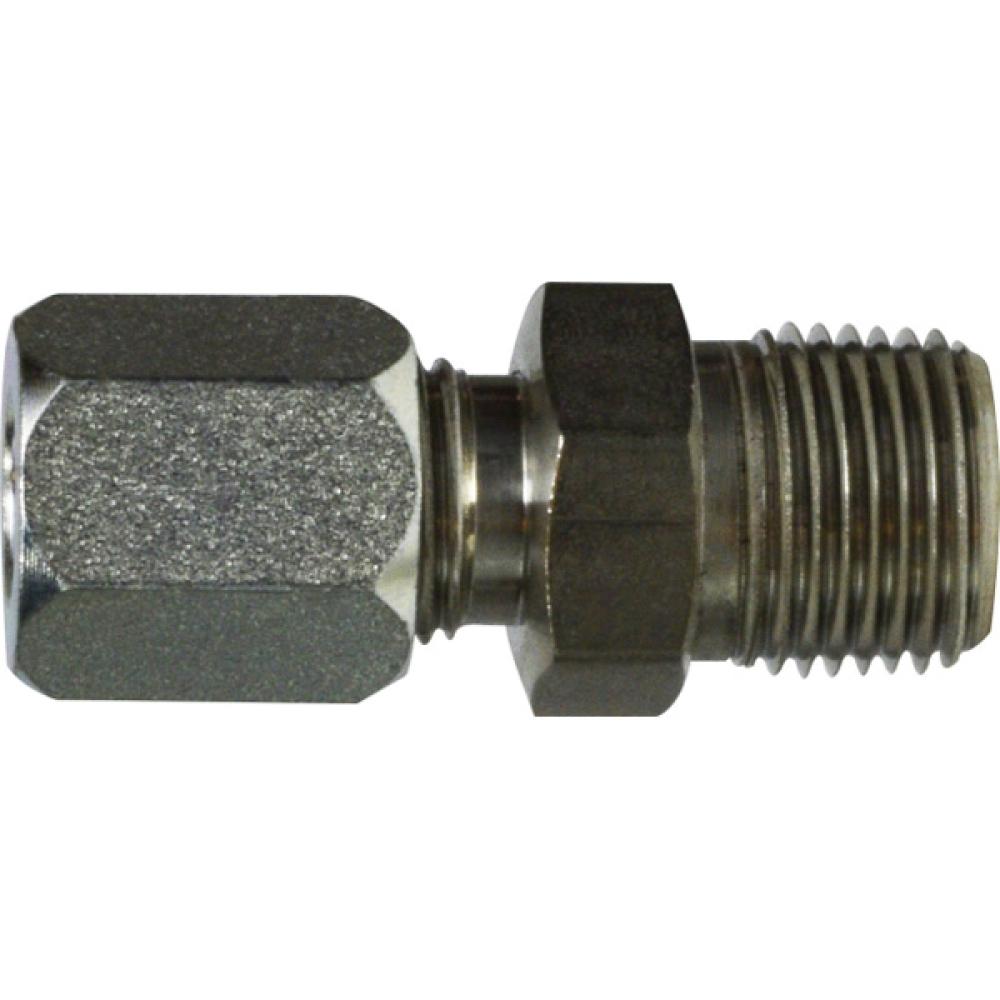

1/4" Tube × 1/8" Male NPT
Box 258; Case 516
SSC240444
1/4" Tube × 1/4" Male NPT
Box 198; Case 396
SSC240446
1/4" Tube × 3/8" Male NPT
Box 135; Case 270

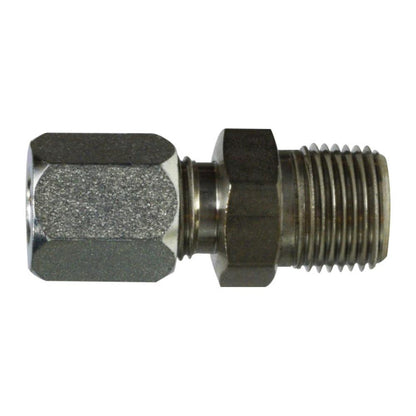

SSC240448

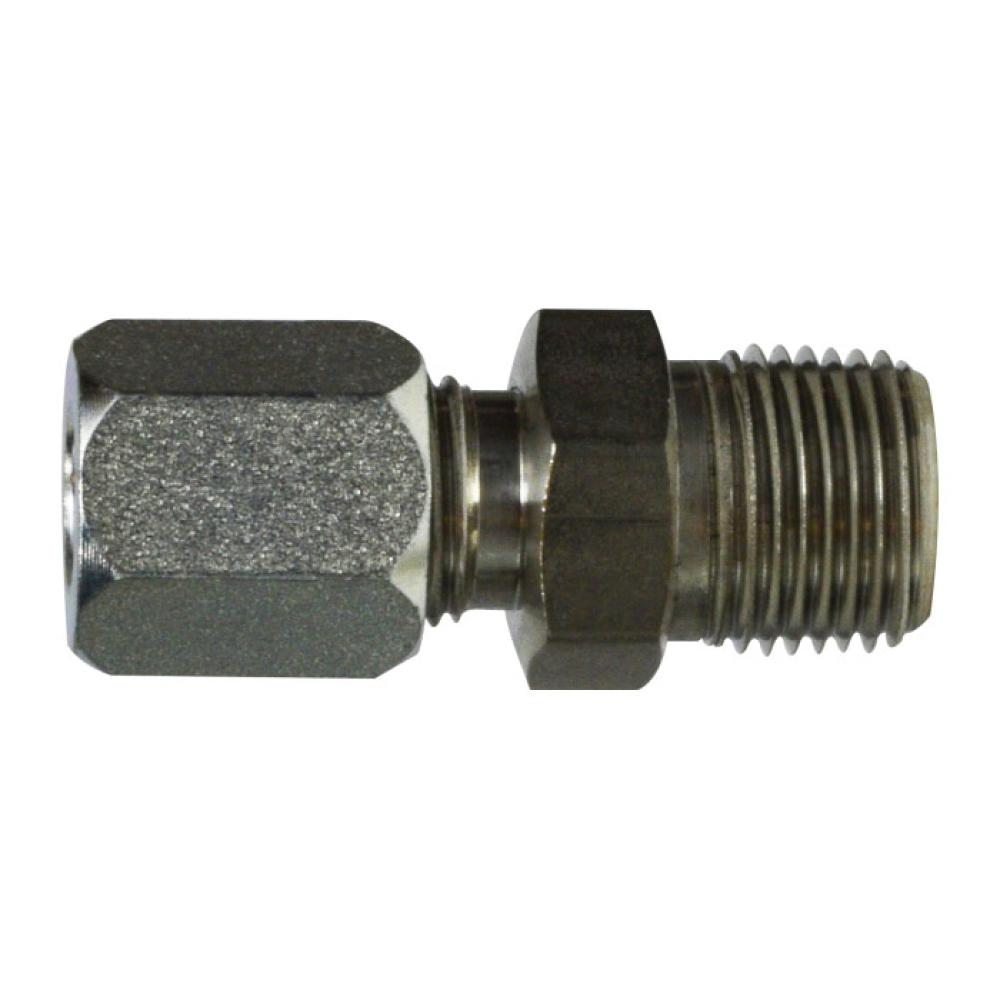

1/4" Tube × 1/2" Male NPT
Box 68; Case 136
SSC240454
5/16" Tube × 1/4" Male NPT
Box 198; Case 396
SSC240464
3/8" Tube × 1/4" Male NPT
Box 150; Case 300
SSC240466
3/8" Tube × 3/8" Male NPT
Box 100; Case 200
SSC240468
3/8" Tube × 1/2" Male NPT
Box 68; Case 136
SSC240488
1/2" Tube × 1/2" Male NPT
Box 68; Case 136
