316 stainless crimp hose fittings for stainless-braided and thermoplastic hydraulic hose.

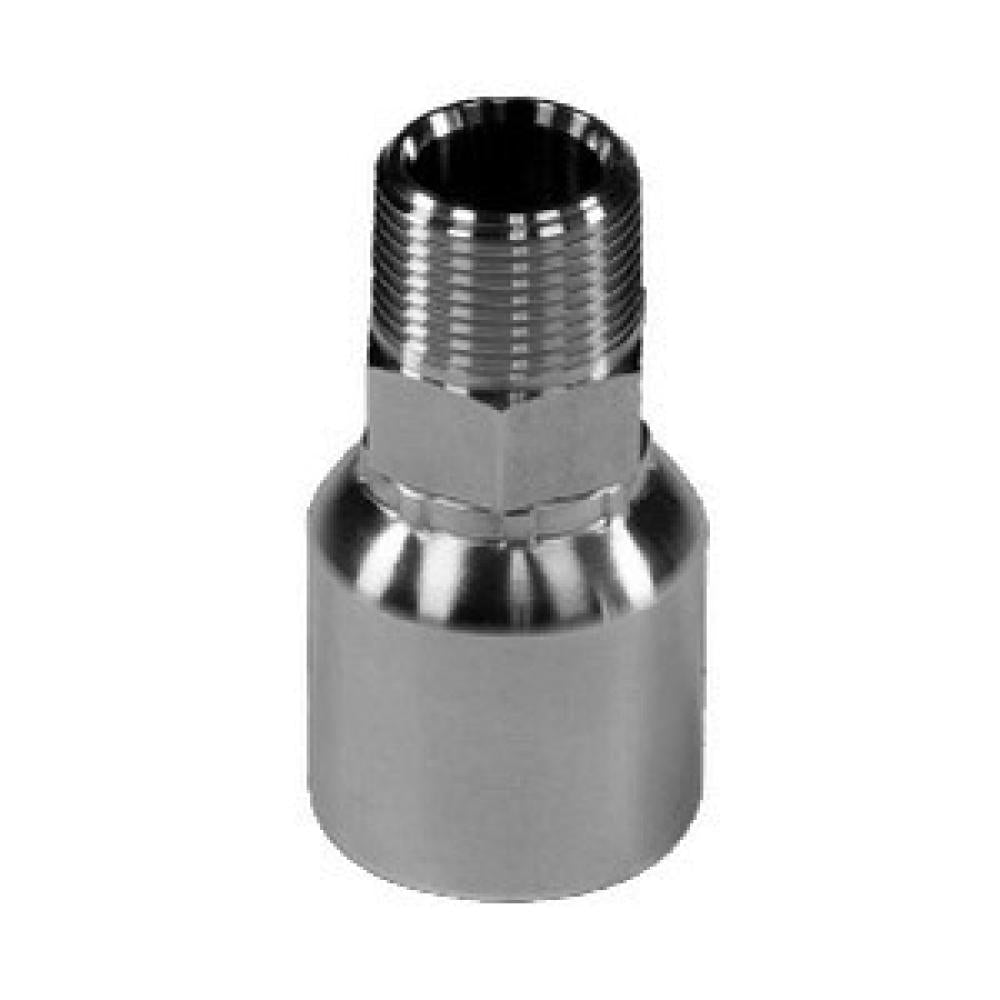

Straight Male Pipe - Rigid in 316 stainless steel, 43 series. 8 sizes stocked, 1/4" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Tooling required — please read before ordering
These are crimp-on hose ends, not reusable field-attachable fittings. Fitting one requires a hydraulic crimping machine, the matching ferrule, and a die set sized to your specific hose. Crimp diameter must be set to the hose and fitting specification — an under- or over-crimped joint will leak or blow off under pressure.
We supply the fitting only. We do not stock crimpers, ferrules or dies, and we cannot crimp assemblies to order. Please order these only if you already have the crimping equipment and the correct ferrule for your hose.
Specifications
Material: 316 stainless steel
Configuration: Straight Male Pipe - Rigid
Series: 43
Product line: SS Crimp Hose Fittings
Size range: 1/4" through 1"
Stocked part numbers: 8
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS43-04-04MP
1/4" Male NPT
Box 100; Case 200
SS43-04-06MP
1/4" Male NPT × 3/8" Male NPT
—
SS43-06-04MP
3/8" Male NPT × 1/4" Male NPT
Box 40; Case 80
SS43-06-06MP
3/8" Male NPT
Box 45; Case 90
SS43-08-08MP
1/2" Male NPT
Box 36; Case 72
SS43-10-08MP
5/8" Male NPT × 1/2" Male NPT
Box 20; Case 40
SS43-12-12MP
3/4" Male NPT
Box 15; Case 30
SS43-16-16MP
1" Male NPT
Box 10; Case 20
