316 stainless crimp hose fittings for stainless-braided and thermoplastic hydraulic hose.

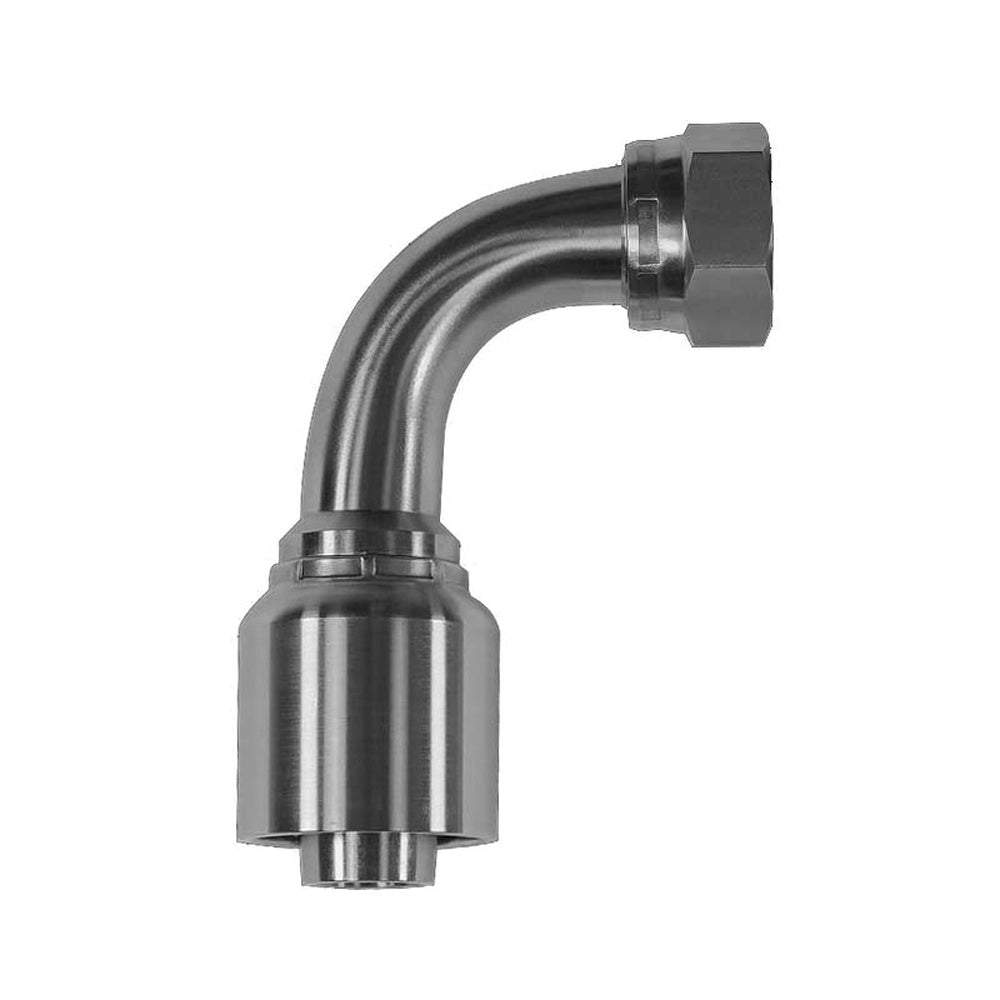

90-Degree Female JIC Elbow in 316 stainless steel, 43 series. 6 sizes stocked, 1/4" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Tooling required — please read before ordering
These are crimp-on hose ends, not reusable field-attachable fittings. Fitting one requires a hydraulic crimping machine, the matching ferrule, and a die set sized to your specific hose. Crimp diameter must be set to the hose and fitting specification — an under- or over-crimped joint will leak or blow off under pressure.
We supply the fitting only. We do not stock crimpers, ferrules or dies, and we cannot crimp assemblies to order. Please order these only if you already have the crimping equipment and the correct ferrule for your hose.
Specifications
Material: 316 stainless steel
Configuration: 90-Degree Female JIC Elbow
Series: 43
Product line: SS Crimp Hose Fittings
Size range: 1/4" through 1"
Stocked part numbers: 6
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS43-04-04FJ90
1/4" Hose × 1/4" Female JIC
Box 60; Case 120
SS43-04-06FJ90
1/4" Hose × 3/8" Female JIC
Box 60; Case 120
SS43-06-06FJ90
3/8" Hose × 3/8" Female JIC
Box 50; Case 100
SS43-08-08FJ90
1/2" Hose × 1/2" Female JIC
Box 25; Case 50
SS43-12-12FJ90
3/4" Hose × 3/4" Female JIC
Box 10; Case 20
SS43-16-16FJ90
1" Hose × 1" Female JIC
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
