316 stainless crimp hose fittings for stainless-braided and thermoplastic hydraulic hose.
Straight Female JIC Swivel in 316 stainless steel, 43 series. 10 sizes stocked, 1/4" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Tooling required — please read before ordering
These are crimp-on hose ends, not reusable field-attachable fittings. Fitting one requires a hydraulic crimping machine, the matching ferrule, and a die set sized to your specific hose. Crimp diameter must be set to the hose and fitting specification — an under- or over-crimped joint will leak or blow off under pressure.
We supply the fitting only. We do not stock crimpers, ferrules or dies, and we cannot crimp assemblies to order. Please order these only if you already have the crimping equipment and the correct ferrule for your hose.
Specifications
Material: 316 stainless steel
Configuration: Straight Female JIC Swivel
Series: 43
Product line: SS Crimp Hose Fittings
Size range: 1/4" through 1"
Stocked part numbers: 10
Part numbers & sizes
Part #
Size / Configuration
Pack quantities

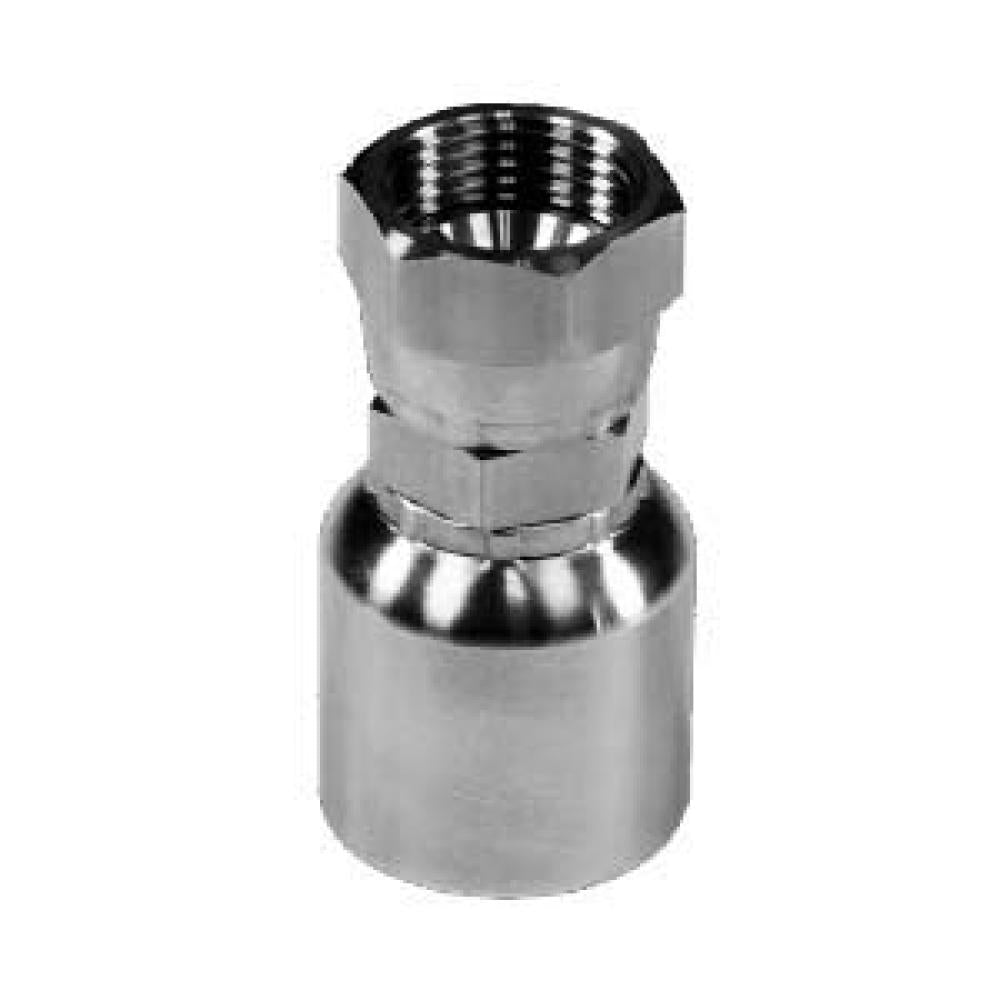

SS43-04-04FJ
1/4" Hose × 1/4" Female JIC
Box 100; Case 200
SS43-04-06FJ
1/4" Hose × 3/8" Female JIC
Box 80; Case 160
SS43-06-04FJ
3/8" Hose × 1/4" Female JIC
Box 45; Case 90
SS43-06-06FJ
3/8" Hose × 3/8" Female JIC
Box 50; Case 100
SS43-06-08FJ
3/8" Hose × 1/2" Female JIC
Box 48; Case 96
SS43-08-08FJ
1/2" Hose × 1/2" Female JIC
Box 45; Case 90
SS43-08-10FJ
1/2" Hose × 5/8" Female JIC
Box 27; Case 54
SS43-10-10FJ
5/8" Hose × 5/8" Female JIC
Box 20; Case 40
SS43-12-12FJ
3/4" Hose × 3/4" Female JIC
Box 16; Case 32
SS43-16-16FJ
1" Hose × 1" Female JIC
Box 12; Case 24
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
