DOT CB PTC Female Elbow in composite. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Composite
Fitting Type: 90-deg Elbow
Connection Type: Push-to-Connect|FPT
Pressure Rating: 145 psi
Temperature Rating: -40 to 140 deg F
Configuration: DOT CB PTC Female Elbow
Product line: Push-to-Connect — D.O.T. Composite Body
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities

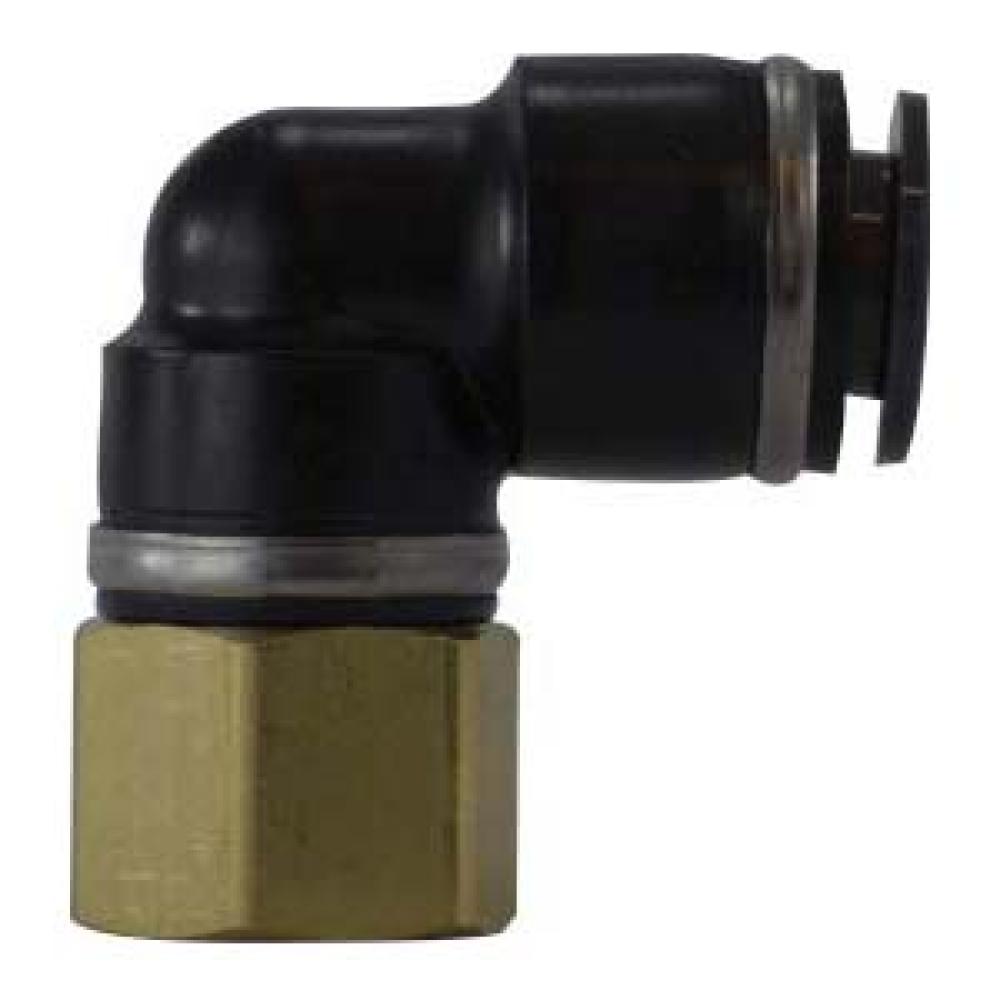

700402SC
1/4" Push-to-Connect × 1/8" Female NPT
Bag 100, Case 200
700404SC
1/4" Push-to-Connect × 1/4" Female NPT
Bag 100, Case 200
700406SC
1/4" Push-to-Connect × 3/8" Female NPT
Bag 100, Case 200
700602C
3/8" Push-to-Connect × 1/8" Female NPT
Bag 100, Case 200
700604SC
3/8" Push-to-Connect × 1/4" Female NPT
Bag 100, Case 200
700606SC
3/8" Push-to-Connect × 3/8" Female NPT
Bag 100, Case 200
700608SC
3/8" Push-to-Connect × 1/2" Female NPT
Bag 100, Case 200
700804C
1/2" Push-to-Connect × 1/4" Female NPT
Bag 100, Case 200
700806SC
1/2" Push-to-Connect × 3/8" Female NPT
Bag 50, Case 100
700808SC
1/2" Push-to-Connect × 1/2" Female NPT
Bag 1000, Case 6000
705302C
5/32" Push-to-Connect × 1/8" Female NPT
Bag 1, Case 100
705304C
5/32" Push-to-Connect × 1/4" Female NPT
Bag 1, Case 100
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
