CB PTC Swivel Female Elbow in composite. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Composite
Fitting Type: 90-deg Elbow
Connection Type: Push-to-Connect|FPT Swivel
Pressure Rating: 150 psi
Configuration: CB PTC Swivel Female Elbow
Product line: Push-to-Connect — Composite Body
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities

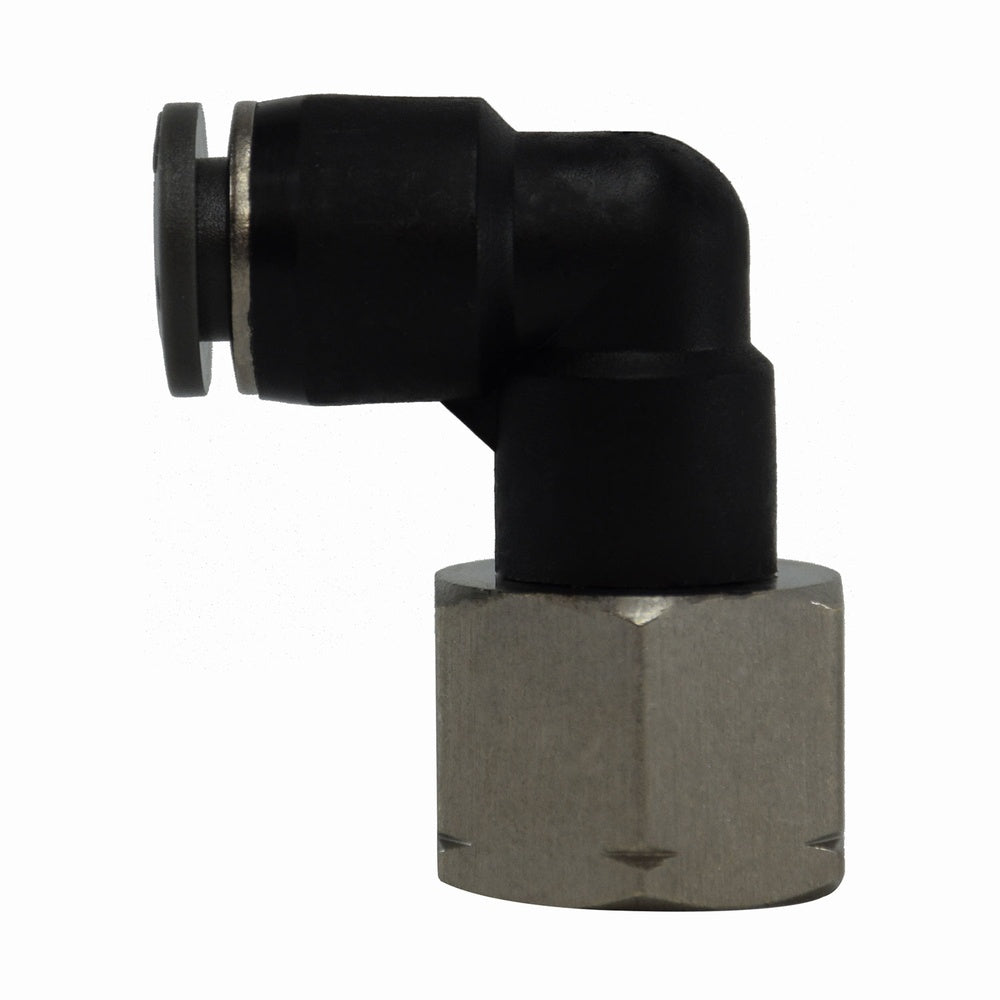

20089C
1/4" Push-to-Connect × 1/8" Female NPT Swivel
Bag 10
20090C
1/4" Push-to-Connect × 1/4" Female NPT Swivel
Bag 5
20091C
3/8" Push-to-Connect × 1/4" Female NPT Swivel
Bag 5
20591C
1/4" Push-to-Connect × 3/8" Female NPT Swivel
Bag 5
20595C
3/8" Push-to-Connect × 3/8" Female NPT Swivel
Bag 5
20596C
3/8" Push-to-Connect × 1/2" Female NPT Swivel
Bag 10
20597C
1/2" Push-to-Connect × 3/8" Female NPT Swivel
Bag 5
20598C
1/2" Push-to-Connect × 1/2" Female NPT Swivel
Bag 10
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
