CB PTC Long Male Elbow in composite. 9 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Composite
Fitting Type: 90-deg Elbow
Connection Type: Push-to-Connect|MPT Swivel
Pressure Rating: 150 psi
Temperature Rating: 32 to 140 deg F
Configuration: CB PTC Long Male Elbow
Product line: Push-to-Connect — Composite Body
Stocked part numbers: 9
Part numbers & options
Part #
Size
Pack quantities

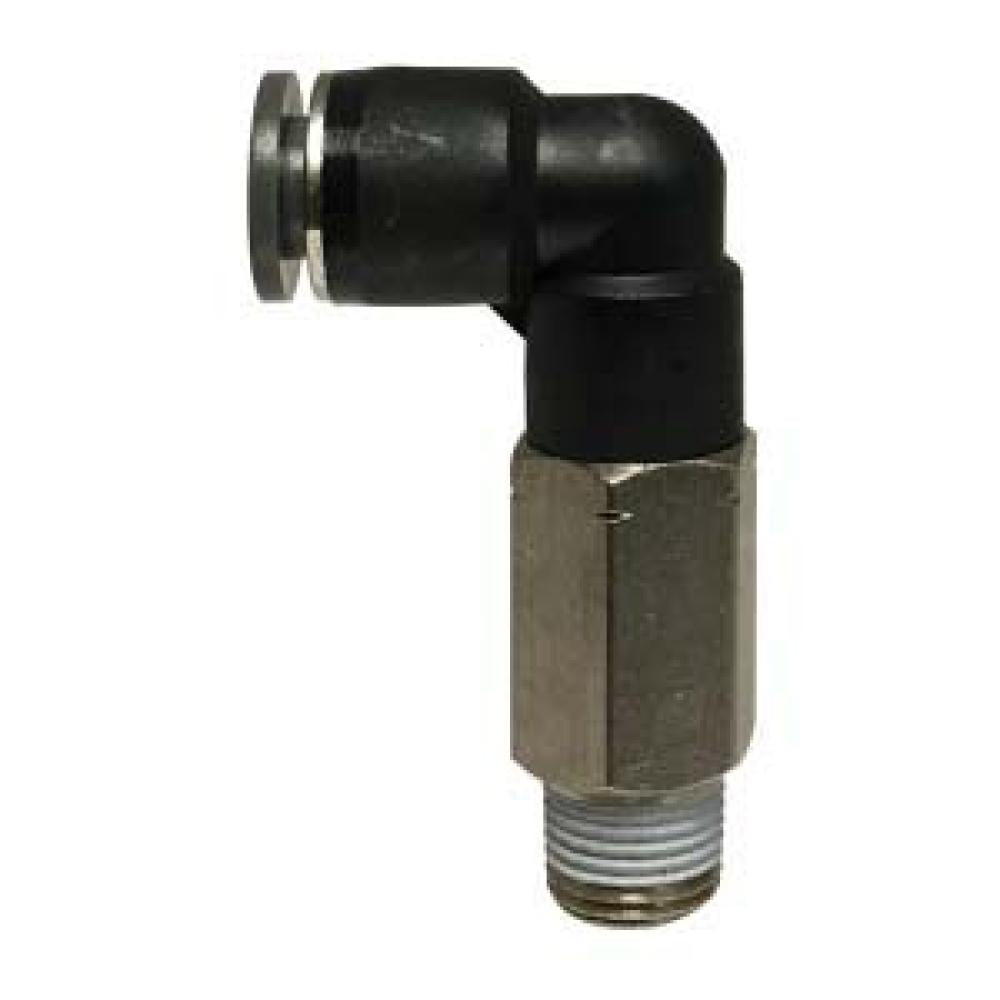

20572C
1/4" Push-to-Connect × 1/8" Male NPT Swivel
Bag 5
20573C
1/4" Push-to-Connect × 1/4" Male NPT Swivel
Bag 5
20574C
1/4" Push-to-Connect × 3/8" Male NPT Swivel
Bag 5
20579C
3/8" Push-to-Connect × 1/4" Male NPT Swivel
Bag 5
20580C
3/8" Push-to-Connect × 3/8" Male NPT Swivel
Bag 5
20581C
3/8" Push-to-Connect × 1/2" Male NPT Swivel
Bag 5
20582C
1/2" Push-to-Connect × 1/4" Male NPT Swivel
Bag 5
20583C
1/2" Push-to-Connect × 3/8" Male NPT Swivel
Bag 5
20584C
1/2" Push-to-Connect × 1/2" Male NPT Swivel
Bag 5
