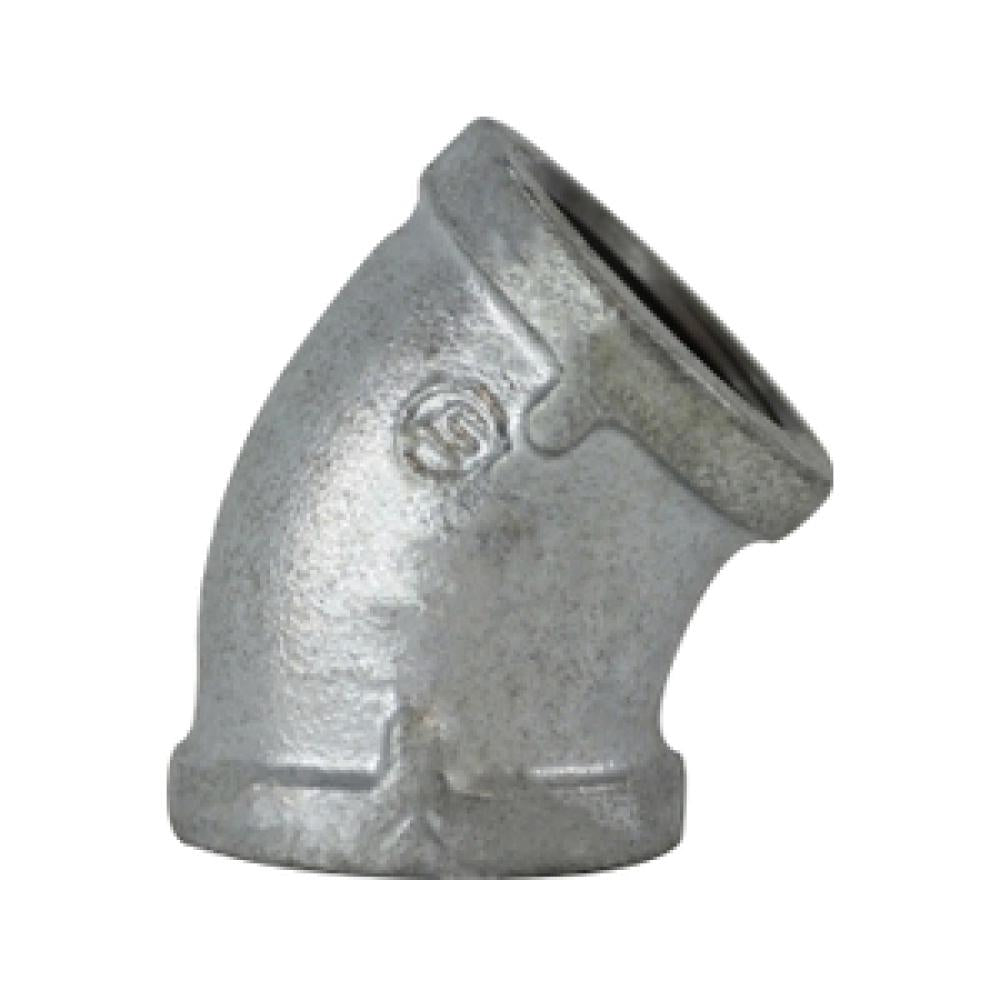

45 Degree Elbow in iron. 13 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Iron
Material Construction: Malleable Iron
Fitting Type: 45 deg Elbow
Connection Type: FPT|FPT
Temperature Rating: -20 to 350 deg F
Dimension Standards: ANSI B 16.3
Finish: Galvanized
Pressure Class: 150 lb
Configuration: 45 Degree Elbow
Product line: Galvanized 150# Malleable Fittings
Stocked part numbers: 13
Part numbers & options
Part #
Size
Pack quantities
64180
1/8" FPT × 1/8" FPT
Box 50, Case 600
64181
1/4" FPT × 1/4" FPT
Box 30, Case 360
64182
3/8" FPT × 3/8" FPT
Box 75, Case 300
64183
1/2" FPT × 1/2" FPT
Box 50, Case 200
64184
3/4" FPT × 3/4" FPT
Box 40, Case 120
64185
1" FPT × 1" FPT
Box 30, Case 120
64186
1-1/4" FPT × 1-1/4" FPT
Box 20, Case 40
64187
1-1/2" FPT × 1-1/2" FPT
Box 10, Case 30
64188
2" FPT × 2" FPT
Box 12, Case 24
64189
2-1/2" FPT × 2-1/2" FPT
Box 9, Case 12
64190
3" FPT × 3" FPT
Case 10
64191
4" FPT × 4" FPT
Box 2, Case 4
64192
6" FPT × 6" FPT
Case 1
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
