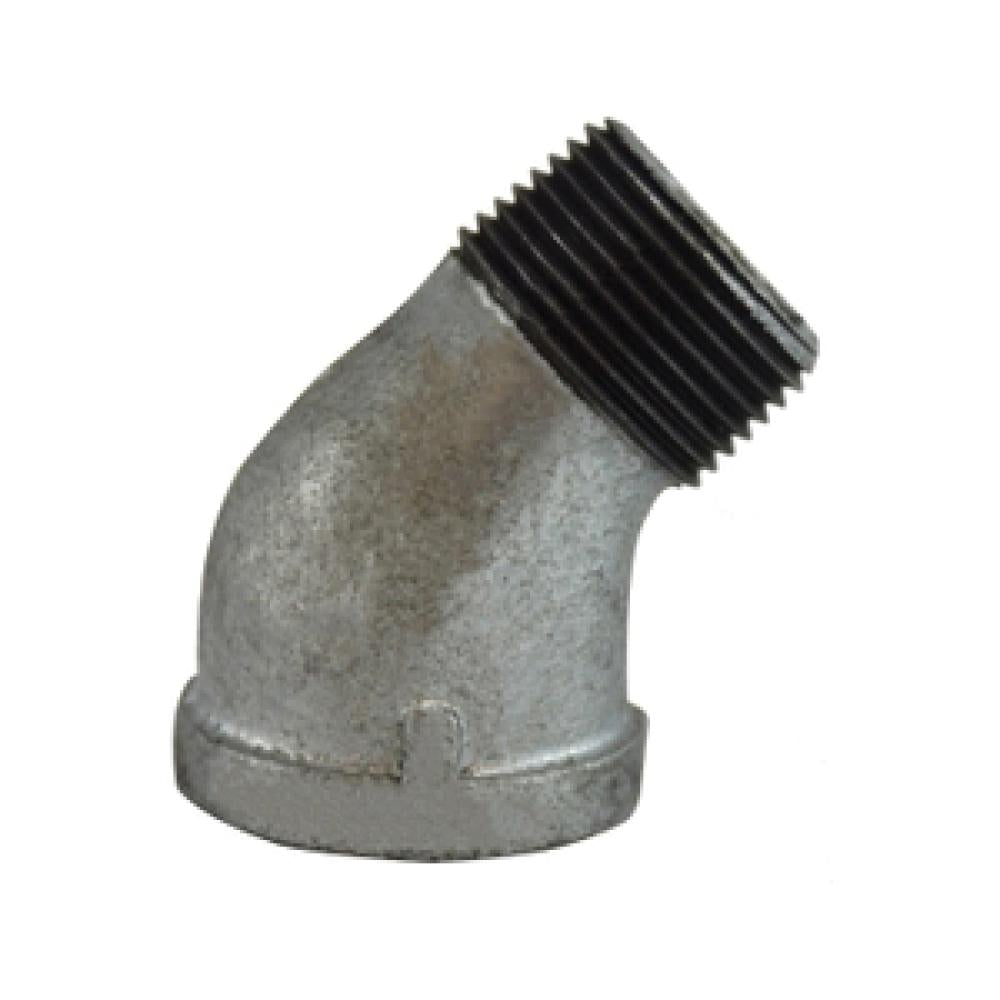

45 Degree Street Elbow in iron. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Iron
Material Construction: Malleable Iron
Fitting Type: 45 deg Elbow
Connection Type: MPT|FPT
Temperature Rating: -20 to 350 deg F
Dimension Standards: ANSI B 16.3
Finish: Galvanized
Pressure Class: 150 lb
Configuration: 45 Degree Street Elbow
Product line: Galvanized 150# Malleable Fittings
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
64200
1/8" MPT × 1/8" FPT
Box 70, Case 840
64201
1/4" MPT × 1/4" FPT
Box 40, Case 480
64202
3/8" MPT × 3/8" FPT
Box 100, Case 400
64203
1/2" MPT × 1/2" FPT
Box 75, Case 225
64204
3/4" MPT × 3/4" FPT
Box 40, Case 120
64205
1" MPT × 1" FPT
Box 25, Case 75
64206
1-1/4" MPT × 1-1/4" FPT
Box 10, Case 40
64207
1-1/2" MPT × 1-1/2" FPT
Box 10, Case 30
64208
2" MPT × 2" FPT
Box 12, Case 24
64209
2-1/2" MPT × 2-1/2" FPT
Box 6, Case 12
64210
3" MPT × 3" FPT
Box 3, Case 6
64211
4" MPT × 4" FPT
Case 4
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
