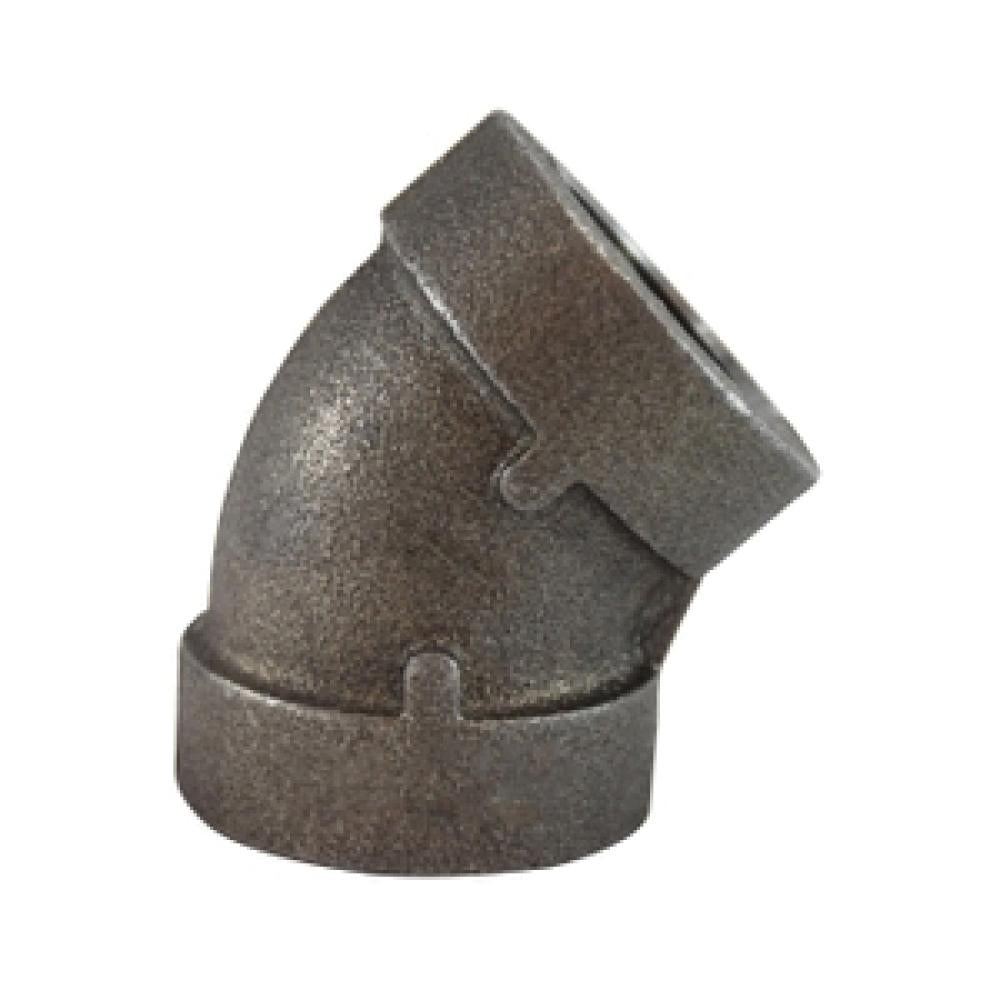

Black 45 Degree Elbow in iron. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Iron
Material Construction: Malleable Iron
Fitting Type: 45 deg Elbow
Connection Type: FPT|FPT
Temperature Rating: -20 to 350 deg F
Dimension Standards: ASME B1.20.1
Finish: Black
Schedule Rating: SCH 80/XH
Pressure Class: 300 lb
Configuration: Black 45 Degree Elbow
Product line: Extra Heavy 300# Malleable Iron
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities
69181
1/4" FPT × 1/4" FPT
Box 60, Case 120
69182
3/8" FPT × 3/8" FPT
Box 50, Case 100
69183
1/2" FPT × 1/2" FPT
Box 30, Case 60
69184
3/4" FPT × 3/4" FPT
Box 20, Case 40
69185
1" FPT × 1" FPT
Box 15, Case 30
69186
1-1/4" FPT × 1-1/4" FPT
Box 15, Case 30
69187
1-1/2" FPT × 1-1/2" FPT
Box 10, Case 20
69188
2" FPT × 2" FPT
Box 6, Case 12
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
