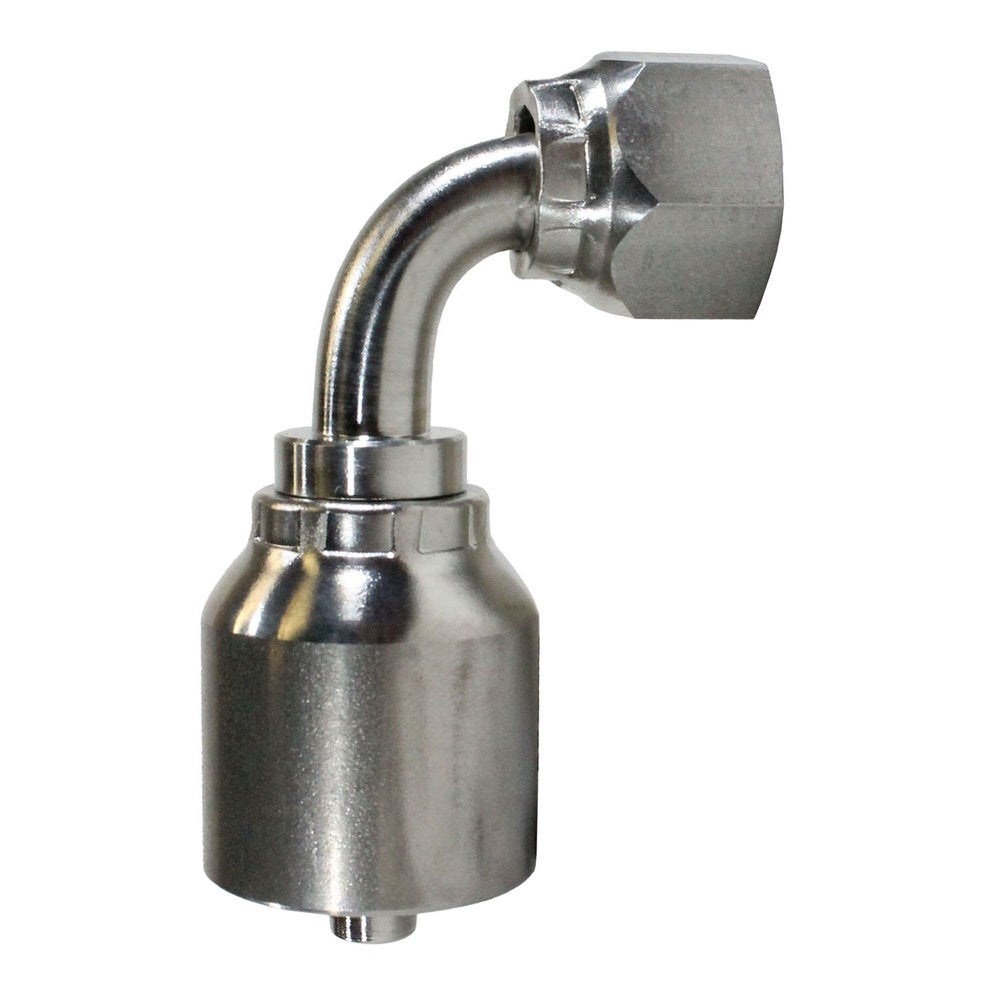

90-Degree Female O-Ring Face Seal — 43 Series, 316 Stainless Steel

316 stainless crimp hose fittings for stainless-braided and thermoplastic hydraulic hose.

90-Degree Female O-Ring Face Seal in 316 stainless steel, 43 series. 3 sizes stocked, 1/4" through 3/4". Select the size you need from the dropdown — each option is a separate stocked part number.

Tooling required — please read before ordering

These are crimp-on hose ends, not reusable field-attachable fittings. Fitting one requires a hydraulic crimping machine, the matching ferrule, and a die set sized to your specific hose. Crimp diameter must be set to the hose and fitting specification — an under- or over-crimped joint will leak or blow off under pressure.

We supply the fitting only. We do not stock crimpers, ferrules or dies, and we cannot crimp assemblies to order. Please order these only if you already have the crimping equipment and the correct ferrule for your hose.

Specifications

• Material: 316 stainless steel
• Configuration: 90-Degree Female O-Ring Face Seal
• Series: 43
• Product line: SS Crimp Hose Fittings
• Size range: 1/4" through 3/4"
• Stocked part numbers: 3

Part numbers & sizes
