Entrance and Anti-Fatigue Matting: Sizing, Backing and Where Each Type Belongs

Almost every facility buys matting the same way: a problem appears at one door or one workstation, somebody orders a stock mat in a stock size, and it either does not fix the problem or it creates a new one. Matting is one of the few purchases where the wrong product is actively worse than no product — a saturated entrance mat is a slip hazard, and a curled anti-fatigue mat is a trip hazard.

The useful way to think about it is by job and by zone, not by catalog category.

The three-zone entrance system

The matting industry's long-standing figure is that the large majority of the soil inside a building walked in on somebody's shoes, and that it takes something on the order of twelve to fifteen feet of walking surface for a person to leave most of it behind. Both numbers are worth treating as directional rather than exact, but the shape of the conclusion holds: a single mat at the door is not a matting system, it is a gesture.

The reason is that soil removal is three sequential jobs, and one mat construction can only do one of them well.

Zone	Where it sits	Job	Typical construction
Zone 1 — Scraper	Outside the door, under a canopy or in a recessed well	Knock off heavy grit, mud, snow and stones before they reach the building	Aggressive rubber or vinyl link, open grid, brush or coarse scraper surface. Debris falls through or below the walking surface.
Zone 2 — Wiper/scraper	Immediately inside the door, or in the vestibule	Take off the remaining fine grit and start pulling moisture	Bi-level or dual-fibre construction — a stiff scraping fibre or rubber nub combined with an absorbent fibre.
Zone 3 — Wiper	Past the vestibule, on the finished floor	Dry the sole so nothing gets tracked onto the floor beyond	Dense absorbent nylon or blended fibre, low profile, smooth or cleated backing to suit the floor.

Use it for: any public entrance, any entrance off a parking lot or yard, and every door that leads from an unpaved or wet area into a finished space. In snow and salt country the scraper zone is the one that pays for itself, because salt crystals are what destroy floor finish.

Where it fails: when the zones are collapsed into one mat. A coarse scraper inside the door scratches the floor with the grit it holds and absorbs nothing. A soft absorbent wiper outside the door fills with grit, mats down, freezes solid in winter, and stops working in a week.

The mistake: buying the right three mats and then not giving them enough length. If the run is short, prioritise it in this order — scraper first if the exterior is dirty or icy, wiper first if the problem is water on a finished floor.

Anti-fatigue matting, and what thickness actually helps

Anti-fatigue matting works by being slightly unstable underfoot. The surface yields a little, the worker makes constant small postural corrections, calf and leg muscles keep contracting, and blood keeps moving. That is the mechanism, and it explains two things people get wrong.

First, softness is not the goal — recovery is. A mat that compresses and stays compressed has stopped working. What matters is that it deflects under weight and pushes back. Closed-cell nitrile and vinyl sponge, solid rubber with a cushion layer, and polyurethane all do this; an open foam pad does it for a few weeks.

Second, thicker is not automatically better. General-purpose anti-fatigue matting lives in the 3/8" to 3/4" range, and around 1/2" covers most standing workstations. Going thicker and softer than the job needs makes the surface unstable enough to be a fall risk, makes it hard to push a cart or a chair across, and makes the ramped edge taller — which is the thing people trip on. Thicker belongs where shifts are long and the floor is concrete, not everywhere.

Use it for: assembly benches, packing stations, machine operation, inspection tables, service counters, labs, and anywhere a person stands in roughly one spot for hours.

Where it fails: in a walkway. Anti-fatigue matting is for standing, not for traffic. Put it in an aisle and it wears out, curls and gets in the way of wheeled equipment.

The mistake: putting an anti-fatigue mat under a chair or a stool, or under the swing of a cart. If the workstation alternates between sitting and standing, you need a mat the chair does not roll onto, or a hard chair mat adjacent to it.

Backing: where slip resistance and chemical resistance are decided

The backing is the part nobody specifies and the part that determines whether the mat stays put, whether it survives the environment, and whether it damages the floor under it.

Backing	Use it for	Where it fails
Nitrile rubber	Oil, grease, animal fats and many chemicals. Kitchens, machine shops, food processing, maintenance areas. Stays flexible in cold. Generally the safest choice on the widest range of floors.	The most expensive of the three. Over-specified in a clean, dry office where vinyl would have done.
Vinyl (PVC)	Dry indoor entrances, offices, retail, light traffic. The economical choice and perfectly adequate in a clean environment.	Hardens and can crack in cold. Degraded by oils and solvents. Plasticisers can discolour some resilient floors and some finishes — check before laying it on vinyl composition tile or a new finish.
Rubber (natural / SBR blends)	Heavy traffic, good grip, durable. Common on scraper mats and heavy industrial matting.	Natural rubber has poor oil resistance. Some rubber compounds stain light-coloured and vinyl flooring — ask specifically whether the compound is non-staining before putting it on a finished floor.

Two more choices sit alongside the compound:

• Smooth backing for hard floors, where the backing grips by contact. Cleated backing for carpet, where small cleats bite in and stop the mat creeping. Put a cleated mat on a hard floor and it slides; put a smooth mat on carpet and it walks down the corridor.
• Drainage or solid surface on the walking side, which is a separate decision from the backing compound and is driven by whether there is liquid on the floor.

On slip resistance: if the environment is wet or greasy and slips are the reason you are buying, ask for the manufacturer's slip-resistance test data and the standard it was tested to, and ask whether the rating is for wet, dry or oily conditions. A mat that is slip resistant dry may not be slip resistant in oil. Do not accept a marketing adjective in place of a test report.

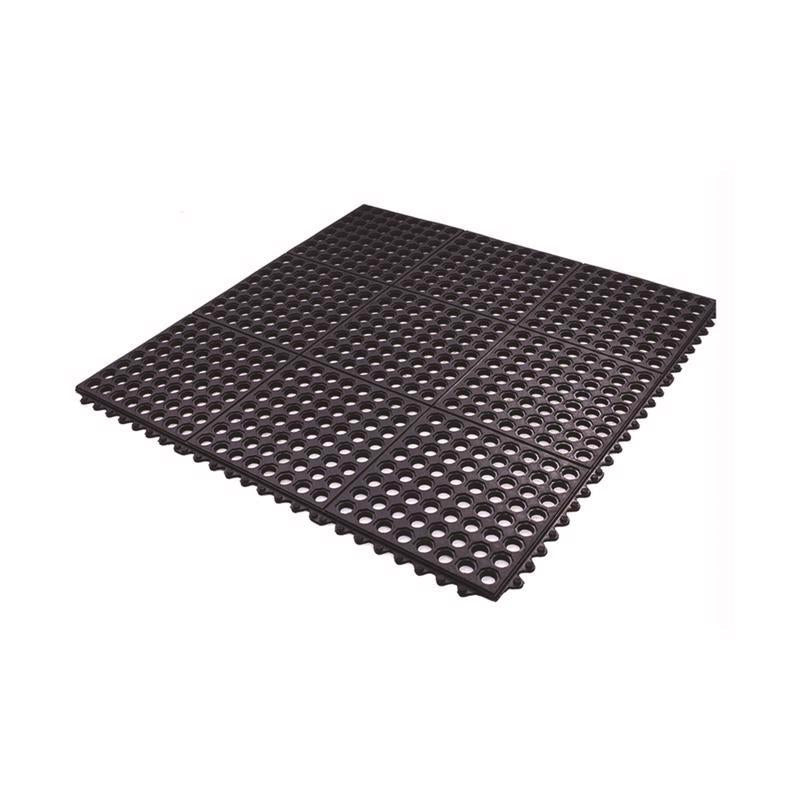

Drainage matting for wet and wash-down areas

Drainage matting is perforated or built as an open grid so liquid falls through and the worker stands above it rather than in it. That is the whole point, and it is why a solid anti-fatigue mat in a wet area is a mistake — it traps a film of water on top and becomes more slippery than the bare floor.

Use it for: commercial kitchens and dish areas, bottling and filling lines, wet process areas, wash-down bays, locker rooms, pool surrounds, and any bench where liquid routinely reaches the floor.

Specify a grease-resistant compound in kitchens. Nitrile is the usual answer. A general-purpose rubber mat in a fryer area breaks down.

Where it fails: when it never gets lifted. Drainage matting only works if what falls through gets cleaned up underneath. A drainage mat left in place for months grows exactly the biofilm it was meant to prevent, and it is then a worse hazard than no mat. Specify sizes and weights your staff can actually lift and hose down on schedule — that usually means several modular sections rather than one large mat.

ESD matting

ESD matting is conductive or static-dissipative, and unlike everything else on this page it is not a standalone product. It is one component of a grounded system.

It only works if it is grounded. The mat needs a ground cord to a verified ground point, and the operator needs to be connected too — through ESD footwear and heel or toe straps for a standing station, or a wrist strap for a seated one. A conductive mat with no ground cord attached is decorative flooring, and this is the most common way ESD matting gets installed wrong.

Use it for: electronics assembly and repair, board handling, test benches, and standing workstations inside a controlled area. Anti-fatigue and ESD are available combined, which is what most standing electronics benches actually want.

Where it fails: if the flooring, footwear and mat are not treated as one system. If the plant runs a formal ESD control program, the program document specifies the resistance ranges and the verification schedule — follow that rather than a catalog description, and budget for periodic testing.

Oily and greasy areas

Oil changes every answer.

• Compound: nitrile. Natural rubber and vinyl both degrade in oil, and a degraded mat curls, which is how the trip hazard starts.
• Surface: drainage or a grease-proof solid surface, depending on volume. If oil pools, it needs somewhere to go.
• Never put absorbent fibre matting in an oily area. Oil-soaked fibre is a fire risk and a slip risk, and it cannot be cleaned back to useful.
• Plan the cleaning before you buy. An oily-area mat that is not degreased on a schedule becomes the slipperiest surface in the building.

Measure to the opening, not to a stock size

Stock sizes exist because they are easy to warehouse, not because they match doorways. The gap between the mat and the wall or the door jamb is where the mat fails: soil bypasses it, the edge gets kicked up, and the exposed floor beside it wears differently from the floor under it.

• Entrances: measure the full width of the traffic opening including the door swing, and go at least that wide. People do not walk single file through the centre of a doorway. Then decide the length from the number of paces you want the mat to capture, not from what the catalog offers.
• Recessed wells: measure the well itself and specify the frame and the depth. A mat that sits proud of a well is a trip hazard, and one that sits low collects water.
• Corridors and runners: measure the run and buy a length, not a sequence of mats. Every joint between two mats is an edge.
• Workstations: measure where the operator actually moves, not just where they stand — the reach to a bin, the step to a printer, the pivot to a bench. Then add for the bevelled border, which is not usable standing surface.
• Obstructions: posts, machine bases, floor boxes, drains. Custom matting can be cut around them; a stock mat gets folded around them, and a folded mat is a hazard.
• Check door clearance before you buy anything thick enough to catch the bottom of a swinging door.

This is the single strongest argument for custom sizing. A mat cut to the opening costs more per square foot than a stock mat and less per year, because it does the job and it does not have to be replaced when somebody trips on the corner.

Edging and ramped borders as a trip-hazard control

Every exposed edge of a mat is a potential trip. The controls are straightforward and they are worth specifying explicitly rather than assuming:

• Bevelled or ramped borders on all exposed sides. On anything in a traffic or wheeled path, ask for the gentlest ramp angle available — a steep bevel on a thick mat catches pallet-jack wheels and toes equally.
• High-visibility borders. A yellow border makes the edge visible and is standard practice around equipment and in low light. It also makes it obvious when a mat has shifted out of position.
• Modular tile systems for irregular footprints. They let you build to a shape, and damaged sections get replaced individually instead of scrapping the whole mat. Order the ramp edges and corner pieces with the tiles — they are separate parts and they are what makes the installation safe.
• Retire curling mats immediately. A curled corner is the most common matting injury and the easiest to prevent. Once a mat curls it does not flatten back out; it is done.
• Anchor mats that move. If a mat creeps, the backing is wrong for the floor. Fix the backing rather than taping the mat down — tape residue is its own floor problem.

Cleaning and rotation

Matting is consumable, and it stops working long before it looks finished.

• Vacuum entrance matting daily in the dirty season, and more often in snow and salt. A saturated or clogged mat has no capacity left and is simply a wet surface.
• Extract or wash periodically, and dry fully before it goes back down. A mat put back damp holds the moisture against the floor underneath.
• Rotate a second set in. The practical way to keep matting working is to own enough that a clean set goes down while the dirty set is being cleaned. This is the reason rental programs exist; it also works perfectly well with owned matting and a schedule.
• Lift drainage and anti-fatigue matting to clean under it, on a schedule someone owns. Under the mat is where the problem accumulates.
• Replace on wear, not on appearance. Fibre that has matted flat, sponge that no longer springs back, and any curled or cracked edge are all failures regardless of how the mat looks from across the room.

Quick reference

Area	Condition	What to specify
Exterior of main entrance	Grit, mud, snow, salt	Scraper — rubber or vinyl link, open grid, drains through. Rubber backing.
Vestibule	Residual grit and water	Bi-level wiper/scraper, sized to the full opening width.
Interior finished floor	Moisture on soles	Dense absorbent wiper, low profile. Smooth backing on hard floor, cleated on carpet.
Standing workstation on concrete	Fatigue	Anti-fatigue, roughly 1/2", bevelled all exposed sides, nitrile if any oil is present.
Commercial kitchen	Water and grease	Drainage matting, grease-resistant nitrile, modular sections light enough to lift daily.
Wash-down or wet process	Standing water	Drainage matting with a cleaning schedule that includes under the mat.
Machine shop / maintenance bay	Oil, coolant, swarf	Nitrile, drainage or grease-proof solid, high-visibility border.
Electronics bench	Static-sensitive work	Combined ESD and anti-fatigue, with ground cord, ESD footwear and a verification schedule.
Corridor or aisle	Traffic and wheeled equipment	Runner cut to the run length, low profile, gentle ramp edges. Not anti-fatigue.

What to have ready when you ask for a quote

• The actual measurements of each opening or workstation, and a note on whether it is square.
• What the floor is — sealed concrete, VCT, tile, epoxy, carpet — and whether it has a finish on it that can be stained.
• What is on the floor: water, oil, coolant, chemicals, food, salt, or nothing.
• Traffic type: foot only, pallet jacks, carts, forklifts.
• Hours of standing, if it is an anti-fatigue application.
• Whether there is a recessed well, and its depth.
• Obstructions to cut around, with dimensions.
• Any requirement imposed on you: ESD program, food-safety audit, slip-resistance testing, fire rating.
• How it will be cleaned and by whom. This changes the recommendation more than people expect.
