SS Barb x MIP Elbow in stainless steel. 11 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Stainless Steel
Material Construction: 316 Stainless Steel
Fitting Type: 90-deg Elbow
Connection Type: HB|MPT
Maximum Operating Pressure: 150 psi
Operating Temperature: -40 to 160 °F
Configuration: SS Barb x MIP Elbow
Product line: Stainless Steel Hose Barbs
Stocked part numbers: 11
Part numbers & options
Part #
Type
Pack quantities

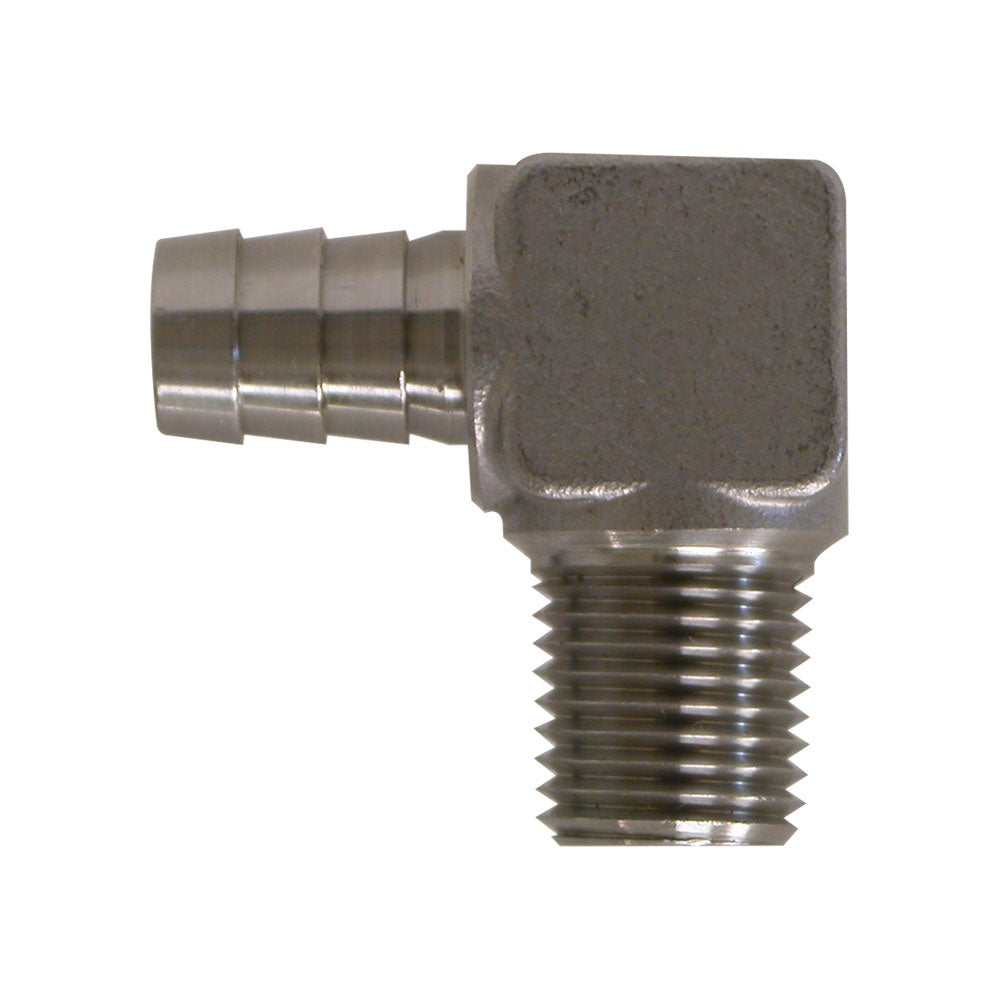

32038SS
1/4 x 1/8 Stainless Steel Barb Elbow
Bag 25, Case 500
32039SS
1/4 x 1/4 Stainless Steel Barb Elbow
Bag 25, Case 500
32041SS
3/8 x 1/4 Stainless Steel Barb Elbow
Bag 25, Case 500
32042SS
3/8 x 3/8 Stainless Steel Barb Elbow
Bag 25, Case 500
32043SS
1/2 x 3/8 Barb x Male Pipe Stainless Steel Elbow
Bag 25, Case 500
32311SS
1/2 x 1/2 Stainless Steel Barb Elbow
Bag 25, Case 250
32314SS
3/4 x 3/4 316SS Barbxmip Ell
—

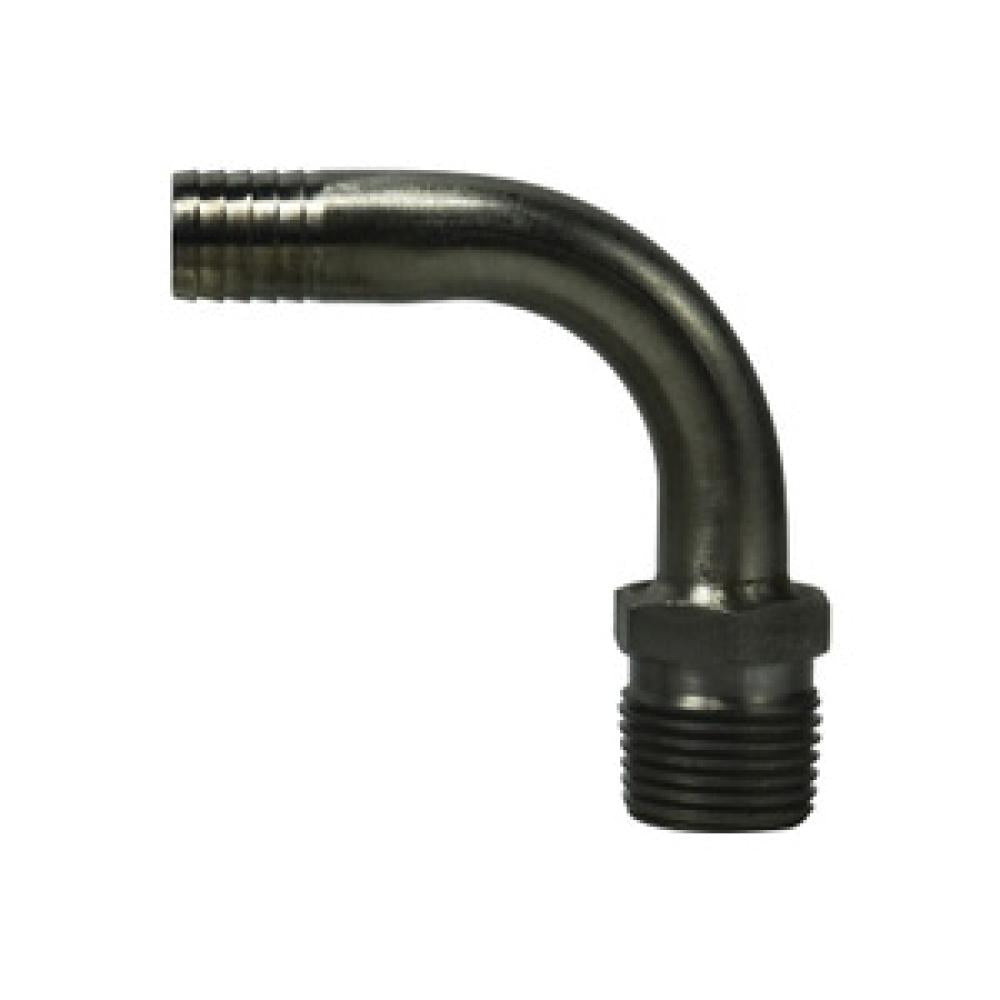

34610
1/4 Stainless Steel Barb x 1/8 Male Pipe Elbow
—
34611
3/8 Stainless Steel Barb x 1/4 Male Pipe Elbow
Bag 10
34612
3/8 Stainless Steel Barb x Male Pipe Elbow
—
34613
1/2 Stainless Steel Barb x Male Pipe Elbow
—
