Forged Female Branch Tee in brass. 9 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Forged Brass
Fitting Type: Tee
Connection Type: Male SAE Flared|Male SAE Flared|FIP
Configuration: Forged Female Branch Tee
Product line: SAE 45 Deg Flare
Stocked part numbers: 9
Part numbers & options
Part #
Size
Pack quantities
04058-040402
1/4" SAE 45 deg Male Flared × 1/4" SAE 45 deg Male Flared × 1/8" FIP
Case 400
04058-060612
3/8" SAE 45 deg Male Flared × 3/8" SAE 45 deg Male Flared × 3/4" FIP
—
04058-080606
1/2" SAE 45 deg Male Flared × 3/8" SAE 45 deg Male Flared × 3/8" FIP
—
04058-080812
1/2" SAE 45 deg Male Flared × 1/2" SAE 45 deg Male Flared × 3/4" FIP
—
10429
1/4" SAE 45 deg Male Flared × 1/4" SAE 45 deg Male Flared × 1/4" FIP
Case 400

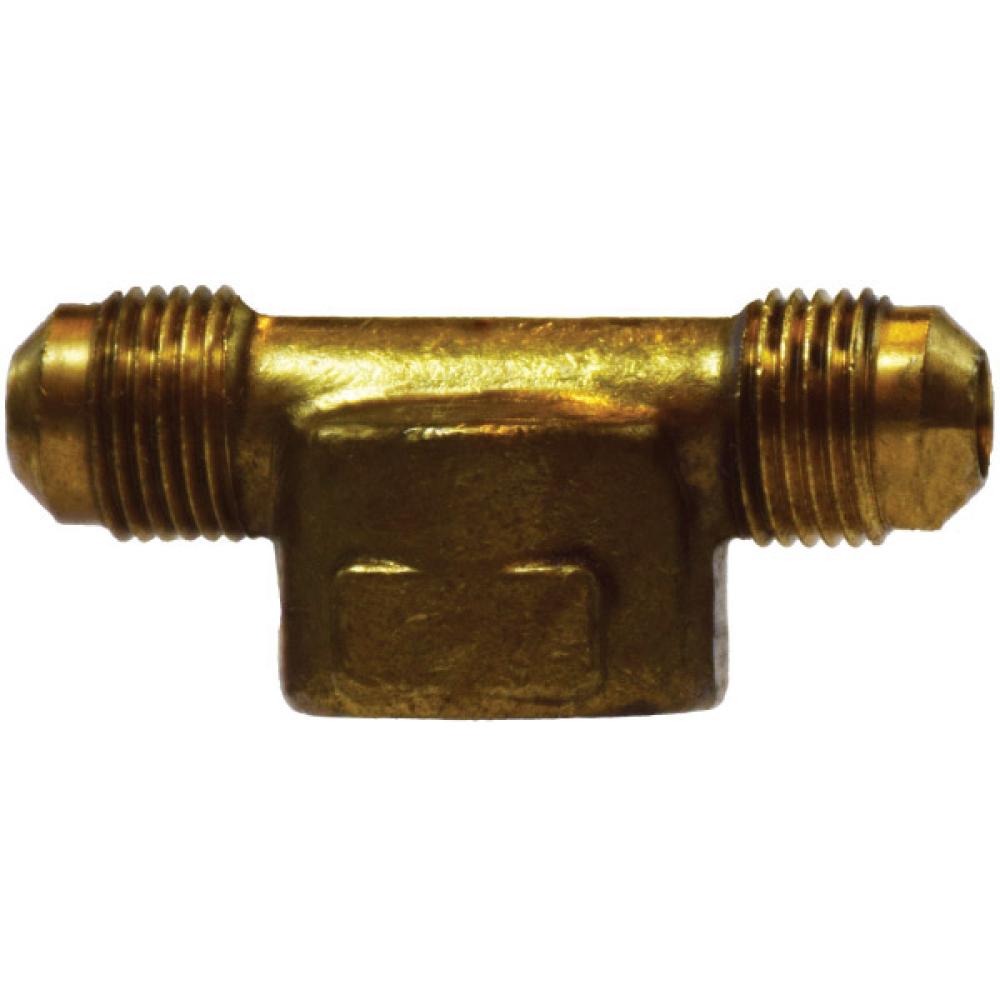

10430
3/8" SAE 45 deg Male Flared × 3/8" SAE 45 deg Male Flared × 1/4" FIP
Case 275
10431
3/8" SAE 45 deg Male Flared × 3/8" SAE 45 deg Male Flared × 3/8" FIP
Box 200, Case 200
10432
3/8" SAE 45 deg Male Flared × 3/8" SAE 45 deg Male Flared × 1/2" FIP
Case 200

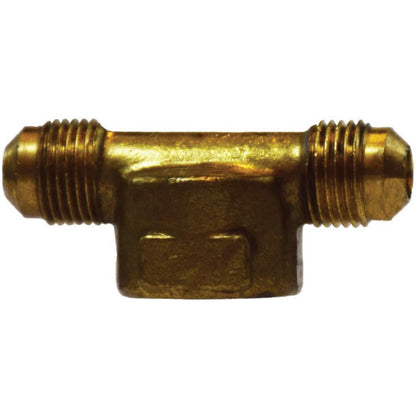

10434
1/2" SAE 45 deg Male Flared × 1/2" SAE 45 deg Male Flared × 1/2" FIP
Case 175
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
