NP PTC METRIC SWIVEL MALE BRANCH TEE in brass. 16 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Fitting Type: Tee
Connection Type: Push-to-Connect|Push-to-Connect|Male Global Swivel
Pressure Rating: 290 psi
Finish: Nickel-Plated
Configuration: NP PTC METRIC SWIVEL MALE BRANCH TEE
4 mm Push-to-Connect × 4 mm Push-to-Connect × 1/8" Male Global Swivel
—
20682N
6 mm Push-to-Connect × 6 mm Push-to-Connect × 1/8" Male Global Swivel
—
20683N
6 mm Push-to-Connect × 6 mm Push-to-Connect × 1/4" Male Global Swivel
—
20684N

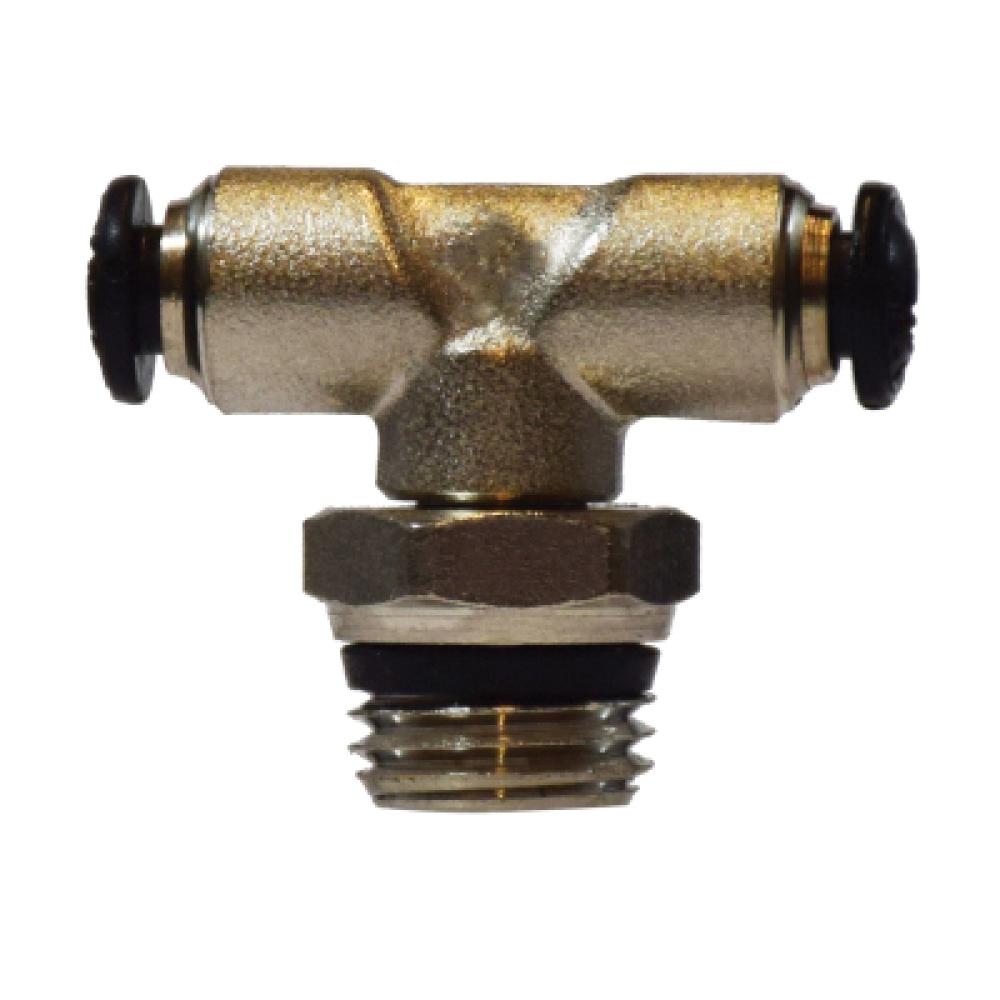

8 mm Push-to-Connect × 8 mm Push-to-Connect × 1/4" Male Global Swivel
—
20686N
10 mm Push-to-Connect × 10 mm Push-to-Connect × 1/4" Male Global Swivel
—
20687N
10 mm Push-to-Connect × 10" Push-to-Connect × 3/8 mm Male Global Swivel
—
20688N
12 mm Push-to-Connect × 12 mm Push-to-Connect × 3/8" Male Global Swivel
—
20689N
12 mm Push-to-Connect × 12 mm Push-to-Connect × 1/2" Male Global Swivel
—
20690N
8 mm Push-to-Connect × 8" Push-to-Connect × 3/8 mm Male Global Swivel
—
20691N
8 mm Push-to-Connect × 8" Push-to-Connect × 1/2 mm Male Global Swivel
—
20716N
4 mm Push-to-Connect × 4 mm Push-to-Connect × 1/4" Male Global Swivel
—
20717N
5 mm Push-to-Connect × 5" Push-to-Connect × 1/8 mm Male Global Swivel
—
20718N
14 mm Push-to-Connect × 14 mm Push-to-Connect × 3/8" Male Global Swivel
—
20719N
14 mm Push-to-Connect × 14 mm Push-to-Connect × 1/2" Male Global Swivel
—
20809N
8 mm Push-to-Connect × 8 mm Push-to-Connect × 1/8" Male Global Swivel
—
20810N
10 mm Push-to-Connect × 10 mm Push-to-Connect × 1/2" Male Global Swivel
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
