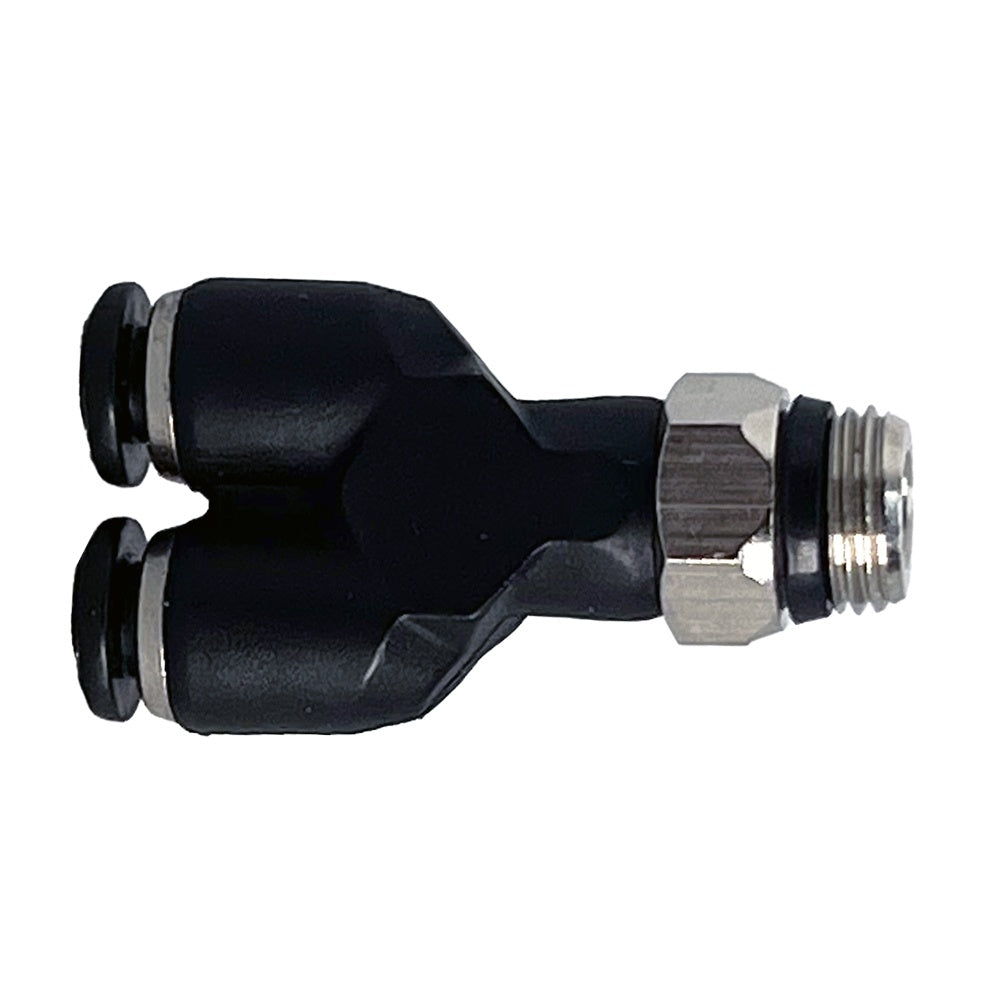

CB PTC Swivel Male Wye - Metric in composite. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Composite
Fitting Type: Wye
Connection Type: Push-to-Connect|Push-to-Connect|Male Global Swivel
Pressure Rating: 150 psi
Temperature Rating: 32 to 140 deg F
Configuration: CB PTC Swivel Male Wye - Metric
Product line: Push-to-Connect — Composite Body
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
20816
4 mm Push-to-Connect × 4 mm Push-to-Connect × 1/8" Male Global Thread Swivel
—
20817
6 mm Push-to-Connect × 6 mm Push-to-Connect × 1/8" Male Global Thread Swivel
—
20818
6 mm Push-to-Connect × 6 mm Push-to-Connect × 1/4" Male Global Thread Swivel
—
20819
8 mm Push-to-Connect × 8 mm Push-to-Connect × 1/8" Male Global Thread Swivel
—
20820
8 mm Push-to-Connect × 8 mm Push-to-Connect × 1/4" Male Global Thread Swivel
—
20821
4 mm Push-to-Connect × 4 mm Push-to-Connect × 1/4" Male Global Thread Swivel
—
20822
8 mm Push-to-Connect × 8 mm Push-to-Connect × 3/8" Male Global Thread Swivel
—
20823
10 mm Push-to-Connect × 10 mm Push-to-Connect × 1/4" Male Global Thread Swivel
—
20824
10 mm Push-to-Connect × 10 mm Push-to-Connect × 3/8" Male Global Thread Swivel
—
20825
10 mm Push-to-Connect × 10 mm Push-to-Connect × 1/2" Male Global Thread Swivel
—
20826
12 mm Push-to-Connect × 12 mm Push-to-Connect × 3/8" Male Global Thread Swivel
—
20827
12 mm Push-to-Connect × 12 mm Push-to-Connect × 1/2" Male Global Thread Swivel
—
