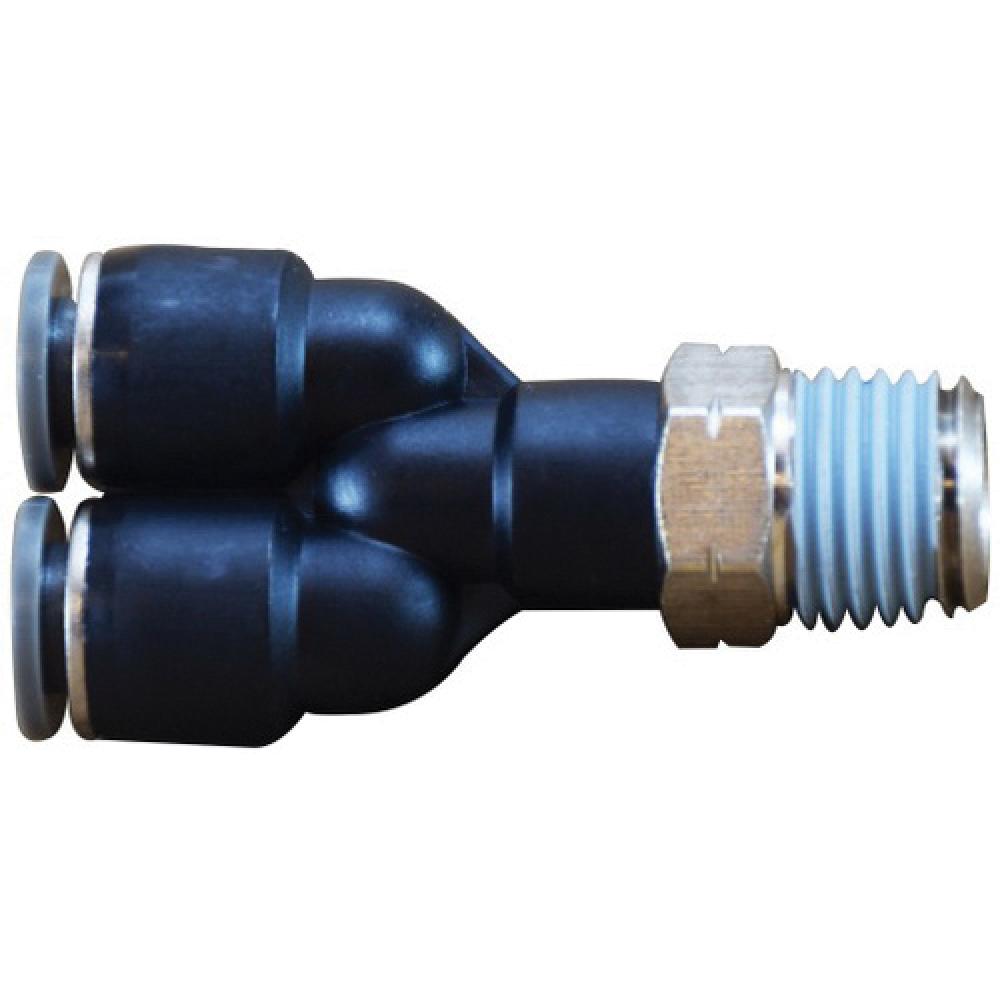

CB PTC Swivel Male Wye in composite. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Composite
Fitting Type: Wye
Pressure Rating: 150 psi
Temperature Rating: 32 to 140 deg F
Configuration: CB PTC Swivel Male Wye
Product line: Push-to-Connect — Composite Body
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
20187C
1/4" Push-to-Connect × 1/4" Push-to-Connect × 1/8" Male NPT Swivel
Bag 10
20188C
3/8" Push-to-Connect × 3/8" Push-to-Connect × 1/4" Male NPT Swivel
Bag 10
20189C
3/8" Push-to-Connect × 3/8" Push-to-Connect × 3/8" Male NPT Swivel
Bag 5, Box 10, Case 150
20193C
3/8" Push-to-Connect × 3/8" Push-to-Connect × 1/2" Male NPT Swivel
Bag 10
20194C
1/2" Push-to-Connect × 1/2" Push-to-Connect × 3/8" Male NPT Swivel
Bag 10
20195C
1/2" Push-to-Connect × 1/2" Push-to-Connect × 1/2" Male NPT Swivel
Bag 10
20557C
1/4" Push-to-Connect × 1/4" Push-to-Connect × 1/4" Male NPT Swivel
Bag 5
20836C
1/4" Push-to-Connect × 1/4" Push-to-Connect × 10-32 UNF Male Swivel
—
20837C
5/16" Push-to-Connect × 5/16" Push-to-Connect × 1/8" Male NPT Swivel
—
20838C
5/16" Push-to-Connect × 5/16" Push-to-Connect × 1/4" Male NPT Swivel
—
20839C
5/32" Push-to-Connect × 5/32" Push-to-Connect × 1/8" Male NPT Swivel
—
20840C
5/32" Push-to-Connect × 5/32" Push-to-Connect × 1/4" Male NPT Swivel
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
