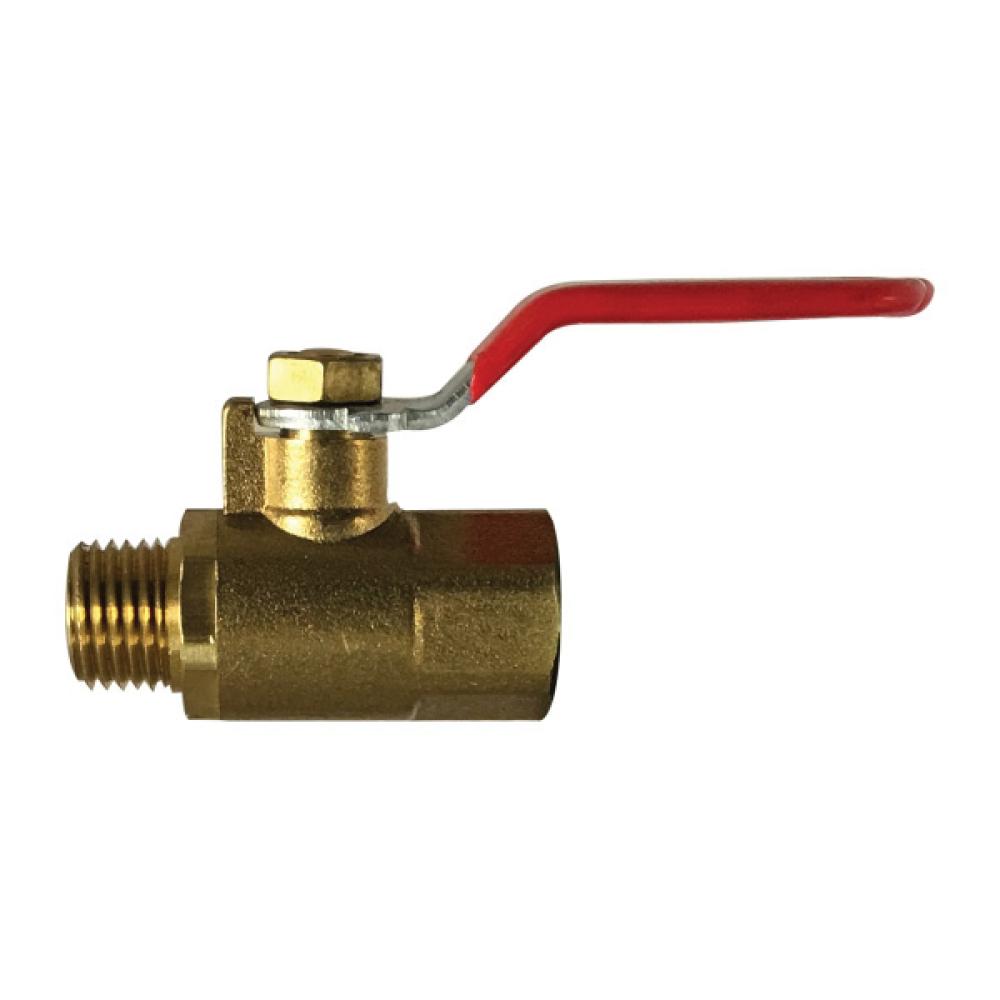

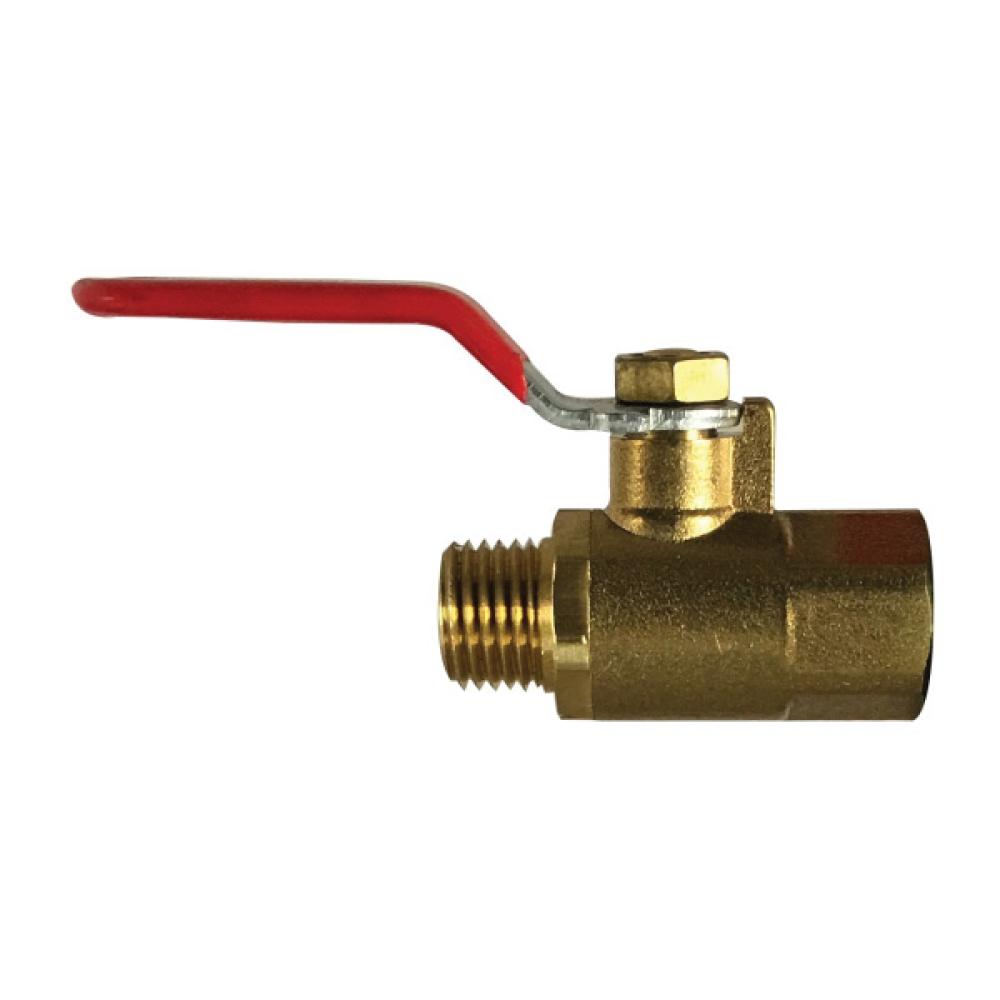

Male x Female Mini Ball Valve in forged brass. 6 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Body Material: Forged Brass
Connection Type: MPT x FPT
Pressure Rating: 200 psi WOG
Temperature Rating: -20 to 250 °F
Seal Material: PTFE
Operator Type: 1/2-Turn Handle
Lead-Free/Contains Lead: Contains Lead
Configuration: Male x Female Mini Ball Valve
Product line: Mini Ball Valve
Stocked part numbers: 6
Part numbers & options
Part #
Size
Pack quantities
944100
1/8 x 1/4
Box 50, Case 200
944101
1/4"
Box 50, Case 500
944102
1/4 x 3/8
Case 500
944103
3/8"
Box 50, Case 200
944104
1/2"
Box 50, Case 200
944106
1/8"
Box 50, Case 500
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
