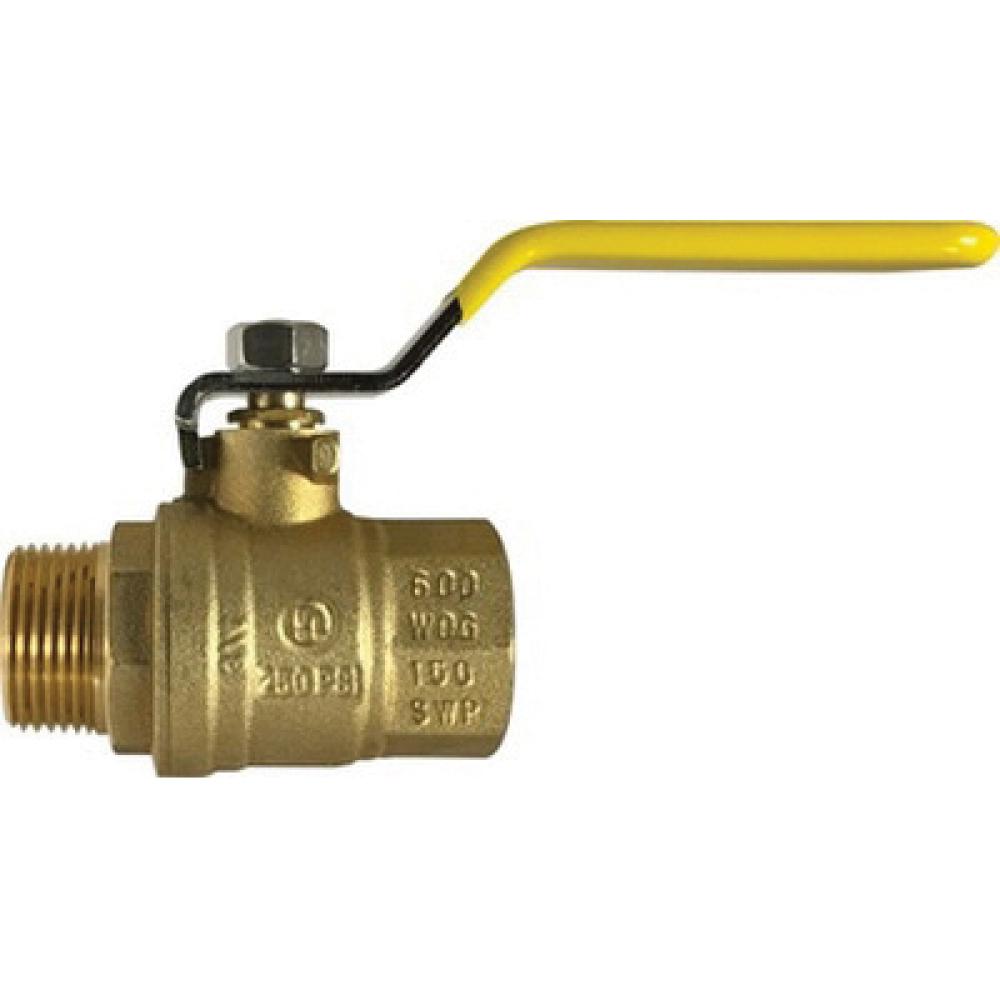

MIP X FIP 600# Full Port Ball Valve in forged brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Body Material: Forged Brass
Connection Type: MPT x FPT
Pressure Rating: 600 psi WOG
Temperature Rating: -20 to 248 °F
Seal Material: PTFE
Operator Type: 1/4-Turn Handle
Lead-Free/Contains Lead: Contains Lead
Configuration: MIP X FIP 600# Full Port Ball Valve
Product line: Male x Female Ball Valves
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities
948170
1/4"
Box 70, Case 140
948171
3/8"
Box 70, Case 140
948172
1/2"
Box 50, Case 100
948173
3/4"
Box 30, Case 60
948174
1"
Box 20, Case 40
948175
1-1/4"
Box 12, Case 24
948176
1-1/2"
Box 9, Case 18
948177
2"
Box 6, Case 12
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
