Our 316 stainless JIC 37° adapter line covers the full range of union, pipe, bulkhead and tee configurations used in hydraulic and instrumentation plumbing.
Male JIC 37° Union in 316 stainless steel, Our SS2403 series. 16 sizes stocked, 1/8" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° Union
Series: SS2403
Product line: SS JIC Adapters
Size range: 1/8" through 1"
Stocked part numbers: 16
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS2403-02-02
1/8" Male JIC
—

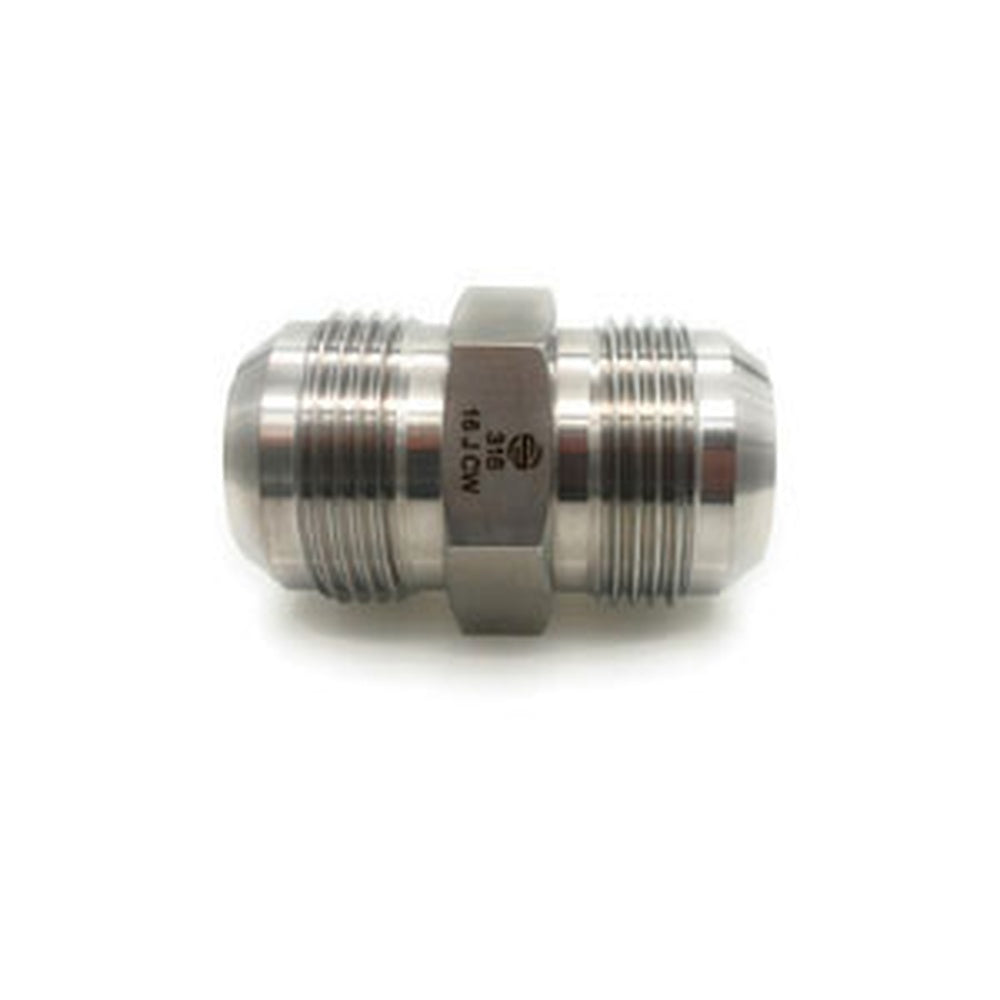

SS2403-04-04
1/4" Male JIC
Box 300; Case 600
SS2403-05-05
5/16" Male JIC
Box 205; Case 410
SS2403-06-04
3/8" Male JIC × 1/4" Male JIC
Box 205; Case 410
SS2403-06-06
3/8" Male JIC
Box 205; Case 410
SS2403-08-04
1/2" Male JIC × 1/4" Male JIC
Box 120; Case 240
SS2403-08-06
1/2" Male JIC × 3/8" Male JIC
Box 120; Case 240
SS2403-08-08
1/2" Male JIC
Box 120; Case 240
SS2403-10-08
5/8" Male JIC × 1/2" Male JIC
Box 60; Case 120
SS2403-10-10
5/8" Male JIC
Box 60; Case 120
SS2403-12-04
3/4" Male JIC × 1/4" Male JIC
Box 54; Case 108
SS2403-12-06
3/4" Male JIC × 3/8" Male JIC
Box 54; Case 108
SS2403-12-08
3/4" Male JIC × 1/2" Male JIC
Box 50; Case 100
SS2403-12-12
3/4" Male JIC
Box 42; Case 84
SS2403-16-12
1" Male JIC × 3/4" Male JIC
Box 22; Case 44

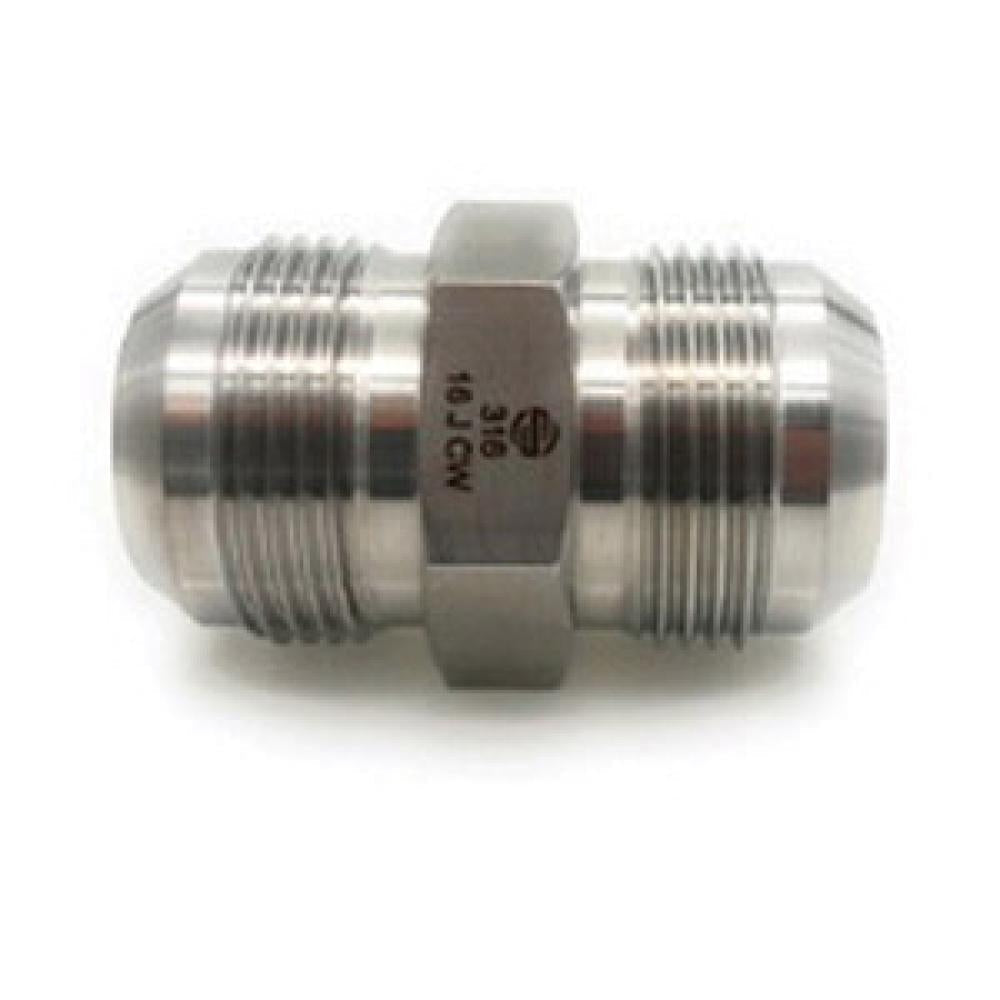

SS2403-16-16
1" Male JIC
Box 24; Case 48
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
