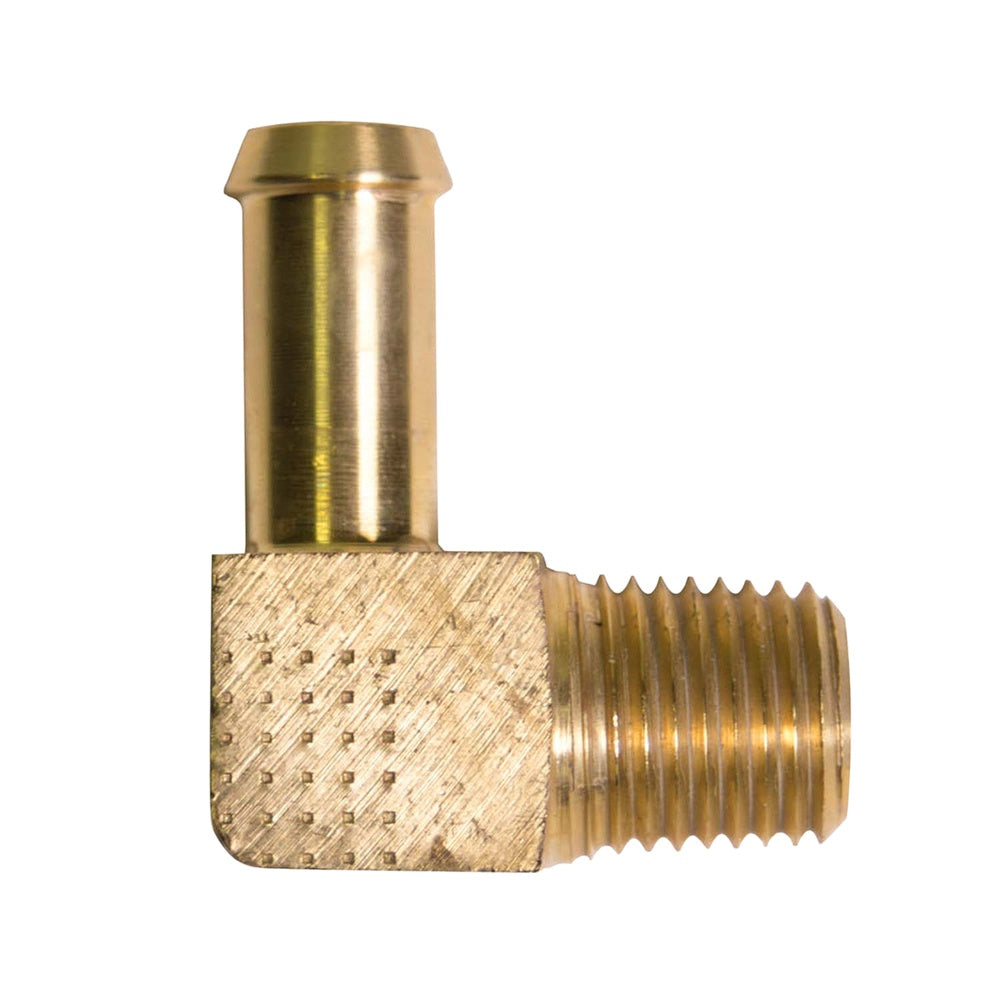

Single Barb 90-Degree Male Elbow in brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Fitting Type: 90-deg Elbow
Connection Type: SB|MPT
Maximum Operating Pressure: 150 psi
Operating Temperature: -40 to 160 °F
Configuration: Single Barb 90-Degree Male Elbow
Product line: Hose Barb
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities
08720-0606
3/8" Single Barb × 3/8" Male NPT
—
08720-0806
1/2" Single Barb × 3/8" Male NPT
Bag 25, Case 250
08720-1006
5/8" Single Barb × 3/8" Male NPT
Bag 25, Case 250
38860
1/4" Single Barb × 1/8" Male NPT
Bag 100, Case 1000
38862
5/16" Single Barb × 1/8" Male NPT
Bag 50, Case 500
38864
5/16" Single Barb × 1/4" Male NPT
Case 500
38866
3/8" Single Barb × 1/8" Male NPT
Bag 50, Case 500
38868
3/8" Single Barb × 1/4" Male NPT
Bag 35, Case 350
