NP PTC METRIC UNION ELBOW — Brass Fittings

NP PTC METRIC UNION ELBOW — Brass Fittings

$7.15 USD
$7.15 USD
Sale Sold out
Shipping calculated at checkout.

20206N

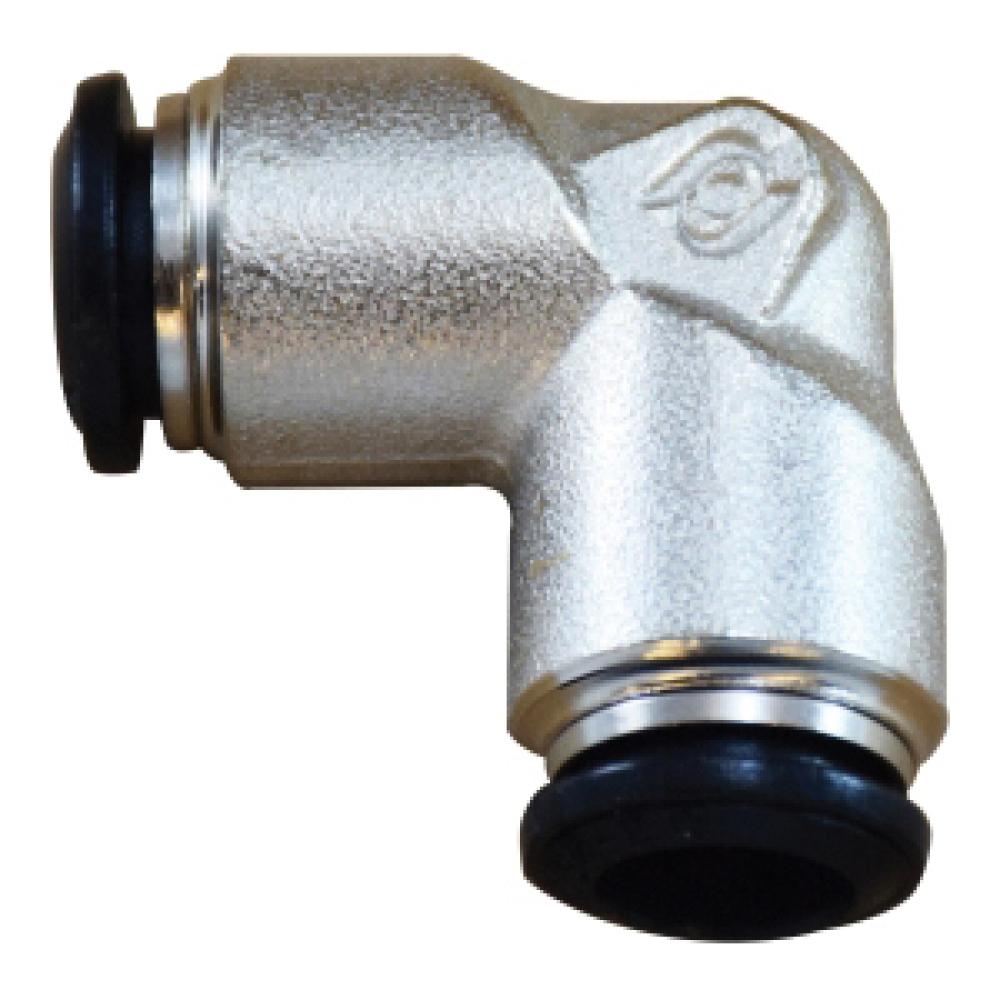

NP PTC METRIC UNION ELBOW in brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.

Specifications

  • Material: Brass
  • Fitting Type: 90-deg Elbow
  • Connection Type: Push-to-Connect|Push-to-Connect
  • Pressure Rating: 290 psi
  • Temperature Rating: -4 to 176 ˚F
  • Finish: Nickel-Plated
  • Configuration: NP PTC METRIC UNION ELBOW
  • Product line: Push-to-Connect — Nickel-Plated Brass
  • Stocked part numbers: 8

Part numbers & options

Part # Size Pack quantities
20206N 4 mm Push-to-Connect × 4 mm Push-to-Connect —
20660N 6 mm Push-to-Connect × 6 mm Push-to-Connect —
20661N 8 mm Push-to-Connect × 8 mm Push-to-Connect Bag 10, Box 50, Case 400
20738N 3 mm Push-to-Connect × 3 mm Push-to-Connect —
20739N 5 mm Push-to-Connect × 5 mm Push-to-Connect —
20740N 14 mm Push-to-Connect × 14 mm Push-to-Connect —
20807N 10 mm Push-to-Connect × 10 mm Push-to-Connect —
20808N 12 mm Push-to-Connect × 12 mm Push-to-Connect —

Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
