Bubble Barb to Male Pipe Elbows in brass. 14 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Connection Type: Bead|MPT
Maximum Operating Pressure: 150 psi
Operating Temperature: -40 to 160 °F
Configuration: Bubble Barb to Male Pipe Elbows
Product line: Hose Barb
Stocked part numbers: 14
Part numbers & options
Part #
Type
Pack quantities

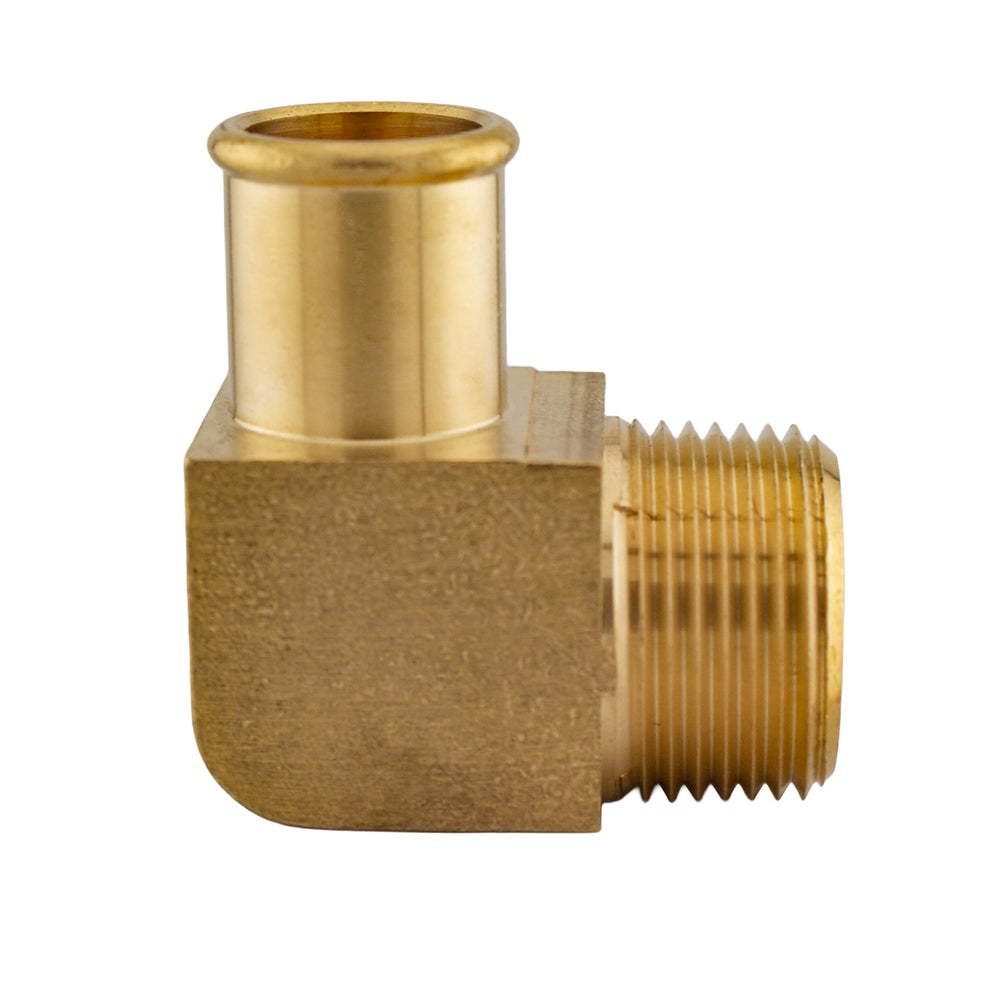

32186
3/8 Bubble Barb x 3/8 Male Pipe 90 Elbow
Bag 25, Case 250
32187
1/2 Bubble Barb x 3/8 Male Pipe 90 Elbow
Bag 25, Case 250
32188
5/8 Bubble Barb x 3/8 Male Pipe 90 Elbow
Bag 25, Case 250
32189
5/8 Bubble Barb x 1/2 Male Pipe 90 Elbow
Case 300
32190
3/4 Bubble Barb x 1/2 Mp 90 Elbow
Bag 10, Case 100
32191
1/2 Bubble Barb x 1/2 Male Pipe 90 Elbow
Case 200
32192
3/4 Bubble Barb x 3/4 Male Pipe 90 Elbow
Bag 10, Case 100
32194
1/2 Bubble Barb x 1/4 Male Pipe 90 Elbow
Case 100
32195
5/8 Bubble Barb x 1/4 Male Pipe 90 Elbow
Case 250
32196

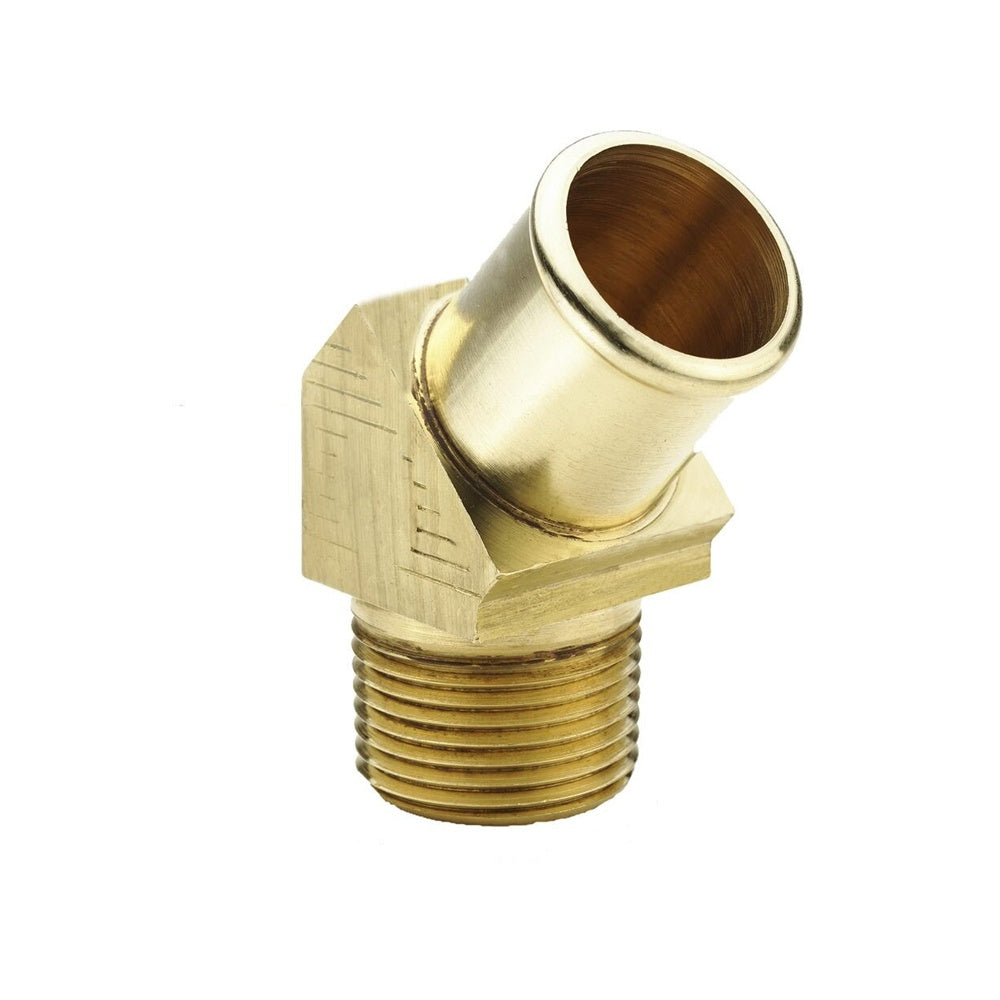

1 x 3/4 45 Elbow - Beaded Hb to Male Pipe
Bag 10, Case 100
HE1B-12E
3/4 x 3/4 90 Elbow - Beaded Hb to Male Pipe
Bag 10, Case 100
HE1B-6B
3/8 x 1/4 90 Elbow - Beaded Hb to Male Pipe
Bag 50, Case 400
HE1B-8B
1/2 x 1/4 90 Elbow - Beaded Hb to Male Pipe
Bag 50, Case 350
HE1B-8C
1/2 x 3/8 90 Elbow - Beaded Hb to Male Pipe
Bag 50, Case 300
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
