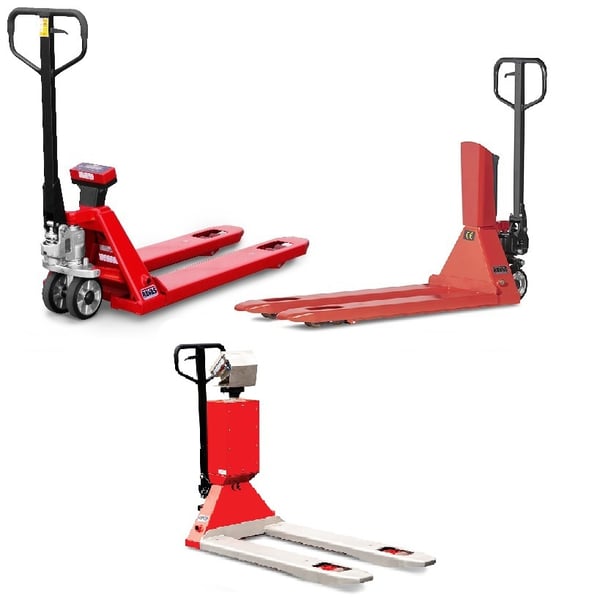

Weighing Hand Pallet Jack Scales

Weighing Hand Pallet Jack Scales

Mfr part #: -RAVAS-320

Store rating 5.0 (3 reviews)
Regular price $3,205.00

Part # H-RAVAS-320

Case / pallet pricing

Shipping calculated at checkout.

100,000+ items Net 30 by application Tax-exempt

Need 50+? Get a volume quote

Need a quote, bulk price or tax-exempt order? Email support@supplytie.com

Freight is estimated in your cart. You can request an exact freight quote there.

Product identifiers

Mfr part #
-RAVAS-320
Supply Tie SKU
H-RAVAS-320
Specs

Specifications

Capacity5000 lb
Fork length48 in
Overall width27.2 in
Lowered fork height3.35 in
Raised fork height7.9 in
Unit weight250 lb
Battery14.8Vdc/5Ah Li-ion

SKU:H-RAVAS-320

RAVAS-320 weighing pallet jack: weighs loads up to 5,000 lb on the forks as you move them, in 2 lb graduations, and is NTEP Class III Legal for Trade.

  • Brand: Ravas USA, Inc.
  • Item #: H-RAVAS-320

Specifications

Model RAVAS-320
Weighing capacity 5,000 lbs
Graduation multirange 2 lbs graduation
Maximum tolerance 0.1% of the load lifted
Protection class Load cells IP67, indicator IP65
Fork length 45 inches
Fork Width 6.69 inches
Fork Height 3.54 inches
Space Underneath Fork 0.86 inches
Maximum Fork Height 7.08 inches
Lifting Height 3.54 inches
Width Over Forks 21.25 inches
Functionality Automatic and manual zero correction, gross/net weighing, automatic and manual tare, totaling with sequence number, connectivity for RAVAS Indicator app, automatic switch-off after 30 minutes of non-use, kg/lb toggle
Certification Legal for Trade NTEP (NTEP Class III)
Power Rechargeable battery

Specifications from the manufacturer.

Specifications by model

Model Capacity (lb) Fork length (in) Overall width (in) Fork height, lowered to raised (in) Unit weight (lb)
-RAVAS-320 5,000 48 27.2 3.35 to 7.9 250

Specifications from the manufacturer's published data for each model.

Shipping & delivered price

Delivered cost by quantity

Delivered cost by quantity
Quantity in cartGoodsDelivered, zone 1Delivered, zone 2Delivered, zone 3Delivered, zone 4
1$3,205.00$3,807.00 ($3,807.00 each)
incl. $602.00 freight
$4,025.50 ($4,025.50 each)
incl. $820.50 freight
$3,920.00 ($3,920.00 each)
incl. $715.00 freight
$4,119.00 ($4,119.00 each)
incl. $914.00 freight
2$6,410.00$7,012.00 ($3,506.00 each)
incl. $602.00 freight
$7,230.50 ($3,615.25 each)
incl. $820.50 freight
$7,125.00 ($3,562.50 each)
incl. $715.00 freight
$7,324.00 ($3,662.00 each)
incl. $914.00 freight
5$16,025.00$16,950.50 ($3,390.10 each)
incl. $925.50 freight
$17,424.00 ($3,484.80 each)
incl. $1,399.00 freight
$17,136.50 ($3,427.30 each)
incl. $1,111.50 freight
$17,592.00 ($3,518.40 each)
incl. $1,567.00 freight
10$32,050.00$33,284.00 ($3,328.40 each)
incl. $1,234.00 freight
$34,334.50 ($3,433.45 each)
incl. $2,284.50 freight
$33,534.00 ($3,353.40 each)
incl. $1,484.00 freight
$34,612.50 ($3,461.25 each)
incl. $2,562.50 freight

Zone 1 = IA, IL, IN, KY, MI, MN, MO, OH, WI, WV · Zone 2 = CA, OR, WA · Zone 3 = AL, AR, CT, DC, DE, FL, GA, KS, LA, MA, MD, ME, MS, NC, ND, NE, NH, NJ, NY, OK, PA, RI, SC, SD, TN, TX, VA, VT · Zone 4 = AZ, CO, ID, MT, NM, NV, UT, WY · other states: enter your ZIP above. Quantity is the number you add to the cart. Includes automatic discounts every buyer gets. Computed from our checkout rates; your cart shows the exact freight before you pay.

Bulk / quote

Pay by card, Shop Pay or Apple Pay. Business accounts: PO checkout and Net 30 once approved. See business accounts.

Since 2023 · Net 30 available for established business accounts, by application

Buying from Uline, Grainger or McMaster? Send us your list and we'll price it line by line, usually within 1 business day.

FAQ

Questions & answers

How much weight can it weigh and in what increments?

It weighs loads up to 5,000 lb in 2 lb graduations, with a maximum tolerance of 0.1% of the load lifted.

Is it legal for trade?

Yes, it is NTEP Class III Legal for Trade.

What are the fork dimensions?

The forks are 45 in. long and 6.69 in. wide, with a width over forks of 21.25 in.

How high do the forks go?

Fork height is 3.54 in. and maximum fork height is 7.08 in.

How is it powered and what features does it have?

It runs on a rechargeable battery. It has tare, gross/net weighing, totaling, kg/lb toggle and switches off after 30 minutes of non-use.

How fast does it ship?

Each order ships from the warehouse that stocks the item. Your cart shows the shipping options and cost for your ZIP before you check out.

Does shipping cost extra?

Freight depends on which supplier ships the item. Your cart shows each shipment's freight and any free-freight threshold before you check out.

Can I get a better price on a larger quantity?

Order online at the listed price; for larger quantities, use "Request a quote for this cart" in your cart (or our Request a Quote form) for a volume price.

How can I pay?

By card at checkout. ACH or check is accepted on invoiced orders, and Net 30 terms are available for approved business accounts.

What if something arrives damaged or wrong?

Tell us within 7 days of delivery, with photos and your order number, and we will replace it or refund it at our cost. Items you no longer want can only come back with prior approval, requested within 30 days of delivery, unopened, with a 20% restocking fee, and the buyer pays the return freight. Custom, opened and hazardous items, and chemicals and adhesives once shipped, cannot be returned. Details are in our Refund & Return Policy.
