CB PTC Right-Angle Flow Control, Metered In in composite polyacetal/brass. 5 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Body Material: Composite Polyacetal/Brass
Connection Type: Push-to-Connect x MPT
Pressure Rating: 150 psi
Temperature Rating: 0 to 160 ˚F
Configuration: CB PTC Right-Angle Flow Control, Metered In
Product line: Push-to-Connect — Composite Body
Stocked part numbers: 5
Part numbers & options
Part #
Type
Pack quantities

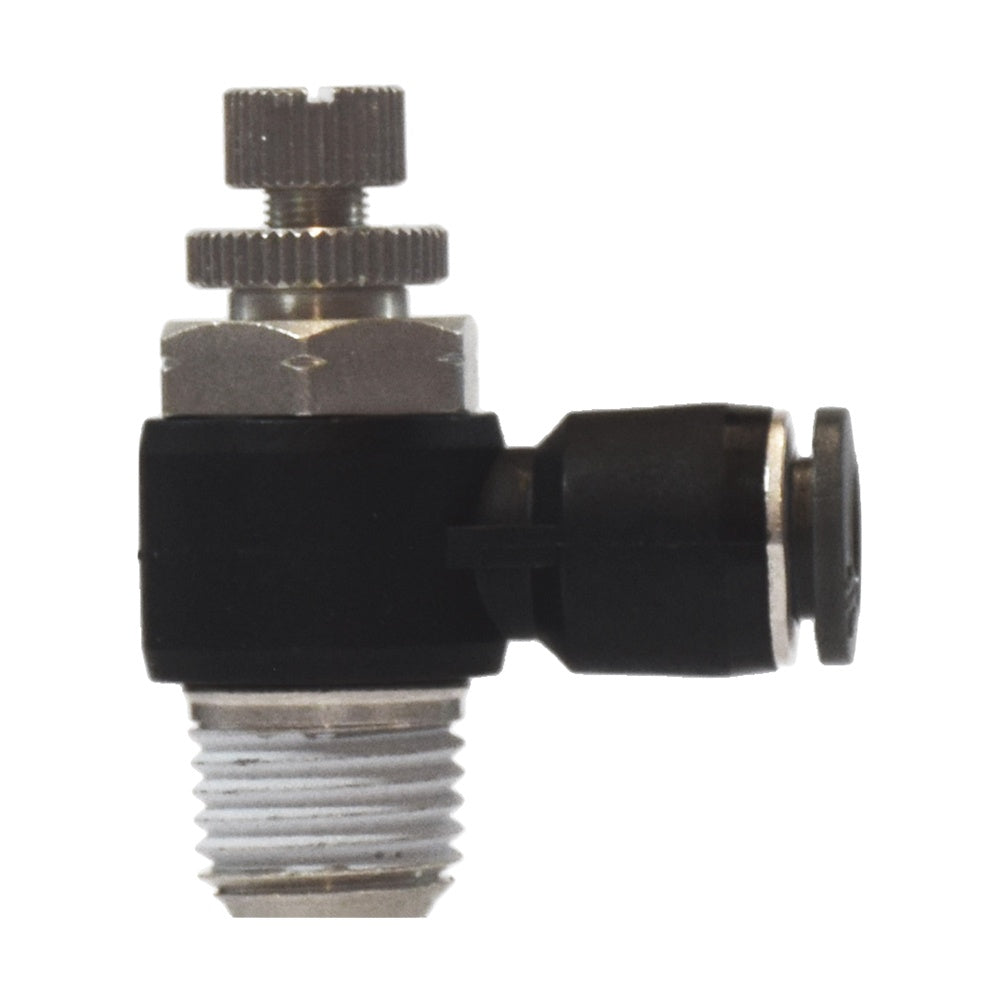

20727C
1/4 x 1/8 Male Elbow with Flow Control Valve
Bag 10, Box 10, Case 150
20728C
1/4X1/4 P-inx M 90FLOW Ctrl Valve
Bag 10, Box 10, Case 150
20780C
3/8 x 1/4 P-in x Male Pipe Angle Valve Meter in
Bag 10
20781C
3/8 x 3/8 P-in x Male Pipe Angle Valve Meter in
Bag 10
20782C
1/2 x 1/2 P-in x Male Pipe Angle Valve Meter in
Bag 5
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
