Male SAE Flare Adapter in brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: Adapter
Maximum Operating Pressure: 150 psi
Configuration: Male SAE Flare Adapter
Product line: Push On Hose Barb
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities
30240
1/4" Push-On Hose Barbed × 1/4" SAE 45-deg Male Flared
Bag 50, Case 500
30241
1/4" Push-On Hose Barbed × 5/16" SAE 45-deg Male Flared
Bag 50, Case 500
30243
3/8" Push-On Hose Barbed × 3/8" SAE 45-deg Male Flared
Bag 20, Case 400
30245
1/2" Push-On Hose Barbed × 1/2" SAE 45-deg Male Flared
Bag 25, Case 250

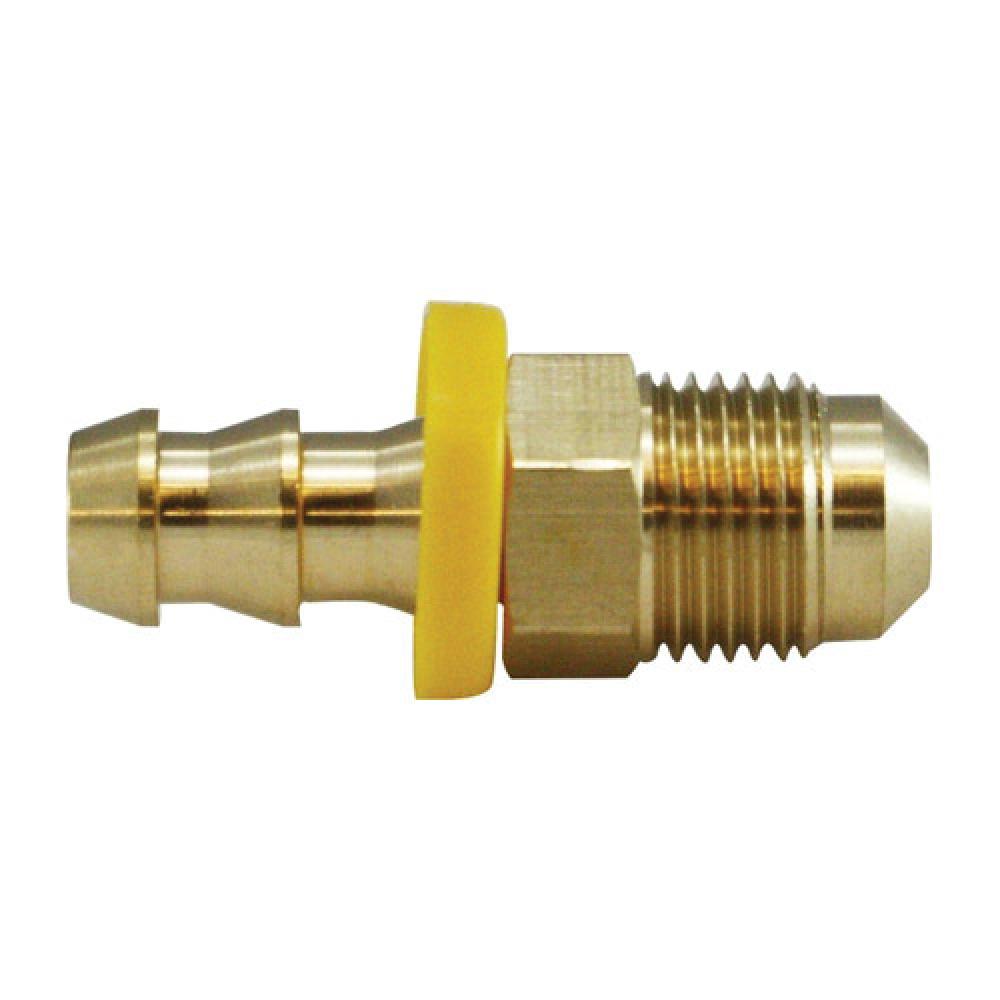

30246
5/8" Push-On Hose Barb × 5/8" 45 deg Male Flared
—
30247
3/4" Push-On Hose Barb × 3/4" 45 deg Male Flared
—
30249
5/16" Push-On Hose Barbed × 5/16" SAE 45-deg Male Flared
Bag 50, Case 700

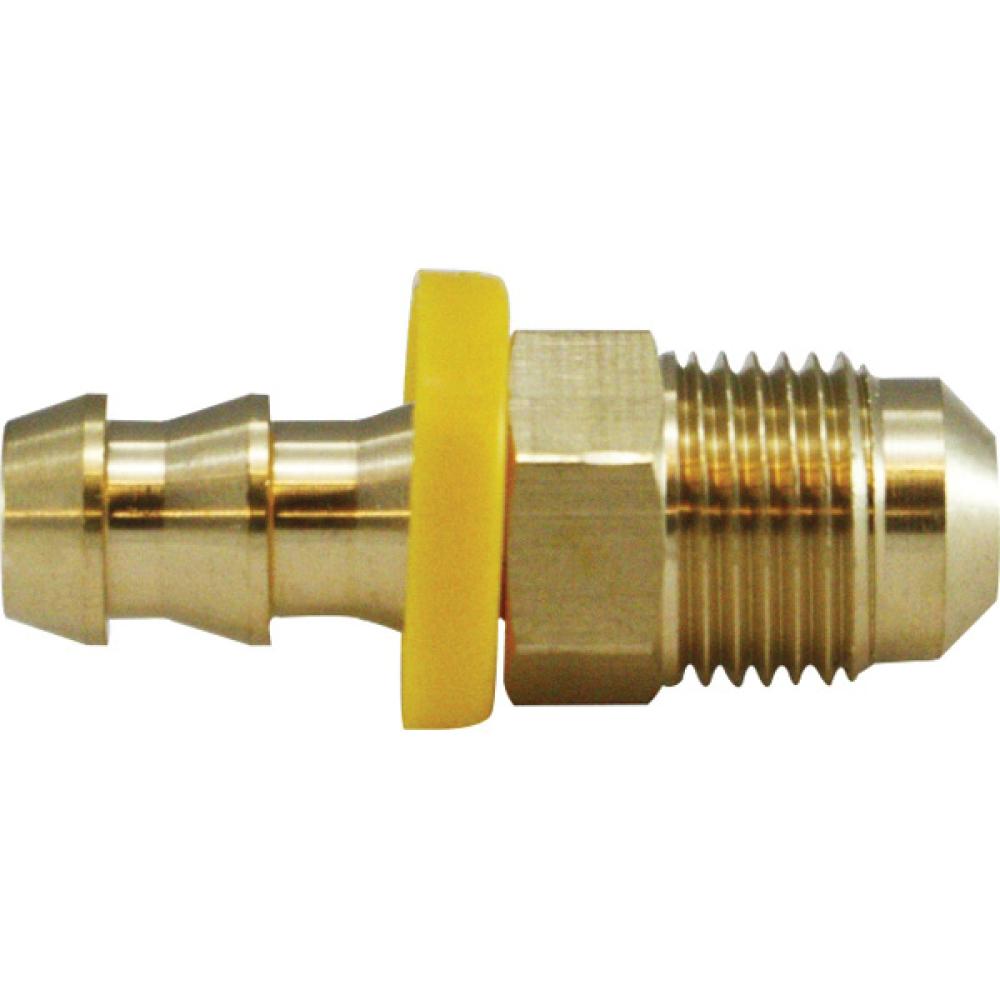

30271
3/8" Push-On Hose Barbed × 5/16" SAE 45-deg Male Flared
Bag 25, Case 800
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
