Reducing 90-Deg Street Elbow in brass. 9 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Fitting Type: 90° Elbow
Connection Type: FPT|MPT
Pressure Rating: 1200 psi
Temperature Rating: -65 to 250 °F
Configuration: Reducing 90-Deg Street Elbow
Product line: Pipe
Stocked part numbers: 9
Part numbers & options
Part #
Type
Pack quantities

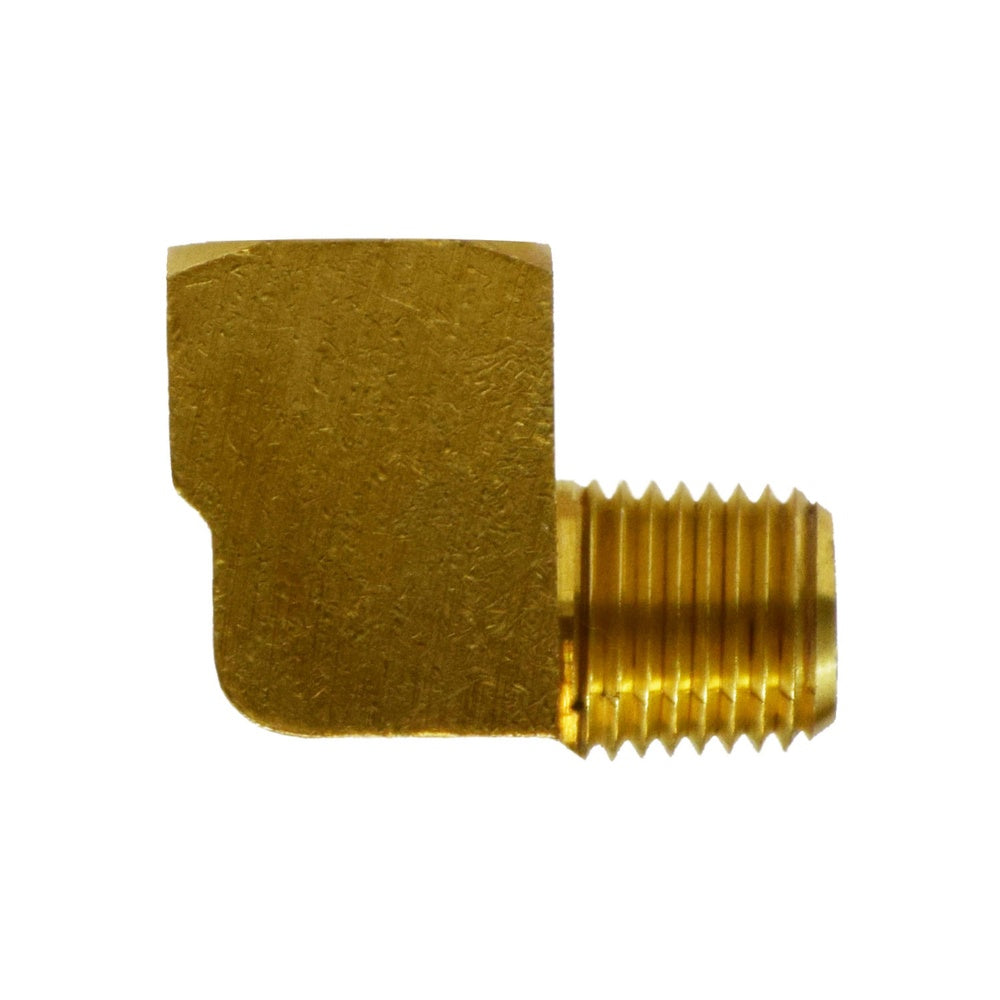

28259
1/8 x 1/16 Bs Reducing St Elbow
—

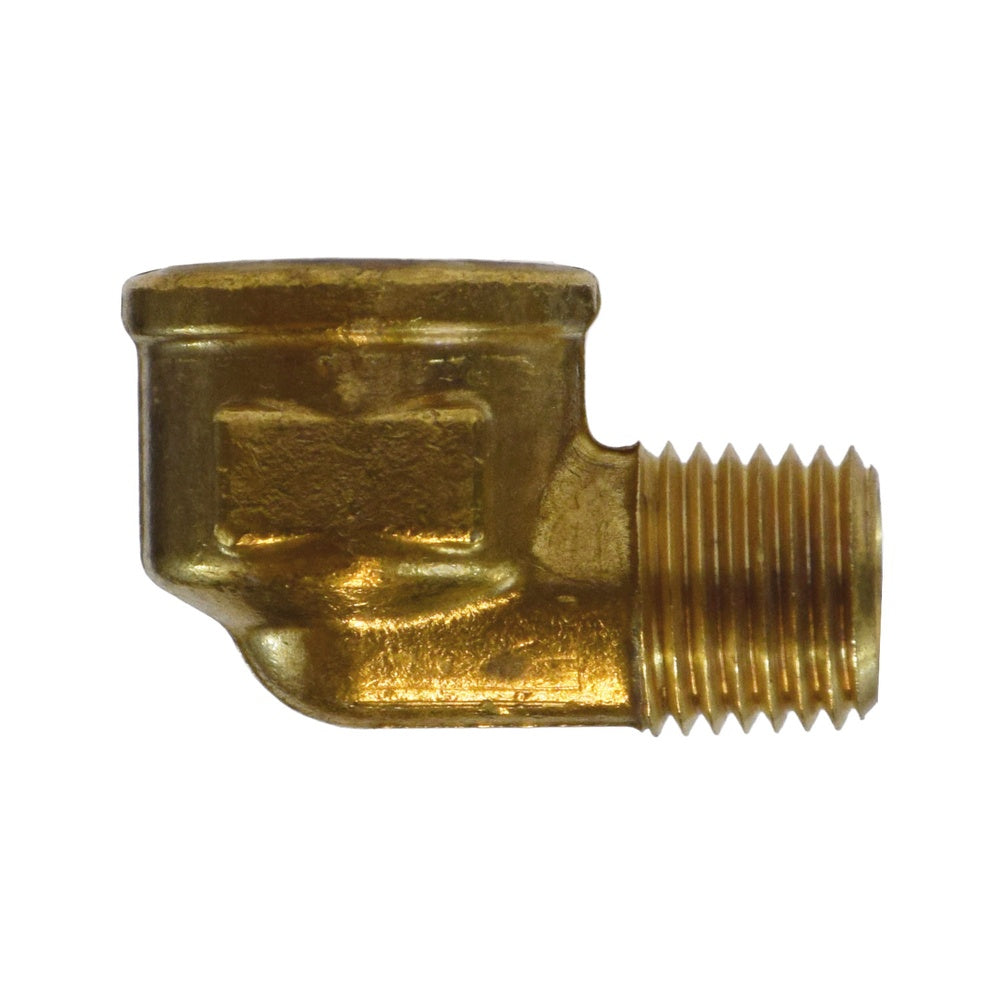

28260
1/8FIP x 1/4MIP Fg Str Elbow
Bag 50, Case 600
28261
1/4FIP x 1/8MIP Fg Str Elbow
Bag 100, Case 1000

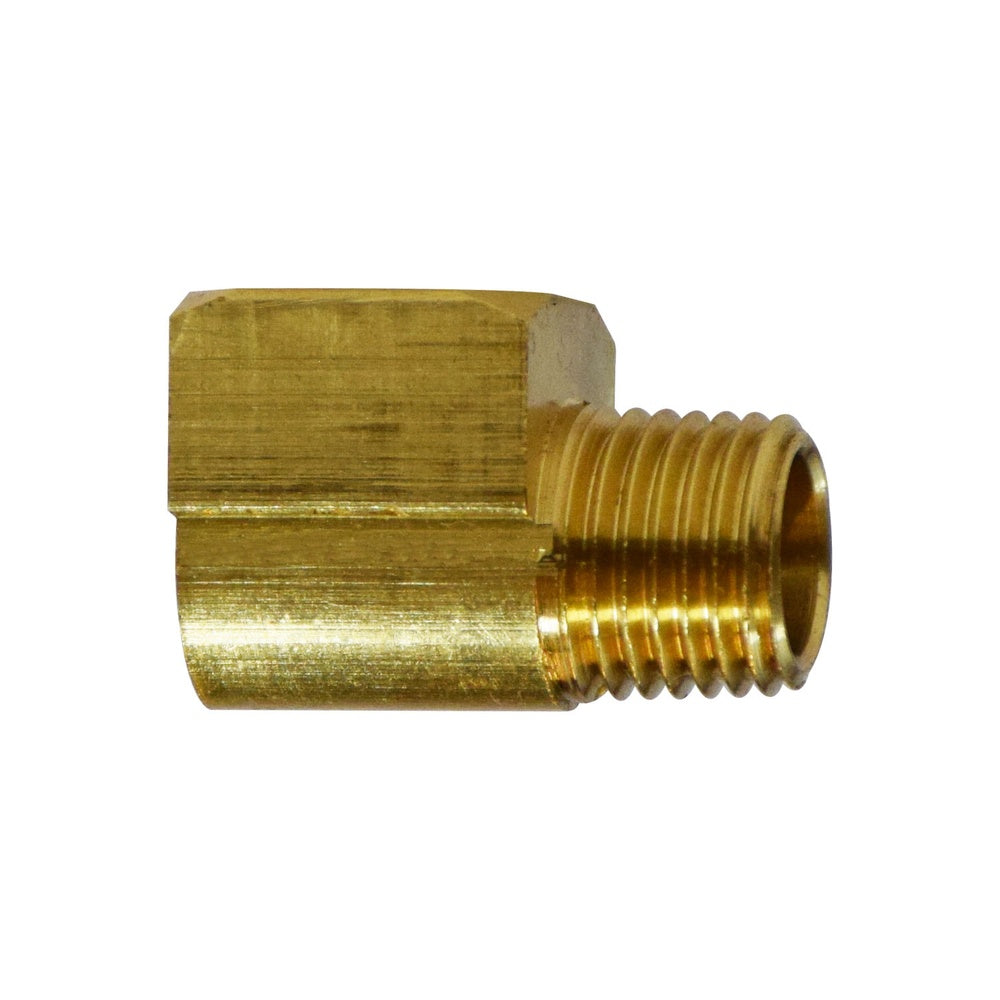

28261B
1/4FIP x 1/8MIP Bs Str Elbow
Bag 60, Case 600
28262
1/4FIP x 3/8MIP Fg Str Elbow
Bag 50, Case 300
28263
3/8FIP x 1/4MIP Fg Str Elbow
Case 500
28264
3/8FIP x 1/2MIP Fg Str Elbow
Bag 25, Case 175
28265
1/2FIP x 3/8MIP Fg Str Elbow
Bag 25, Case 250
28265B
1/2 x 3/8 Bs Reducing St Elbow
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
