Swivel JIC adapters let you make up a joint without twisting the hose or tube. Our 316 stainless swivel range covers elbows, run tees and straight unions.

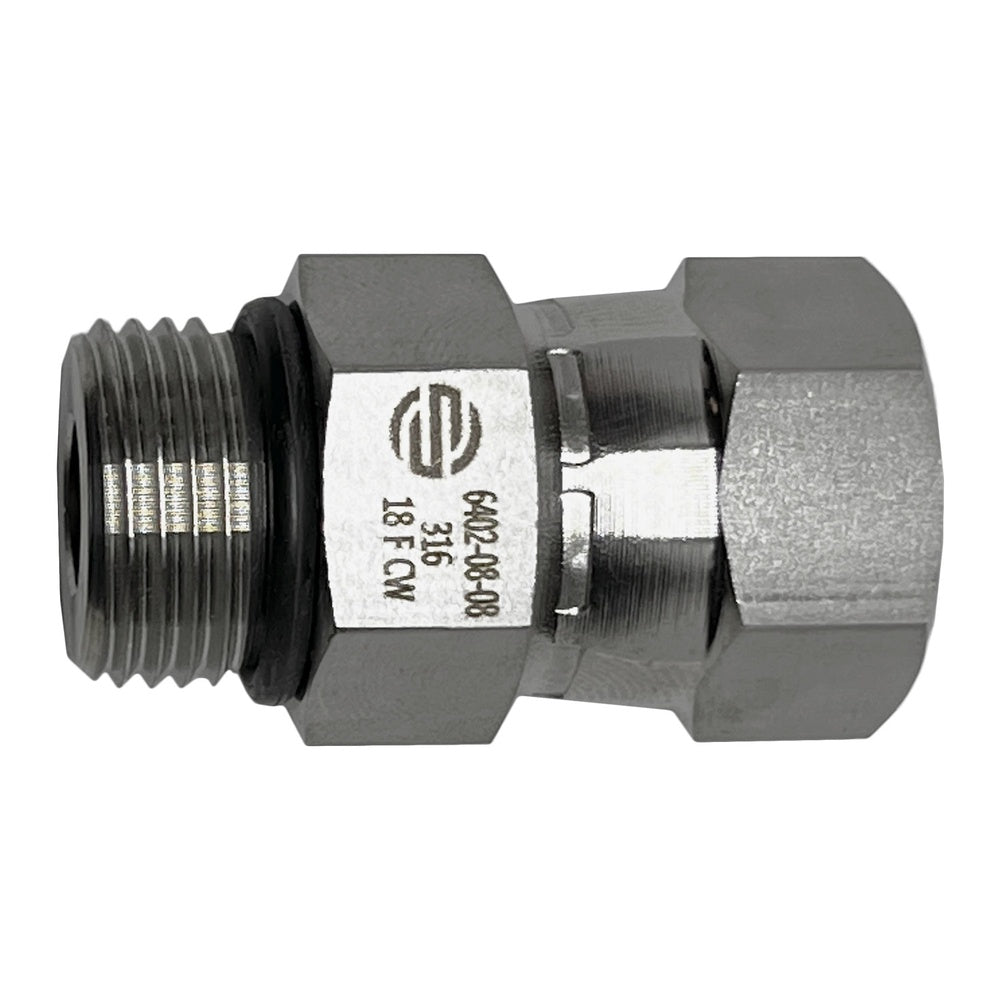

O-Ring to Female JIC 37° Swivel in 316 stainless steel, Our SS6402 series. 8 sizes stocked, 1/4" through 2". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: O-Ring to Female JIC 37° Swivel
Series: SS6402
Product line: SS JIC Swivel Adapters
Size range: 1/4" through 2"
Stocked part numbers: 8
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS6402-04-04
1/4" Female JIC × 1/4" Male JIC
Box 200; Case 400
SS6402-06-06
3/8" Female JIC × 3/8" Male JIC
Box 100; Case 200
SS6402-08-08
1/2" Female JIC × 1/2" Male JIC
Box 68; Case 136
SS6402-12-12
3/4" Female JIC × 3/4" Male JIC
Box 28; Case 56
SS6402-16-16
1" Female JIC × 1" Male JIC
Box 20; Case 40
SS6402-20-20
1-1/4" Female JIC × 1-1/4" Male JIC
—
SS6402-24-24
1-1/2" Female JIC × 1-1/2" Male JIC
—
SS6402-32-32
2" Female JIC × 2" Male JIC
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
