Swivel JIC adapters let you make up a joint without twisting the hose or tube. Our 316 stainless swivel range covers elbows, run tees and straight unions.
Male JIC 37° to Female JIC 37° Swivel 45-Deg Elbow in 316 stainless steel, Our SS6502 series. 6 sizes stocked, 1/4" through 1". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° to Female JIC 37° Swivel 45-Deg Elbow
Series: SS6502
Product line: SS JIC Swivel Adapters
Size range: 1/4" through 1"
Stocked part numbers: 6
Part numbers & sizes
Part #
Size / Configuration
Pack quantities

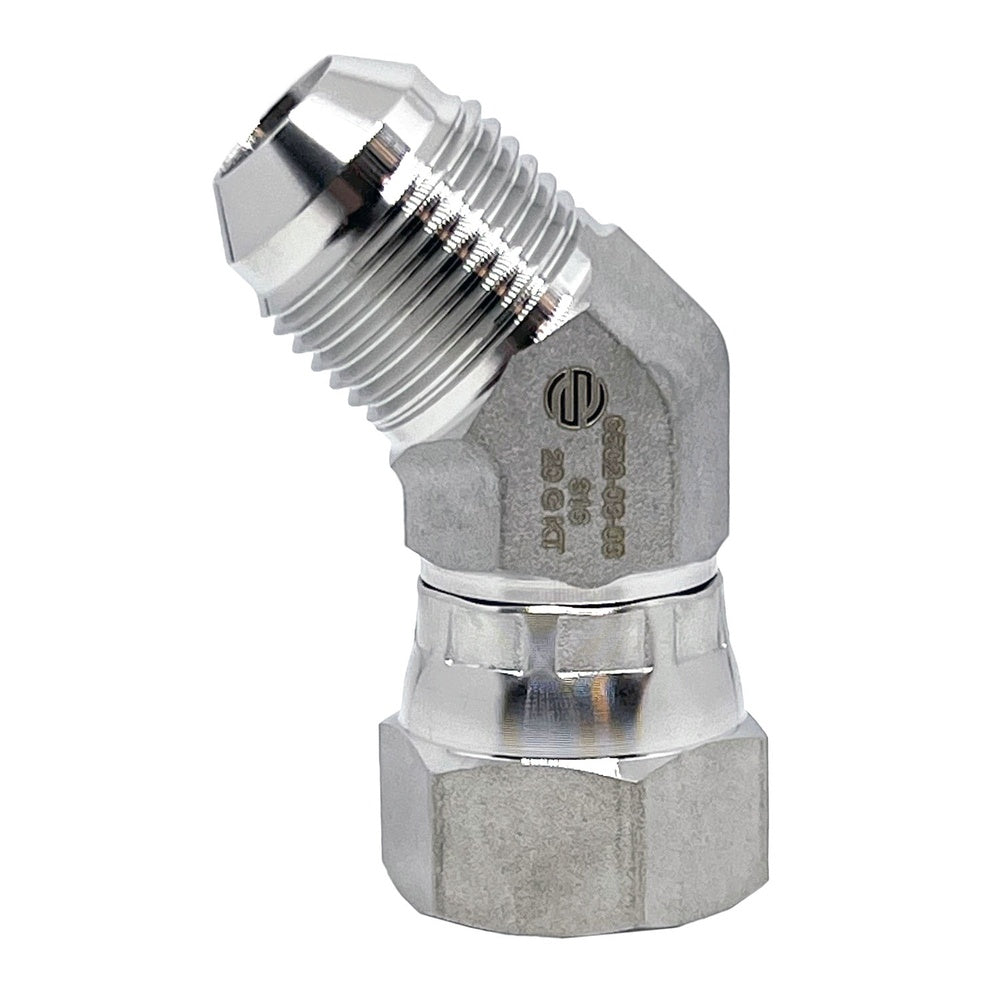

SS6502-04-04
1/4" Male JIC × 1/4" Female JIC
—

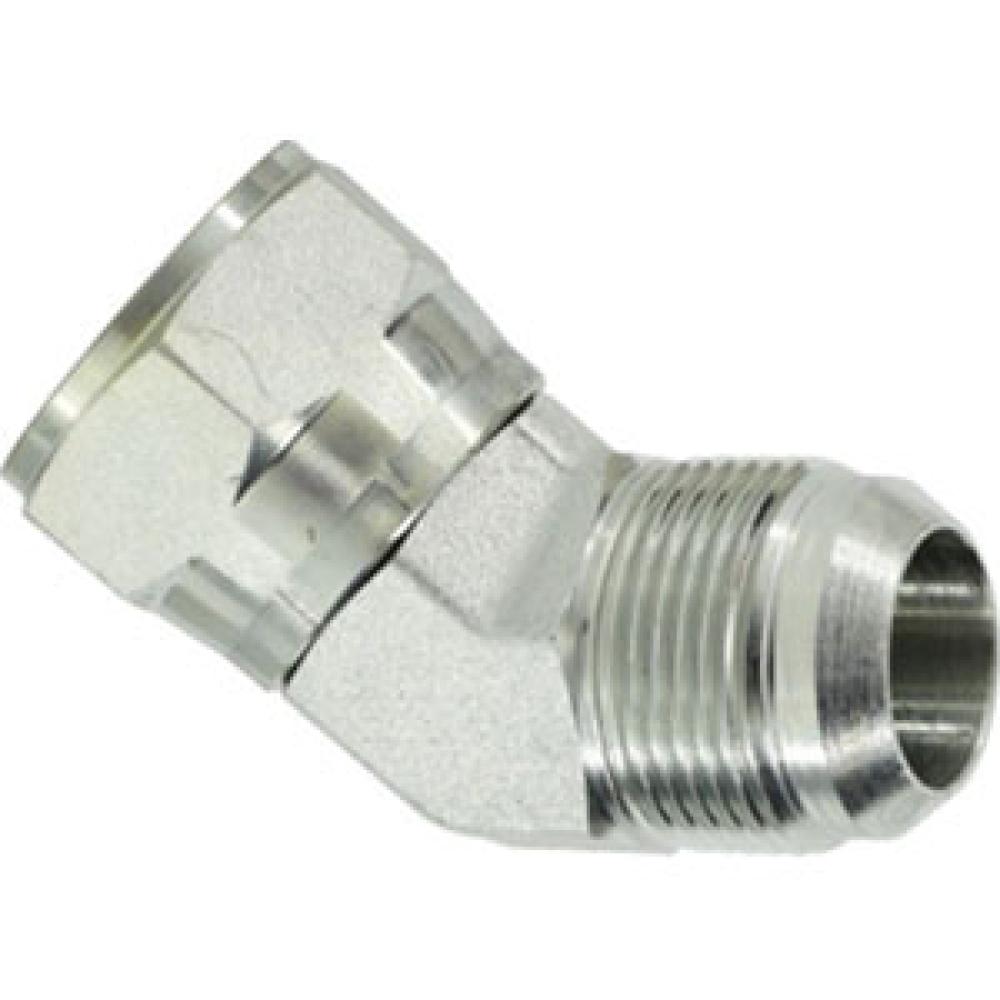

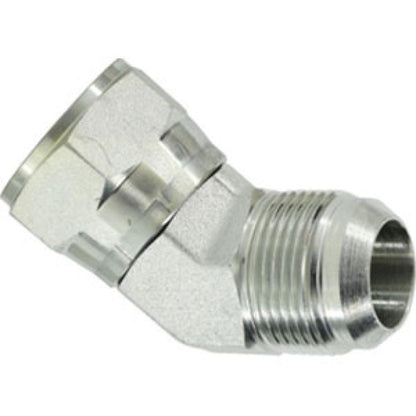

SS6502-06-06
3/8" Male JIC × 3/8" Female JIC
—
SS6502-08-08
1/2" Male JIC × 1/2" Female JIC
—
SS6502-10-10
5/8" Male JIC × 5/8" Female JIC
—
SS6502-12-12
3/4" Male JIC × 3/4" Female JIC
—
SS6502-16-16
1" Male JIC × 1" Female JIC
—
