Swivel JIC adapters let you make up a joint without twisting the hose or tube. Our 316 stainless swivel range covers elbows, run tees and straight unions.

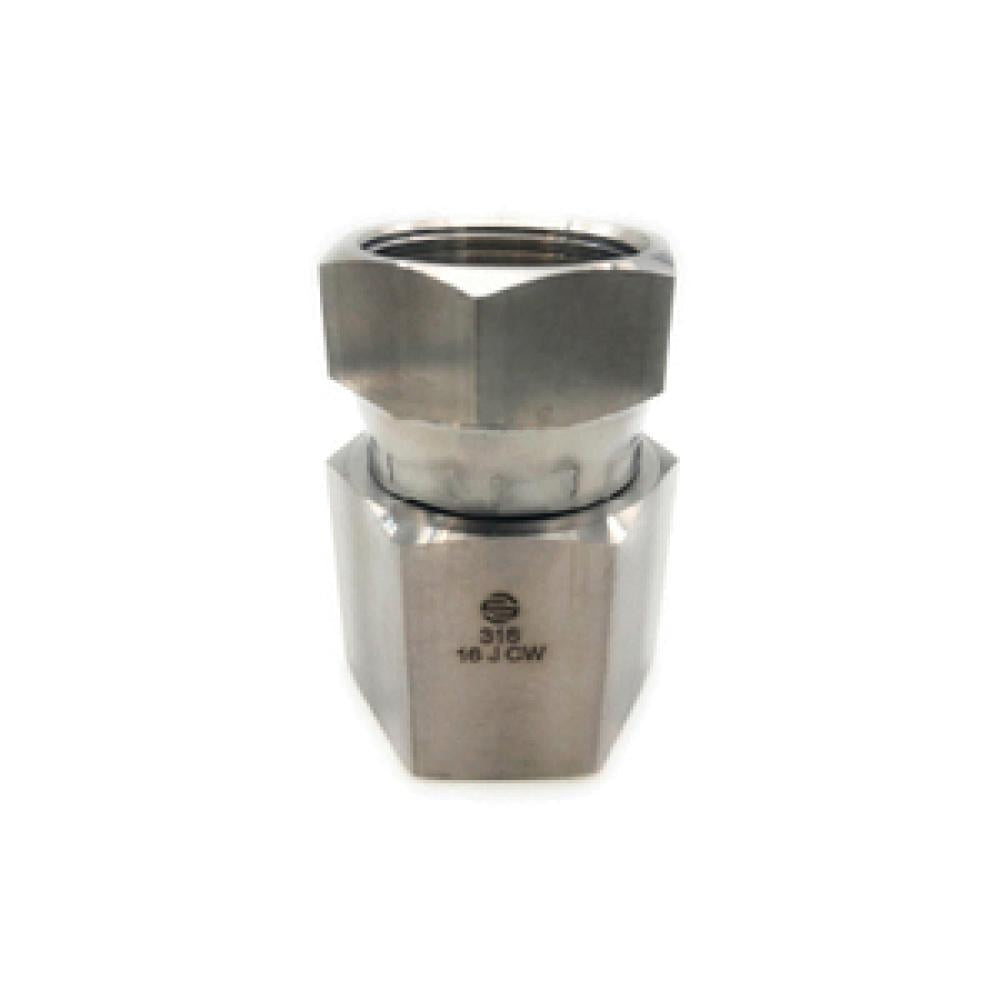

Female Pipe to Female JIC 37° Swivel in 316 stainless steel, Our SS6506 series. 8 sizes stocked, 1/4" through 2". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Female Pipe to Female JIC 37° Swivel
Series: SS6506
Product line: SS JIC Swivel Adapters
Size range: 1/4" through 2"
Stocked part numbers: 8
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS6506-04-04
1/4" Female NPT × 1/4" Female JIC
Box 115; Case 230
SS6506-06-06
3/8" Female NPT × 3/8" Female JIC
Box 60; Case 120
SS6506-08-08
1/2" Female NPT × 1/2" Female JIC
Box 50; Case 100
SS6506-12-12
3/4" Female NPT × 3/4" Female JIC
Box 34; Case 68
SS6506-16-16
1" Female NPT × 1" Female JIC
Box 14; Case 28
SS6506-20-20
1-1/4" Female NPT × 1-1/4" Female JIC
—
SS6506-24-24
1-1/2" Female NPT × 1-1/2" Female JIC
—
SS6506-32-32
2" Female NPT × 2" Female JIC
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
