Our 316 stainless JIC 37° adapter line covers the full range of union, pipe, bulkhead and tee configurations used in hydraulic and instrumentation plumbing.
Male JIC 37° to Male O-Ring in 316 stainless steel, Our SS6400 series. 19 sizes stocked, 1/4" through 2". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° to Male O-Ring
Series: SS6400
Product line: SS JIC Adapters
Size range: 1/4" through 2"
Stocked part numbers: 19
Part numbers & sizes
Part #
Size / Configuration
Pack quantities

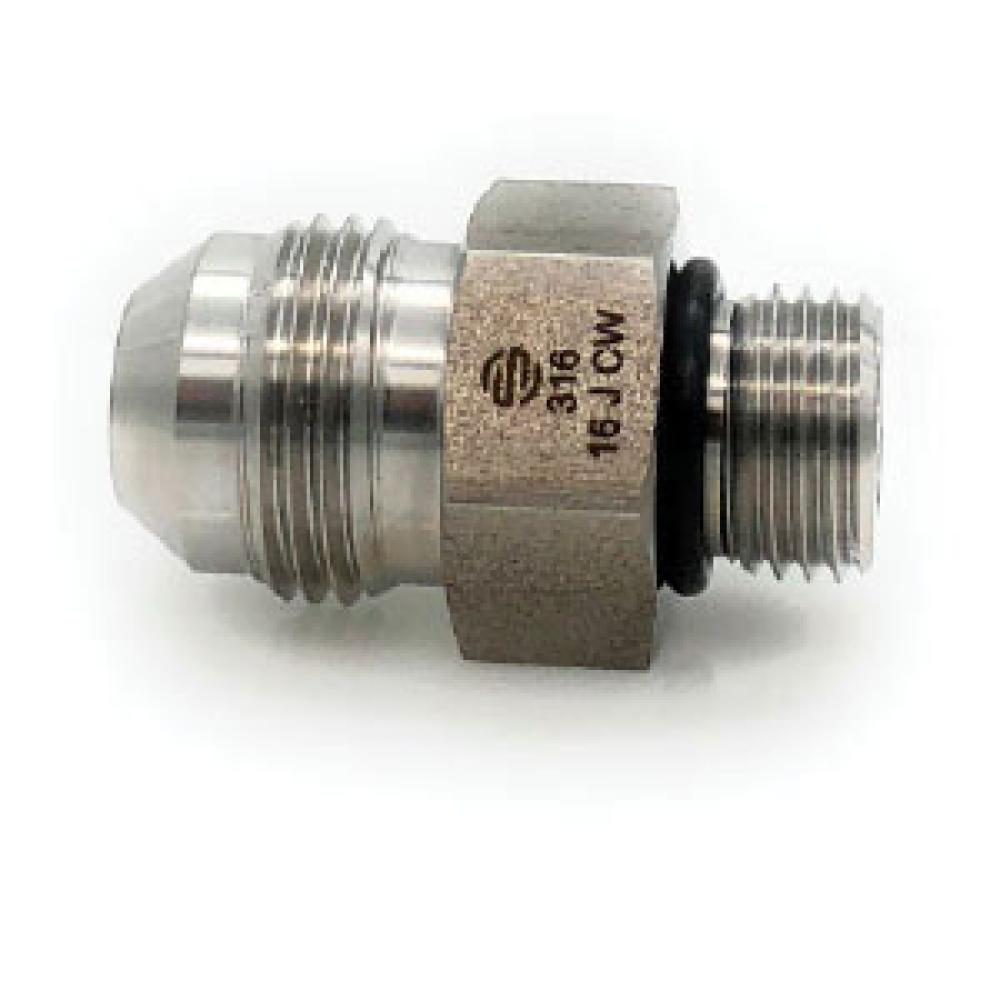

SS6400-04-04
1/4" Male JIC × 1/4" Male SAE O-Ring Boss
Box 252; Case 504
SS6400-04-06
1/4" Male JIC × 3/8" Male SAE O-Ring Boss
Box 100; Case 200
SS6400-04-08
1/4" Male JIC × 1/2" Male SAE O-Ring Boss
—
SS6400-06-05
3/8" Male JIC × 5/16" Male SAE O-Ring Boss
—
SS6400-06-06
3/8" Male JIC × 3/8" Male SAE O-Ring Boss
Box 100; Case 200
SS6400-06-08
3/8" Male JIC × 1/2" Male SAE O-Ring Boss
Box 100; Case 200
SS6400-06-10
3/8" Male JIC × 5/8" Male SAE O-Ring Boss
Box 60; Case 120
SS6400-08-06
1/2" Male JIC × 3/8" Male SAE O-Ring Boss
Box 100; Case 200
SS6400-08-08
1/2" Male JIC × 1/2" Male SAE O-Ring Boss
Box 110; Case 220
SS6400-08-10
1/2" Male JIC × 5/8" Male SAE O-Ring Boss
Box 60; Case 120
SS6400-08-12
1/2" Male JIC × 3/4" Male SAE O-Ring Boss
Box 40; Case 80
SS6400-12-08
3/4" Male JIC × 1/2" Male SAE O-Ring Boss
Box 40; Case 80
SS6400-12-12
3/4" Male JIC × 3/4" Male SAE O-Ring Boss
Box 36; Case 72
SS6400-12-16
3/4" Male JIC × 1" Male SAE O-Ring Boss
Box 21; Case 42
SS6400-16-12
1" Male JIC × 3/4" Male SAE O-Ring Boss
Box 24; Case 48
SS6400-16-16
1" Male JIC × 1" Male SAE O-Ring Boss
Box 24; Case 48
SS6400-20-20
1-1/4" Male JIC × 1-1/4" Male SAE O-Ring Boss
—
SS6400-24-24
1-1/2" Male JIC × 1-1/2" Male SAE O-Ring Boss
—
SS6400-32-32
2" Male JIC × 2" Male SAE O-Ring Boss
—
