Our 316 stainless JIC 37° adapter line covers the full range of union, pipe, bulkhead and tee configurations used in hydraulic and instrumentation plumbing.

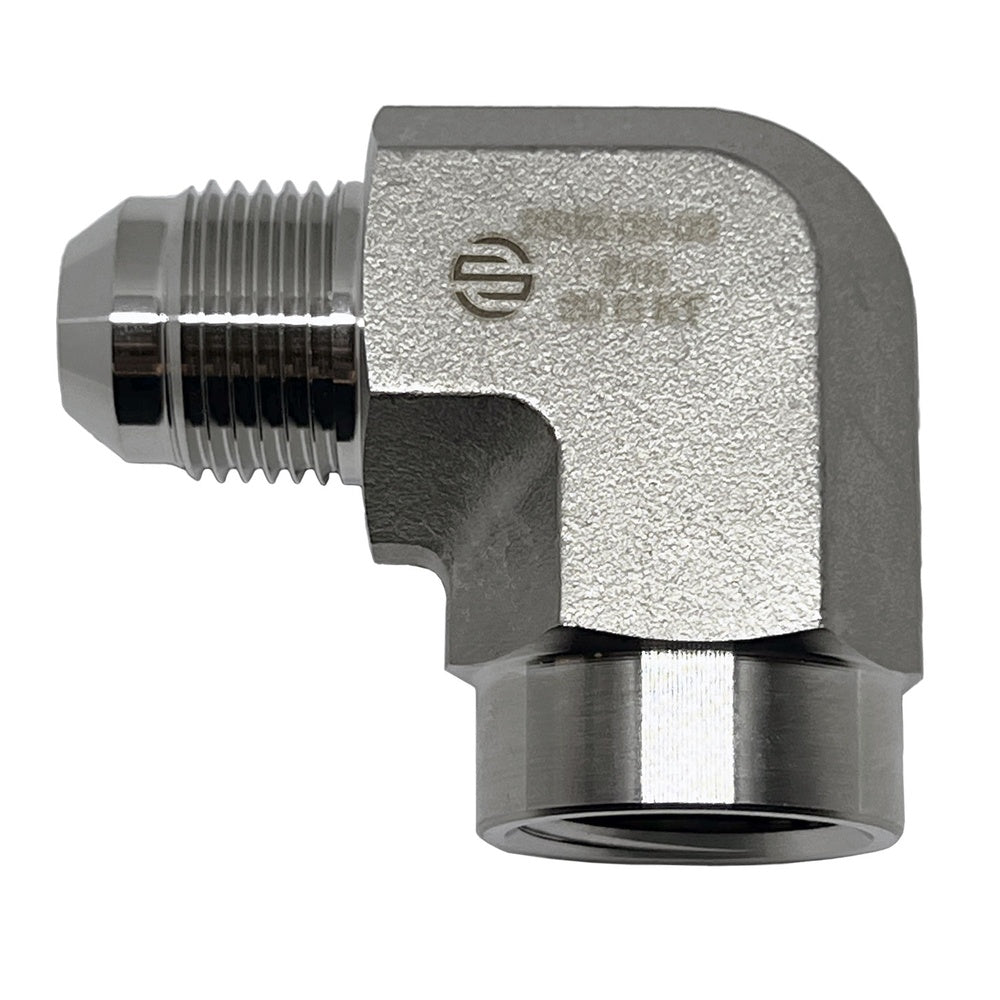

Male JIC 37° to Female Pipe Elbow in 316 stainless steel, Our SS2502 series. 9 sizes stocked, 1/4" through 1-1/4". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° to Female Pipe Elbow
Series: SS2502
Product line: SS JIC Adapters
Size range: 1/4" through 1-1/4"
Stocked part numbers: 9
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS2502-04-04
1/4" Male JIC × 1/4" NPT
Box 160; Case 320
SS2502-06-06
3/8" Male JIC × 3/8" NPT
—
SS2502-08-04
1/2" JIC × 1/4" Female NPT
Case 200
SS2502-08-06
1/2" JIC × 3/8" Female NPT
Case 200
SS2502-08-08
1/2" Male JIC × 1/2" NPT
—
SS2502-10-08
5/8" JIC × 1/2" Female NPT
Case 200
SS2502-12-12
3/4" Male JIC × 3/4" NPT
—
SS2502-16-16
1" Male JIC × 1" NPT
—
SS2502-20-20
1-1/4" Male JIC × 1-1/4" NPT
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
