Our 316 stainless JIC 37° adapter line covers the full range of union, pipe, bulkhead and tee configurations used in hydraulic and instrumentation plumbing.
Male JIC 37° to Female Pipe in 316 stainless steel, Our SS2405 series. 8 sizes stocked, 1/4" through 1-1/4". Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: 316 stainless steel
Configuration: Male JIC 37° to Female Pipe
Series: SS2405
Product line: SS JIC Adapters
Size range: 1/4" through 1-1/4"
Stocked part numbers: 8
Part numbers & sizes
Part #
Size / Configuration
Pack quantities
SS2405-04-04
1/4" Male JIC × 1/4" NPT
Box 140; Case 280
SS2405-06-04
3/8" Male JIC × 1/4" NPT
Box 144; Case 288
SS2405-06-06
3/8" Male JIC × 3/8" NPT
Box 108; Case 216
SS2405-08-06
1/2" Male JIC × 3/8" NPT
Box 50; Case 100
SS2405-08-08
1/2" Male JIC × 1/2" NPT
Box 50; Case 100

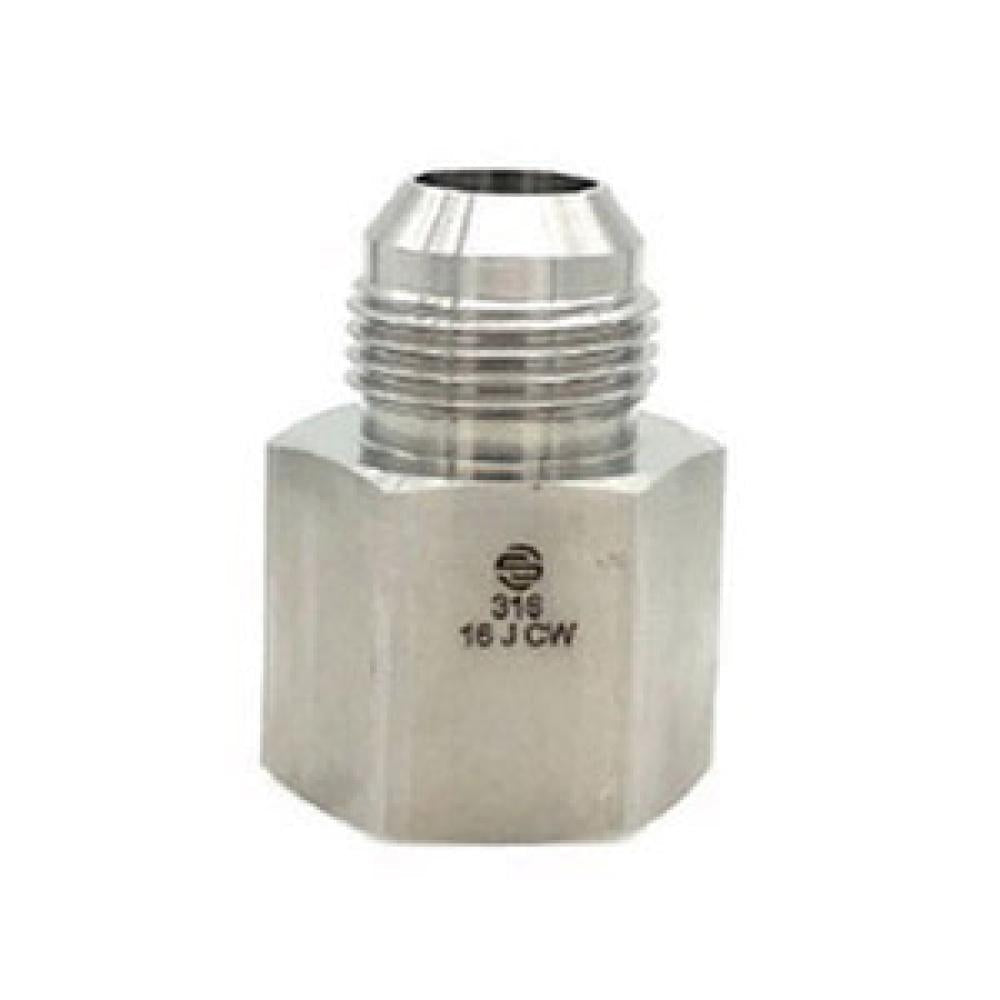

SS2405-12-12
3/4" Male JIC × 3/4" NPT
Box 35; Case 70
SS2405-16-16
1" Male JIC × 1" NPT
Box 20; Case 40
SS2405-20-20
1-1/4" Male JIC × 1-1/4" NPT
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on orders of $2,000 or more. Minimum order $75.
