Hose to Ball End Swivels in brass. 11 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Fitting Type: Connector
Connection Type: HB|FNPSM
Maximum Operating Pressure: 150 psi
Operating Temperature: -40 to 160 ˚F
Configuration: Hose to Ball End Swivels
Product line: MAF/USA HOSE BARB
Stocked part numbers: 11
Part numbers & options
Part #
Size
Pack quantities

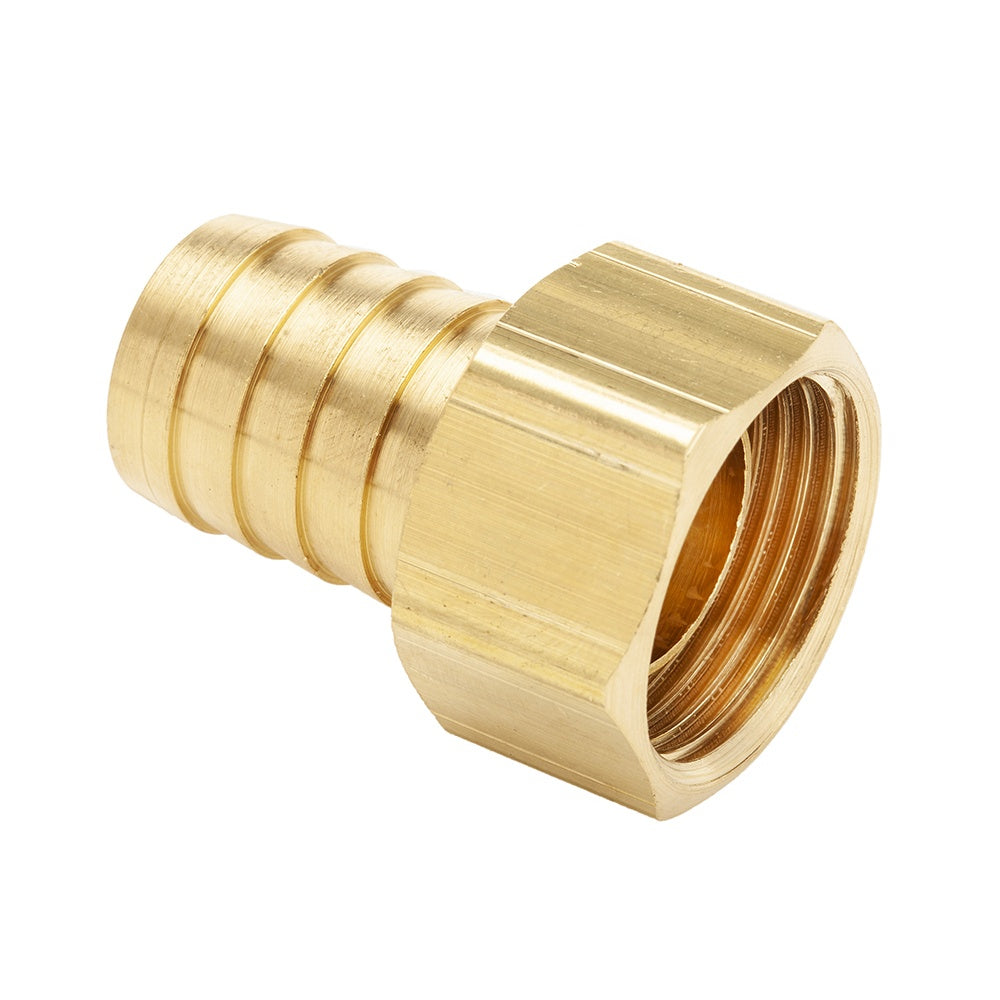

29FS-22
1/8" Hose Barb × 1/8" Female NPSM Swivel
—
29FS-32
3/16" Hose Barb × 1/8" Female NPSM Swivel
—
29FS-34
3/16" Hose Barb × 1/4" Female NPSM Swivel
—
29FS-42
1/4" Hose Barb × 1/8" Female NPSM Swivel
—
29FS-44
1/4" Hose Barb × 1/4" Female NPSM Swivel
Case 1000
29FS-46
1/4" Hose Barb × 3/8" Female NPSM Swivel
—
29FS-54
5/16" Hose Barb × 1/4" Female NPSM Swivel
—
29FS-64
3/8" Hose Barb × 1/4" Female NPSM Swivel
—
29FS-66
3/8" Hose Barb × 3/8" Female NPSM Swivel
—
29FS-68
3/8" Hose Barb × 1/2" Female NPSM Swivel
—
29FS-88
1/2" Hose Barb × 1/2" Female NPSM Swivel
—
